B6 V3 80W 6A Lipo Charger

Feature:



B6 V3 is an upgrade version of imax B6.It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries,high power battery LiHV and smart battery I,II,III. Max charger power 80W,discharger power 10W, max charge current 6A  discharger current 2A with high charging efficiency.



Overview:



>Practical for variety of batteries: 1-6s Lilon/LiPo/LiFe/LiHV,1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I,II,III.

>Multi-Function:Charge, Balancer, Discharge,Terminal Voltage Control,Lithium Battery capacity & voltage checking,Battery Internal Resistance checking,Data storage and loading, Digital  Power.

>Maximum Safety:Low Input Voltage setting,Capacity limit, Processing Time limit,Temperature Threshold.

>2 in 1 Charging cable with XT60 Plug and Deans Plug which suit for most batteries charging



Features:



-Microprocessor controlled

-High-Power and high-performance circuit.

-Automatically identify the cells counts of lithium battery section.

-Check lithium battery internal resistance.Let you know when a cell is going bad.

-Support LiHV battery

-Support smart battery I,II,III.(need optional smart battery charging cable)

-Maximum Safety: Low Input Voltage setting. Capacity limit,  processing time limit, Temperature Threshold.

-Terminal Voltage Control.

-Individual cell balancing, cell voltage Monitoring

-Data storage and loading (Store up to 20 packs in memory)

-Battery break in and cycling.

-Digital Power



Specification:



* Operating voltage range: DC11.0-18.0 Volt/ AC to DC adapter (DC11.0-18.0V/ 6A)

* Max.charge power 80W

* Max.discharge power 10W

* Charge Current Range: 0.1-6.0A

* Discharge current range:0.1-2.0A

* Current drain for balancing: 400mAH/cell

* LiIon/LiPo/LiFe/ LiHV cells:1-6 cells

* NiCd/NiMH cells: 1-15cells

* Pb battery voltage: 2~20v

* Smart Battery: I II III.

* Net Weight: 220g

* Dimensions: 135x86x27mm

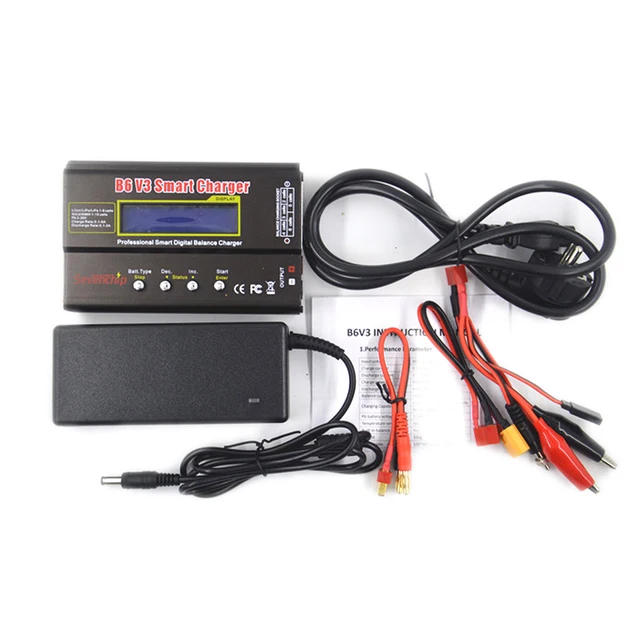

Package included:



1 x  B6 V3 charger

1 x Charging cable with XT60 and T-plug

1 x Universal crocodile clip

1 x PB charger cable

1 x Manual
