JHEMCU Betaflight F4-XSD

QWinOut Betaflight F4-XSD Flight Controller Board 2-6S Built-in OSD 5V 9V BEC for Mini 150 130 FPV Racing Drone Support SBUS PPM RX Quadcopter Models

Note:
When received the flight controller, please don't be busy welding the wire first, First step, Please connect to the computer with USB, make sure the LED of the flight control is flashing, it can be connected with the computer BF software normally, then go to the welding installation.

If the flight control does not respond after welding, we will always consider it to be caused by human damage. In this case, we will not accept returns or exchanges. Hope you can understand and forgive.

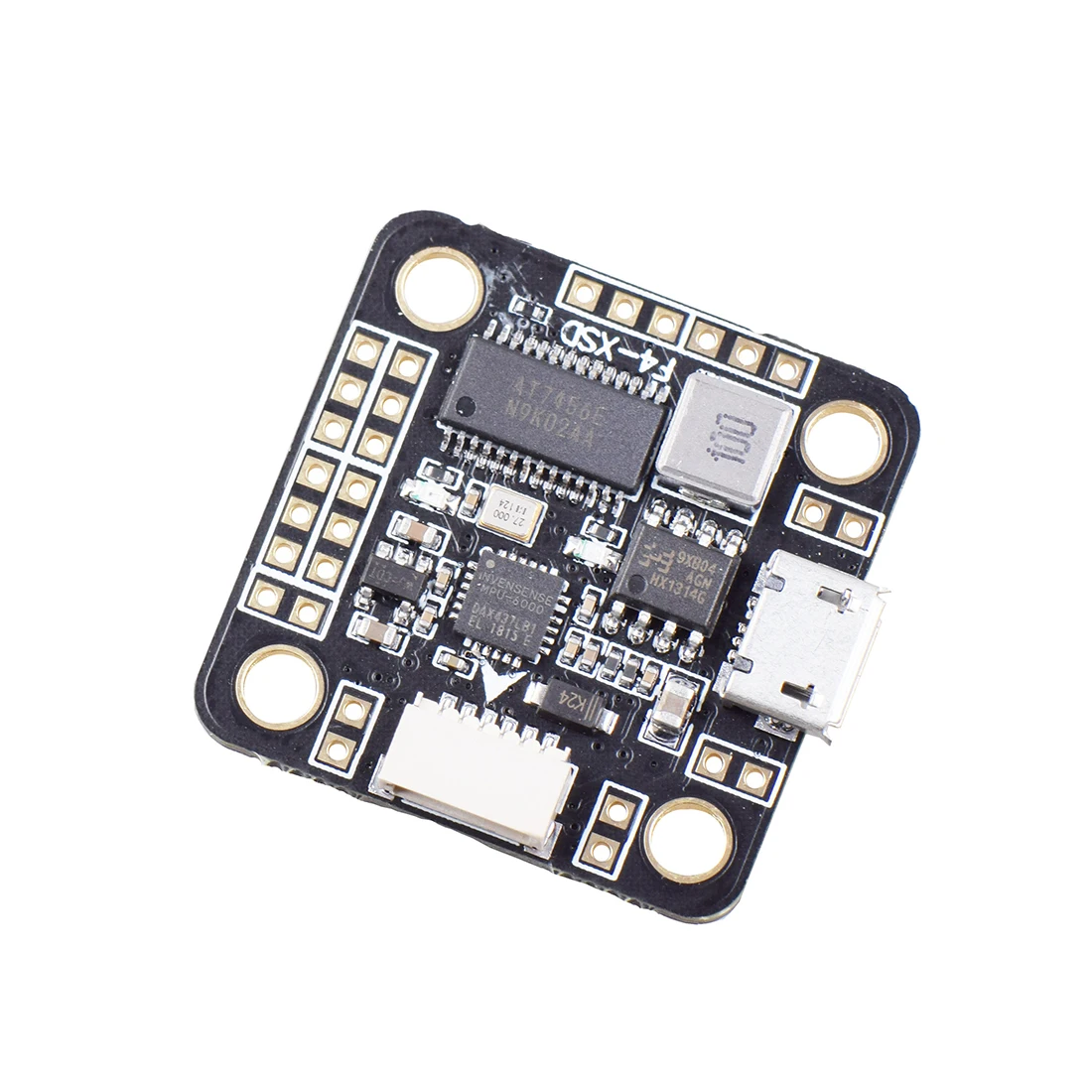

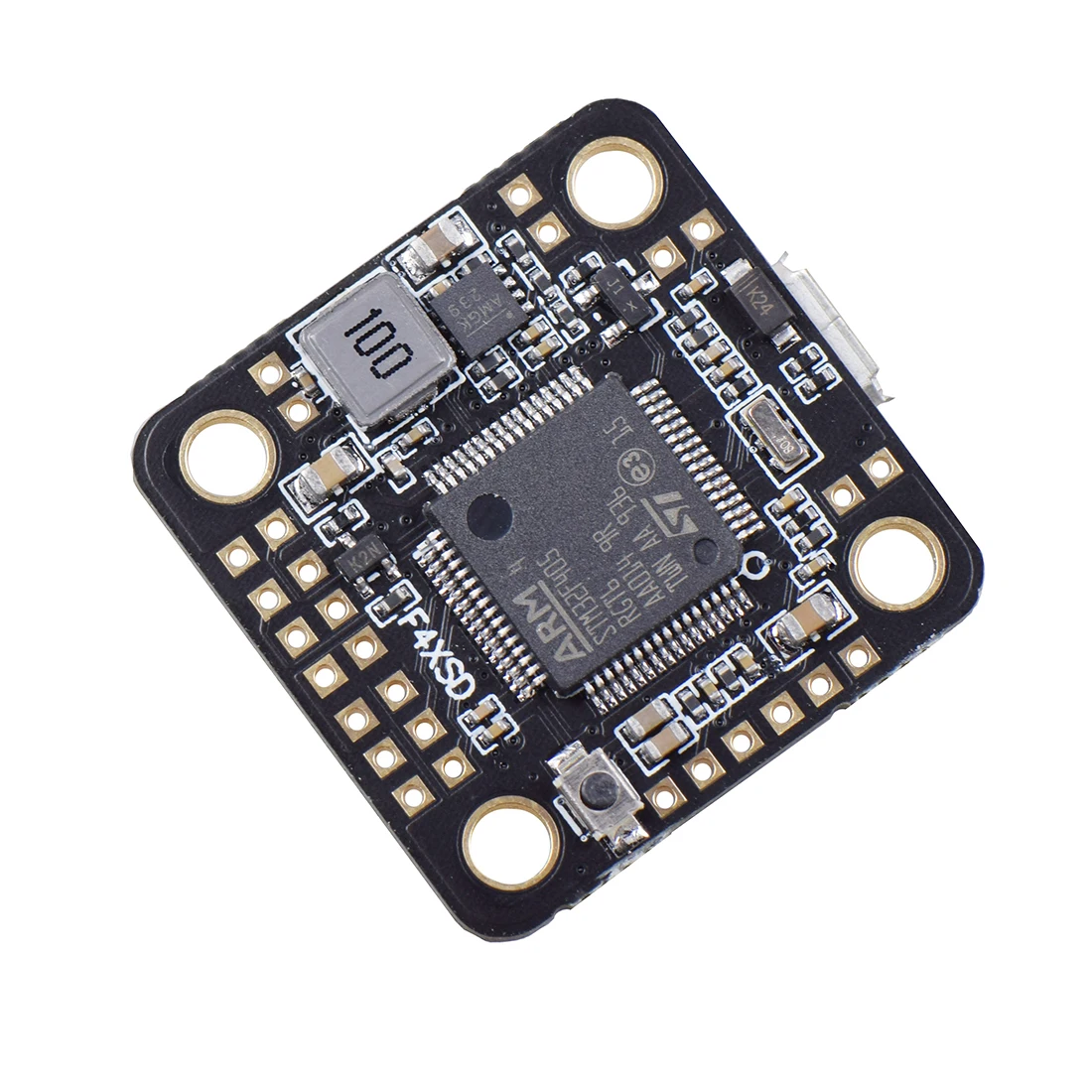

F4-XSD
The F4 flight controller equipped with MPU6000 has faster acceleration response; integrated 5V / 2A, 9V / 3A BEC, and integrated OSD.
Input voltage 2S-6S, comes with two independent BEC, supports mainstream PPM, SBUS, DSM2 / DSMX, IBUS and other receivers on the market.
LED_STRIP interface, active buzzer interface, support DSHOT ESC.

1.Specially designed for small through-machines, suitable for racks with a size of less than 150mm, especially 130mm racks can play the advantages of small and full-featured;
2. This board provides all functions, weight is only 4.2 grams, size is only 27 * 27MM, fixed hole distance is 20MM (M3 hole position);

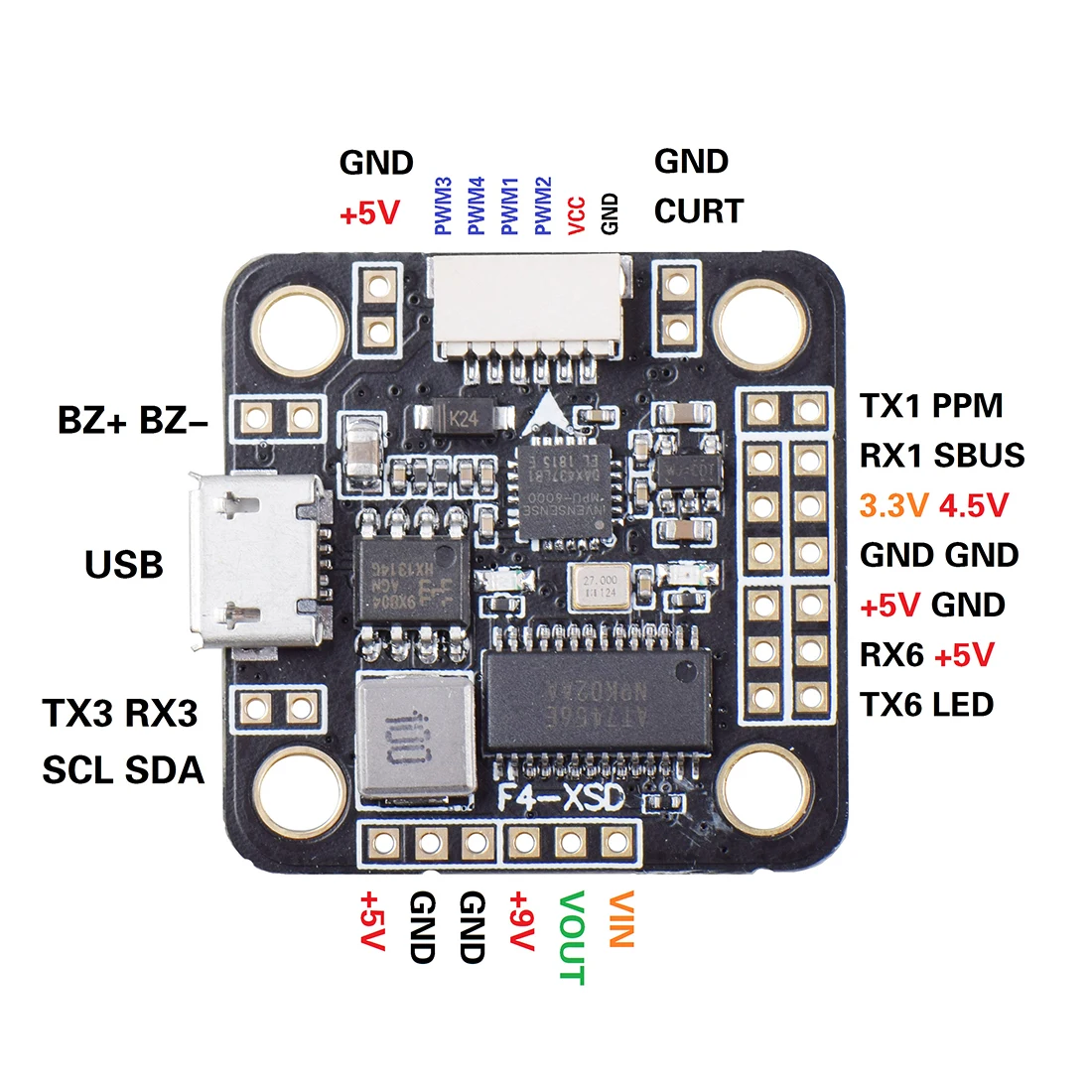

Receiver configuration:
When DSM / IBUS receiver input, please configure RX1 as the input interface
SBUS, receiver input, please configure RX1 as the input interface.

Features:

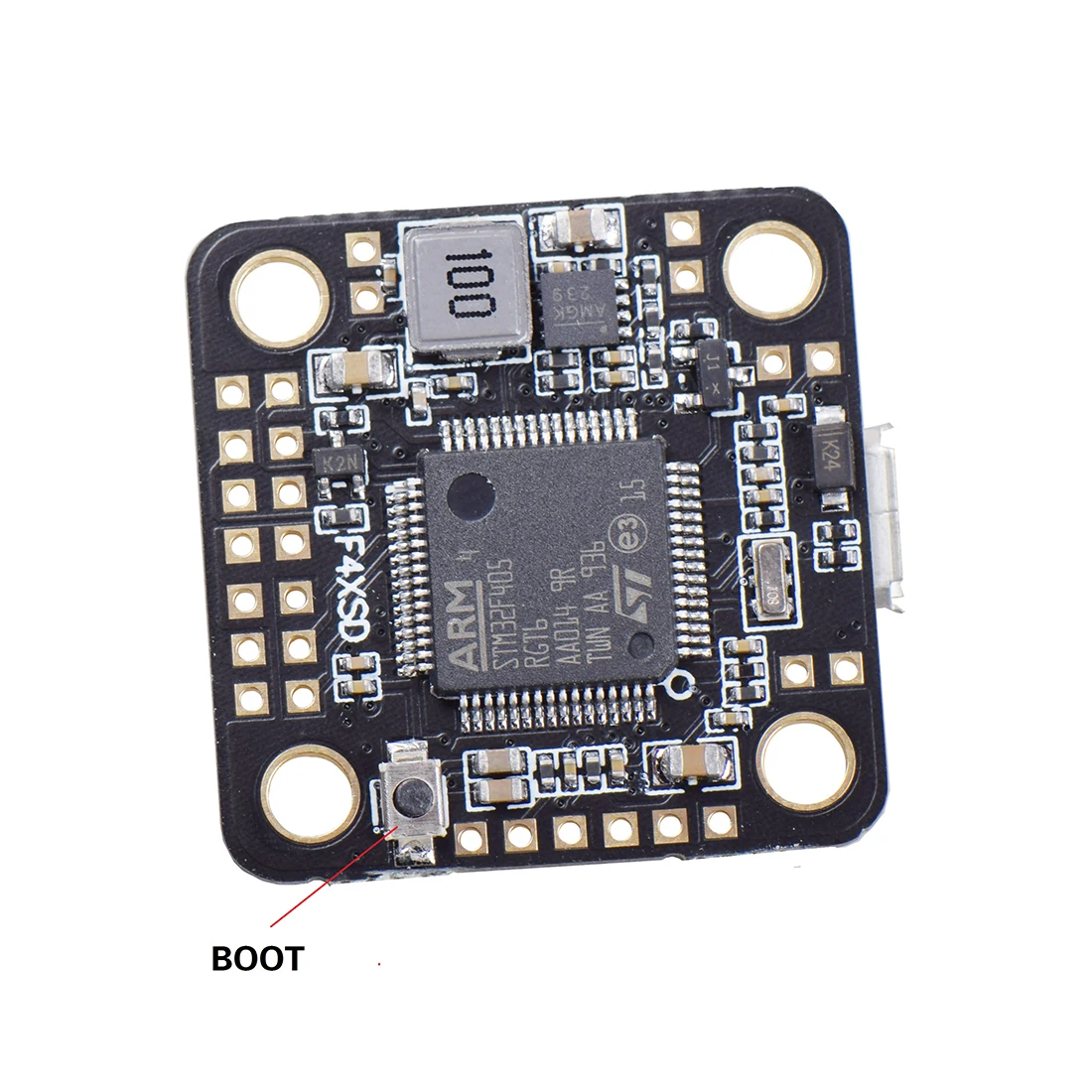

CPU: STM32F405RGT6
Sensor: MPU6000 three-axis accelerometer / three-axis gyroscope (SPI connection)
Power supply: 2-6S battery input
BEC: 5V / 2A, 9V / 3A
Receiver: Support Sbus or serial RX interface, Support Spektrum 1024/2048, SBUS, IBUS, etc.
Support 3.3v Spektrum satellite receiver
Support PPM receiver
Buzzer interface
Supports programmable LED_Strip
Support BLheli suite ESC programming
Built-in voltage detection and alarm
Built-in OSD function, BF online tuning
Dimensions: 27 * 27MM, screw hole distance 20 * 20MM, M2.5
Weight 4.2g
