DasMikro Das87 Nano 7CH FrSky D8 Receiver Integrated 2 Tank Mixed Bi-directional ESC

Description:

This RC receiver unit is FrSky D8 compatible. It offers full 7-channel support in ultra-light weight and micro size. It is ideal for 1/87 RC conversion.

Features:

1. FrSky 2.4GHz D8 compatible

2. 7 channel support

3. Integrated two standalone Bi-directional ESC (maximum 1A currency)

4. Integrated one Single-directional ESC (maximum 3A currency)

4. Micro size (16.0 x 10.0 x 2.5mm)

5. Operating Voltage 3.0V – 4.2V

6. Weight: 0.5g

Output Usage:

Servo signal output:

CH1: (Steering)

CH2: (Throttle)

CH3: (Spare, normally use to control the sound unit or light unit)

CH4: (Spare, normally use to control the sound unit or light unit)

CH7: (Spare)

Bi-directional ESC output:

OUT1/OUT2:  connect a brushed motor, controlled by CH2 signal from transmitter

OUT3/OUT4:  connect a brushed motor, controlled by CH6 signal from transmitter

Single-directional ESC or LED output:

OUT5: connect a brushed motor or LEDs, controlled by CH5 signal from transmitter

Compatible Transmitters:

FrSky Stick-type transmitter

Jumper Stick-type transmitter like T8SG/T12/T12PRO/T16/T16PRO

Any OPENTX and Deviation Stick-type transmitter installed with CC2500 RF module

Package Included:

1 x Receiver

Bind:

Power on the receiver, LED will flash slowly. Wait 15 seconds and the LED will flash quickly, this means the receiver is in paring mode. Now you could operate your transmitter to start the bind operation. Once the bind is successful, the LED on receiver will be on. Power off both your transmitter and receiver then power them on again, now the receiver should be controlled by your transmitter.

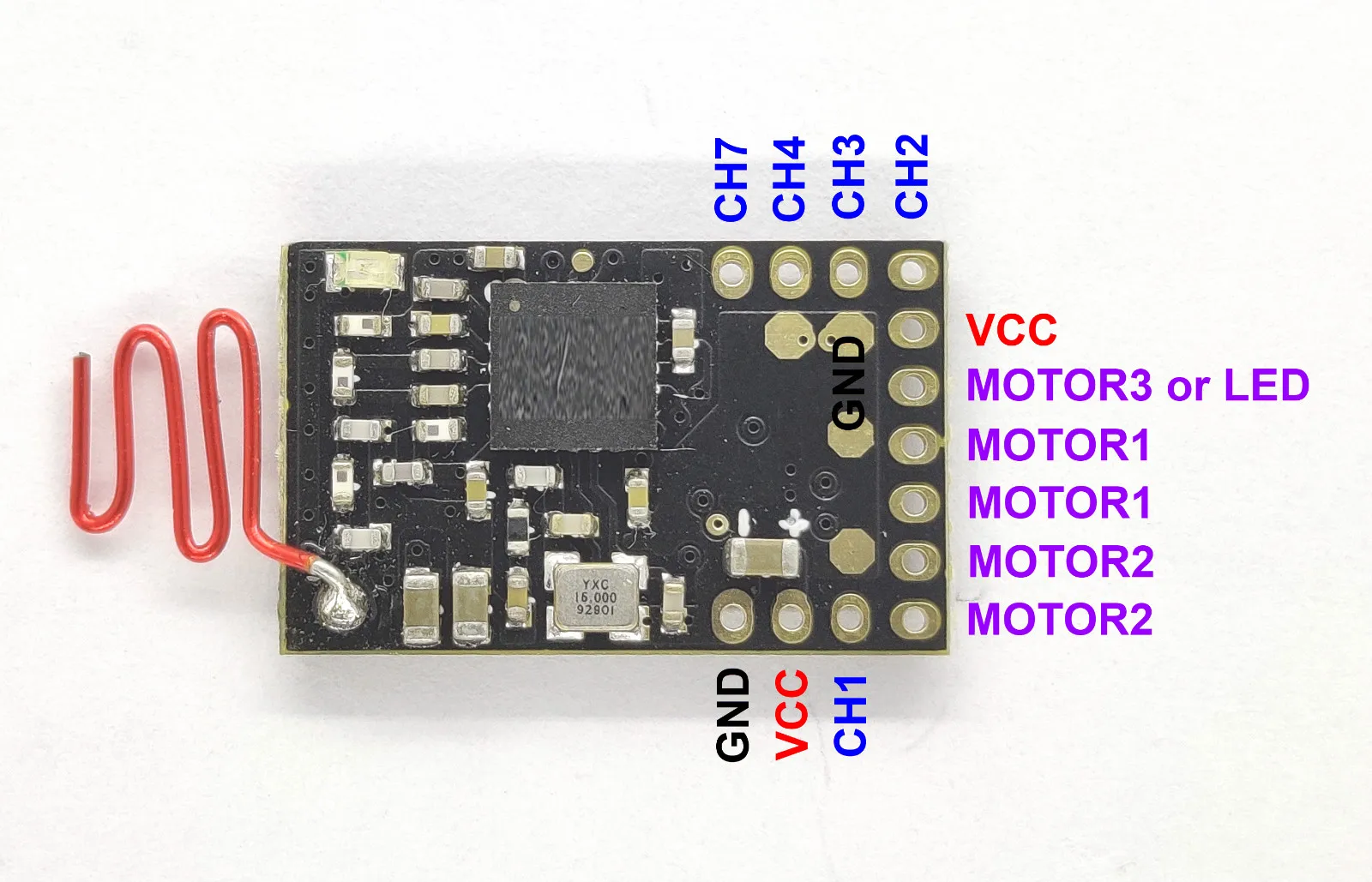

Wire Connection:
