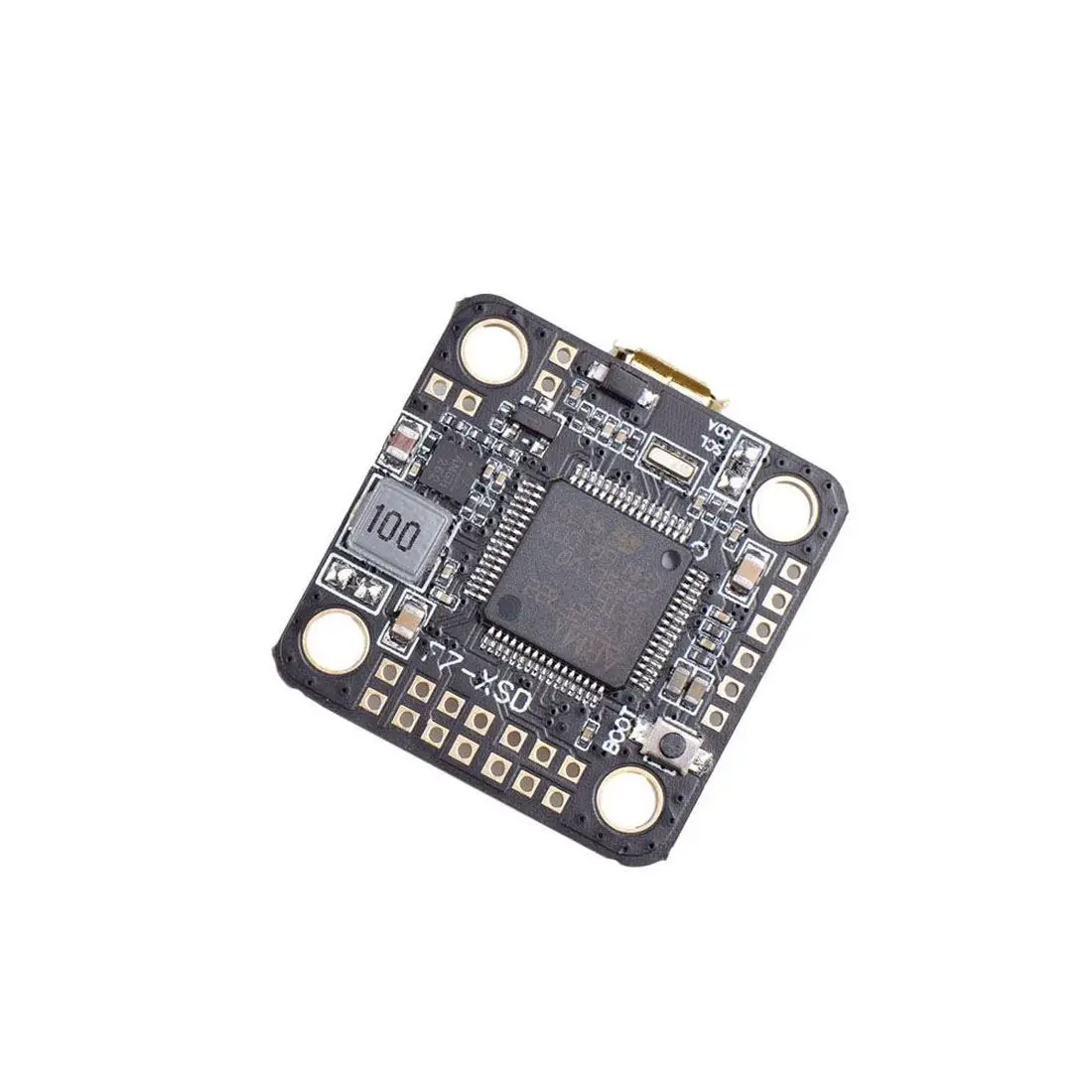

JHEMCU FEICHAO Betaflight F7-XSD 6S

FEICHAO Betaflight F7-XSD 2-6S Flight Controllers OSD 5V 9V BEC FPV Four Axle 20mm For RC Models Multicopter Drone Accessories

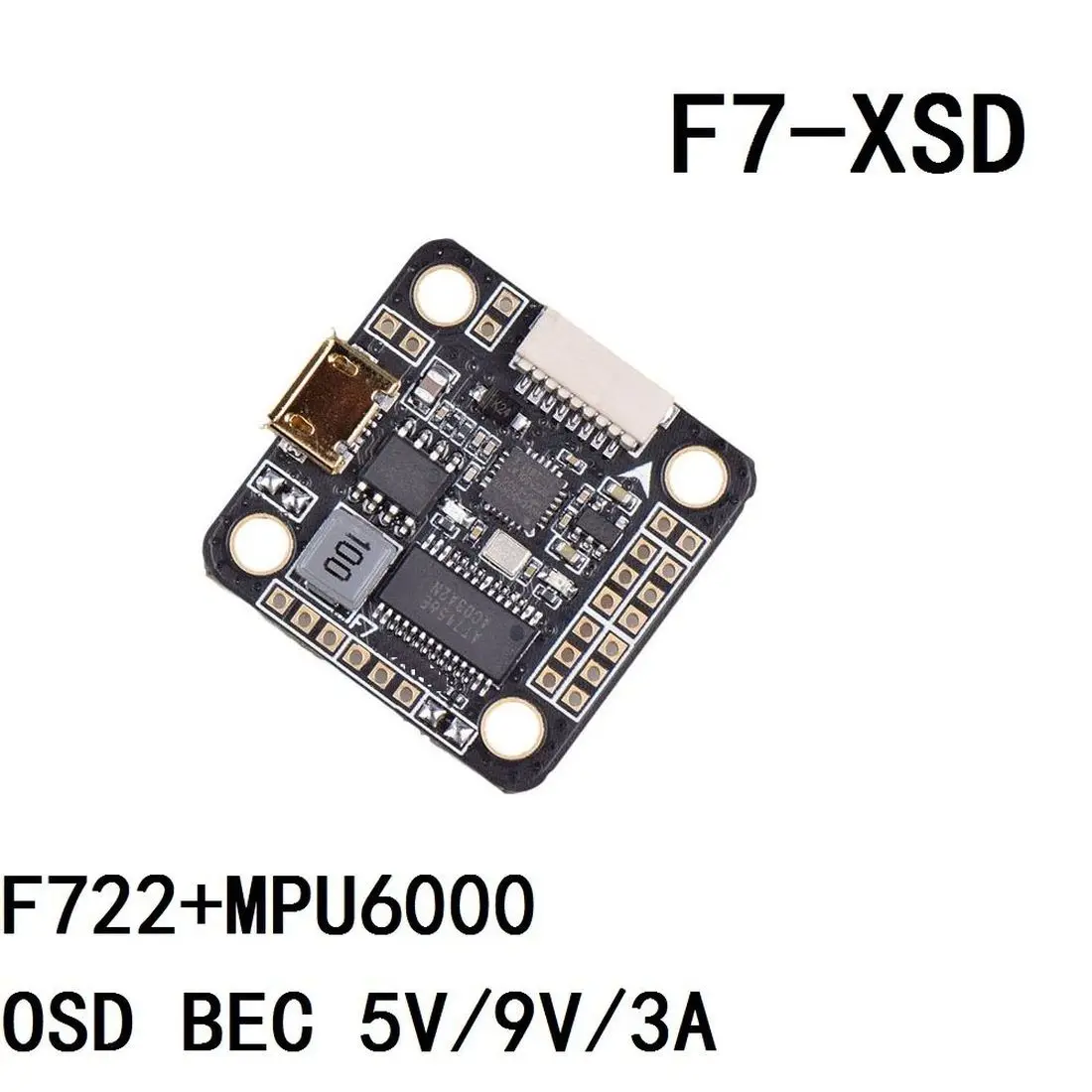

The F7 flight control equipped with MPU6000 has faster acceleration response; integrated 5V/2A, 9V/3A BEC, and integrated OSD.

Input voltage 2S-6S, comes with two independent BEC, supports mainstream SBUS, DSM2/DSMX, IBUS, TBS and other receivers on the market.

There is LED_STRIP interface, active buzzer interface, support DSHOT ESC.

1. Specially designed for small traversing machines, suitable for racks of the size below 150mm, especially the racks within 130mm can play the advantages of small and full function

2. This board provides all functions, the weight is only 4.2 grams, the size is only 27*27MM, and the fixed hole distance is 20MM (M3 hole position);

Receiver configuration:

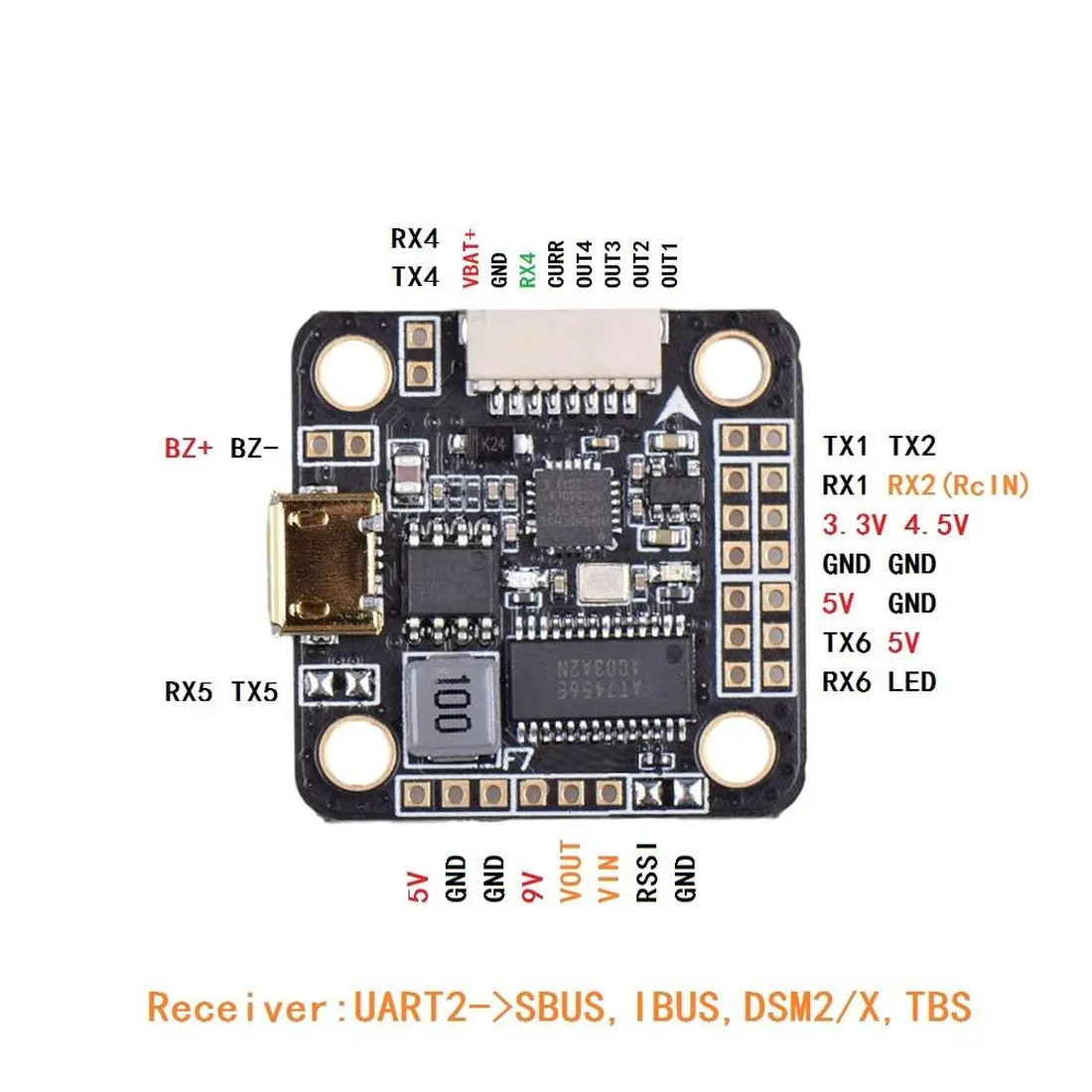

When SBUS, DSM, IBUS, TBS receiver input, please configure UART2 as input interface

Features:

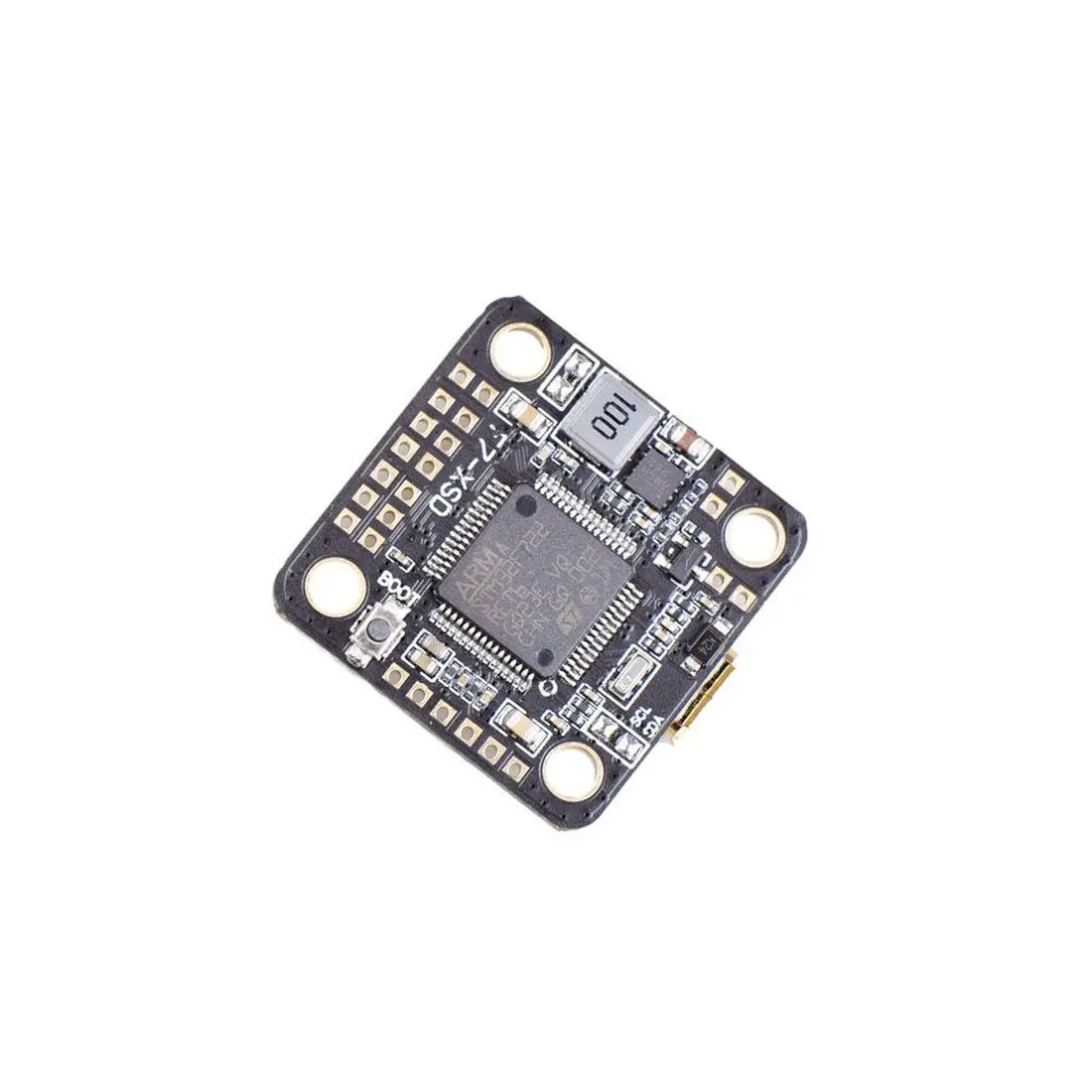

CPU: STM32F722RGT6

Sensor: MPU6000 three-axis accelerometer/three-axis gyroscope (SPI connection)

Power supply: 2-6S battery input

BEC: 5V/2A, 9V/3A

Receiver: support Sbus or serial RX interface, Spektrum 1024/2048, SBUS, IBUS, TBS, etc.

Buzzer interface

Support programmable LED_Strip

Support BLheli suite ESC programming

Built-in voltage detection and alarm

Built-in OSD function, BF online adjustment

Dimensions: 27*27MM, screw hole distance 20*20MM, M3

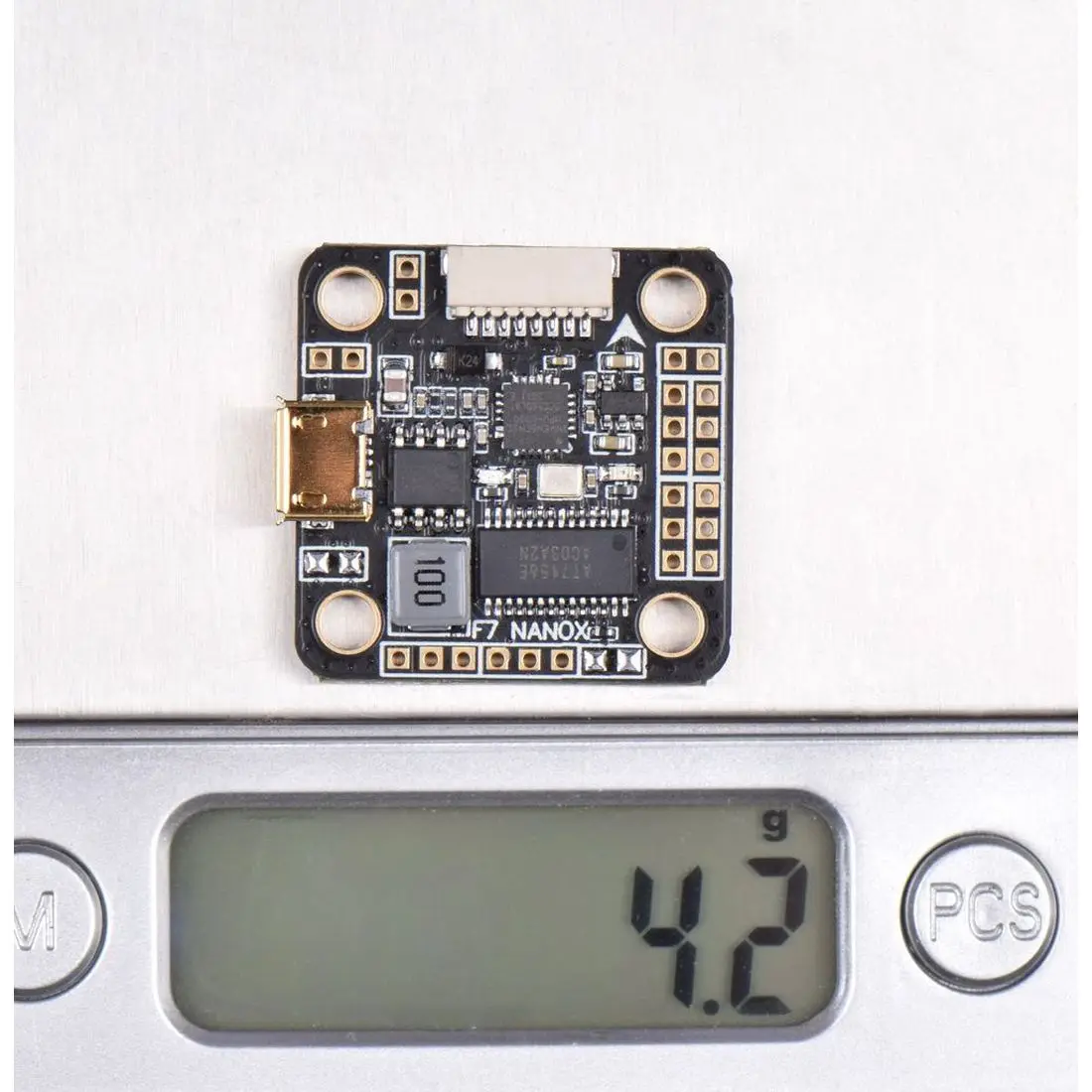

Weight 4.2g

Quantity:1pc
