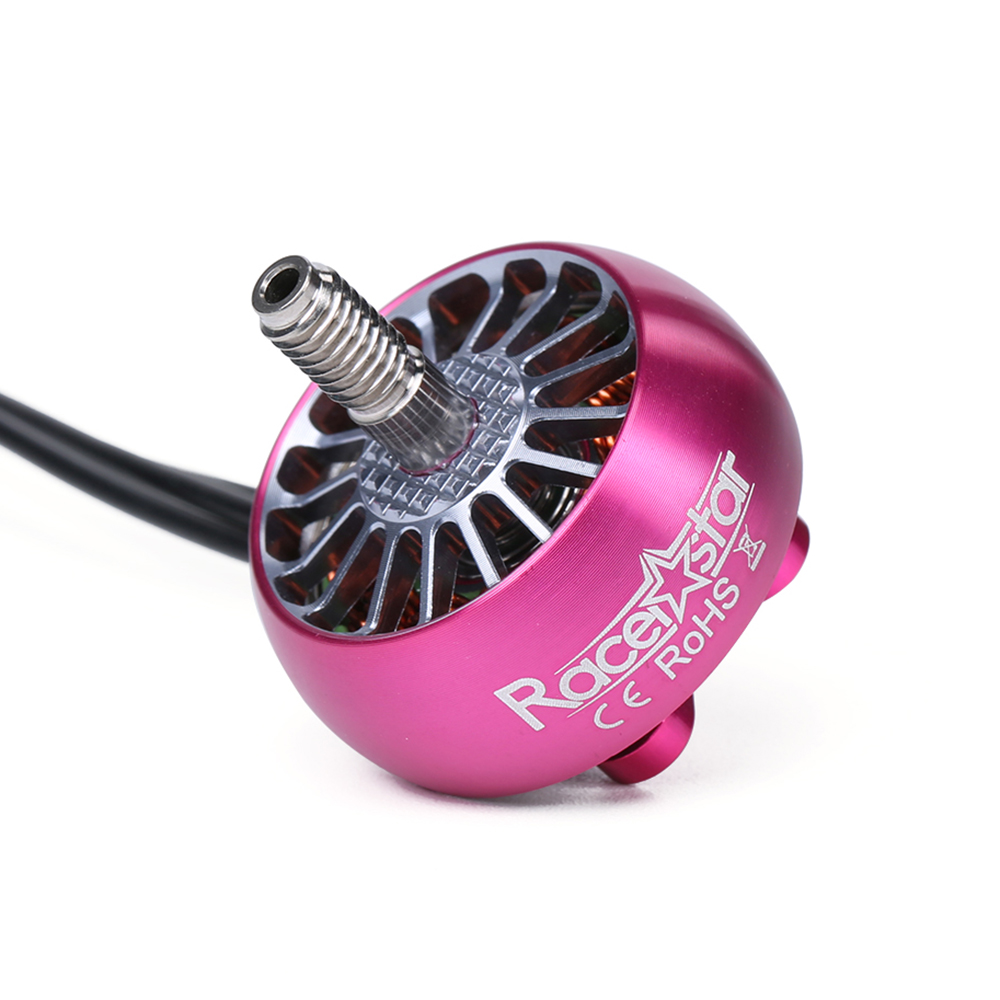

Racerstar AirC 2306.5 NextGen Unibell 6S 1650KV

After AirA, AirB, new AirC series is coming, designed from iFlight Team,

having two series to meet your need, 2306.5 motor dedicated for Freestyle fpv drone, 2207.5 motor for racing.

Made of high- strength Titanium alloy shaft and design in special oval shape,

which not only making in a beautiful appearance, but also improve durability, Multi-heat dissipation and flight performance.

Specification:

Brand: Racerstar

Model: AirC

Item Name: 2306.5 1650KV / 2450KV Brushless Motor

KV: 1650KV / 2450KV ( Optional)

Quantity: One PC

Version: CW Screw Thread

Conflgu-ration: 12N14P

Stator Diameter: 23mm

Stator Length: 6.5mm

Shaft Diameter: 5mm

Cable Length: 150mm

Motor Dimension (Dia*Len): 30.1*18.7mm

Weight: 35g

1650KV Version:

Ldle Current (10) @ 3V(A): 0.63A

No.of Cells (Lipo): 4S-6S

Internal Reaiatance: 84.6mΩ

Max Continuous Power(W) 60S: 763W

Max. Current (60S): 28.33A

2450KV Version:

Ldle Current: 1.0A

No.of Cells (Lipo): 4S

Internal Reaiatance: 46.5mΩ

Max Continuous Power(W) 60S: 903W

Max. Current (60S): 38.6A

Features:

 - Unibell design

- Elliptical body, high-strength Titanium alloy shaft

- Large heat dissipation holes design (15℃ reduced compared to same range motor)

- Crush resistant damping bearing, eliminate vibration effectively

- 150mm cable length for different frames and setups

- CNC high-precision machining 7075 aluminum Bell and Base

- 220℃ Heat-Resistant Copper Wire, Solid Wire Winding

- Electromagnetically matched magnets and stator

 - N52H High-temperature magnets

- Motor wire protected

- Hex bolt shaft set screw

- Dynamically balanced

Package Included:

1x Racerstar AirC 2306.5 Motor

1x Motor Nut

1x bag of Screws
