DJI Mavic Mini 2

Specifications:  Quick Start Guide

Aircraft	Takeoff Weight	< 249 g
	Dimensions	Folded: 138×81×58 mm (L×W×H) Unfolded: 159×203×56 mm (L×W×H) Unfolded (with propellers): 245×289×56 mm (L×W×H)
	Diagonal Distance (propellers excluded)	213 mm
	Max Ascent Speed	5 m/s (S Mode) 3 m/s (N Mode) 2 m/s (C Mode)
	Max Descent Speed	3.5 m/s (S Mode) 3 m/s (N Mode) 1.5 m/s (C Mode)
	Max Speed (near sea level, no wind)	16 m/s (S Mode) 10 m/s (N Mode) 6 m/s (C Mode)
	Max Service Ceiling Above Sea Level	4000 m (2000 m when taking off with propeller guard)
	Max Flying Time	31 minutes (measured while flying at 4.7 m/s in windless conditions)
	Max Wind Speed Resistance	8.5-10.5 m/s (Scale 5)
	Max Tilt Angle	40° (S Mode) 25° (N Mode) 25° (C Mode) Up to 40° under strong winds
	Max Angular Vellocity	130°/s (S Mode) 60°/s (N Mode) 30°/s (C Mode) Can be adjusted to 250°/s with the DJI Fly app
	Operating Temperature	0° to 40°C (32° to 104°F)
	Operating Frequency	2.400-2.4835 GHz, 5.725-5.850 GHz
	Transmitter Power (EIRP)	2.400-2.4835 GHz FCC ≤ 26 dBm CE ≤ 20 dBm SRRC ≤ 20 dBm 5.725-5.850 GHz FCC ≤ 26 dBm CE ≤ 14 dBm SRRC ≤ 26 dBm
	GNSS	GPS+GLONASS+GALILEO
	Hover Accuracy Ran-ge	Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)
Gimbal	Mechanical Ran-ge	Tilt: -110° to 35° Roll: -35° to 35° Pan: -20° to 20°
	Controllable Ran-ge	Tilt: -90° to 0° (default setting) -90° to +20° (extended)
	Stabilization	3axis (tilt, roll, pan)
	Max Control Speed (tilt)	100°/s
	Angular Vibration Ran-ge	±0.01°
Sensing System	Downward	Operating Ran-ge: 0.5-10 m
	Operating Environment	Non-reflective, discernable surfaces Diffuse reflectivity (>20%,such as cement pavement) Adequate lighting (lux>15, Normal exposure environment of indoor fluorescent lamp)
Camera	Sensor	1/2.3” CMOS Effective Pixels: 12 MP
	Lens	FOV: 83° 35 mm Format Equivalent: 24 mm Aperture: f/2.8 Shooting Range: 1 m to ∞
	ISO Ran-ge	Video: 100-3200 (Auto) 100-3200 (Manual) Photo: 100-3200 (Auto) 100-3200 (Manual)
	Shutter Speed	Electronic Shutter: 4-1/8000s
	Still Image Size	4:3: 4000×3000 16:9: 4000×2250
	Still Photography Modes	Single shot Interval: JPEG: 2/3/5/7/10/15/20/30/60 s JPEG+RAW: 5/7/10/15/20/30/60 s Auto Exposure Bracketing (AEB): 3 bracketed frames at 2/3 EV Bias Panorama: Sphere, 180°, and Wide
	Video Resolution	4K: 3840×2160 @ 24/25/30fps 2.7 K: 2720×1530 @ 24/25/30fps FHD: 1920×1080 @ 24/25/30/48/50/60fps
	Max Video Bitrate	100 Mbps
	Zoom Range	4K: 2x 2.7K: 3x FHD: 4x
	QuickShot Modes	Dronie, Heliex, Rocket, Circle, Boomrang
	Supported File Systems	FAT32 (≤32 GB) exFAT (>32 GB)
	Photo Format	JPEG/DNG
	Video Format	MP4 (H.264/MPEG-4 AVC)
Remote Controller & Video Transmission	Operating Frequency	2.400-2.4835 GHz, 5.725-5.850 GHz
	Max Transmission Distance (unobstructed, free of interference)	10 km (FCC) 6 km (CE) 6 km (SRRC) 6 km (MIC)
	Signal Transmission Ranges (FCC)	Strong Interference (urban landscape, limited line of sight, many competing signals): Approx. 3 km Medium Interference (suburban landscape, open line of sight, some competing signals): Approx. 6 km Low Interference (open landscape abundant line of sight, few competing signals): Approx. 10 km
	Operating Temperature	10° to 40°C (14° to 104°F)
	Transmitter Power (EIRP)	2.400-2.4835 GHz FCC ≤ 26 dBm CE ≤ 20 dBm SRRC ≤ 20 dBm MIC ≤ 20 dBm 5.725-5.850 GHz FCC ≤ 26 dBm CE ≤ 14 dBm SRRC ≤ 26 dBm
	Battery Capacity	5200 mAh
	Operating Current/Volltage	1200 mA 3.7 V (Android) 700 mA 3.7 V (iOS)
	Supported Mo-bile Device Size	Max length: 92 mm
	Supported USB Port Types	Lighting, Micro USB (Type-B), USB Type-C
	Video Transmission System	OcuSync 2.0
	Live View Quality	Remote Controller: 720p/30fps
	Max. Bitrate	8 Mbps
	Latency (depending on environmental conditions and mobile device)	About 200 ms
Intelligent Flight Battery	Capacity	2250 mAh
	Volltage	7.7 V
	Charging Volltage Limit	8.8 V
	Battery Type	LiPo 2S
	Energy	17.32 Wh
	Net Weight	86.2 g
	Max Charging Power	29 W
	Charging Temperature Ran-ge	5° to 40°C (41° to 104°F)
Charger	Input	100-240 V, 50/60 Hz, 0.5A
	Output	12V 1.5 A / 9V 2A / 5V 3A
	Rated Power	18 W
APP	Name	DJI Fly
	Required Operating System	iOS v10.0 or later Android v6.0 or later
Supported SD Cards	Supported SD Cards	UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below

Features:
-【PACK LIGHT, FLY FREE】: At less than 249 g, it weighs about as much as an apple and fits in the palm of your hand. Compact and convenient, this small drone is your ideal travel companion, transforming how you capture your favorite memories.
-【3-AXIS GIMBAL WITH 4K CAMERA】: A 12MP camera in the sky delivers content guaranteed to impress. Along with 4K/30fps video and a 3-axis motorized gimbal, Mini 2 ensures stunning image quality that is consistently smooth no matter how adventurous your piloting gets.
-【OCUSYNC 2.0 VIDEO TRANSMISSION】: Mini 2 supports up to 10km of HD video transmission and has excellent anti-interference capabilities, giving you the ability to fly farther and see clearer.
-【POWERFUL PERFORMANCE】: With a max battery life of 31 minutes, DJI Mini 2 grants more than enough time to compose the perfect shot. Mini 2 can resist level 5 winds and take off at a max altitude of 4,000 meters, so your footage is stable even when flying along a windly coastline or high above an alpine forest.
-【4X ZOOM】: There’s no need to get so close for your dream shot. 4x digital zoom makes it safer and more convenient when transitioning between shots of varying distance and composition.
-【QUICKSHOTS】: With just a few taps, DJI Mini 2 automatically records and shoots professional-level videos to share directly on social media. Whether you’re a beginner or a more experienced flyer, the DJI Fly app helps you produce impressive results complete with soundtracks and filters.
-【COMPATIBILITY】: The DJI Fly app requires iOS v10.0, Android v6.0, or above.

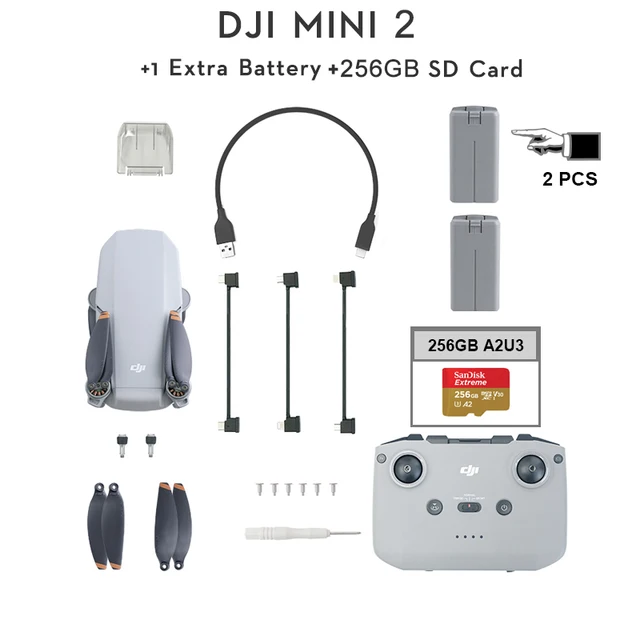

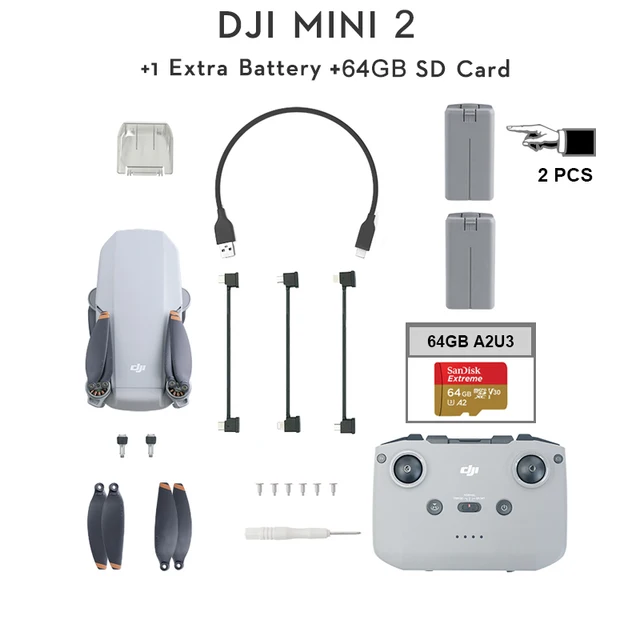

Package Included:

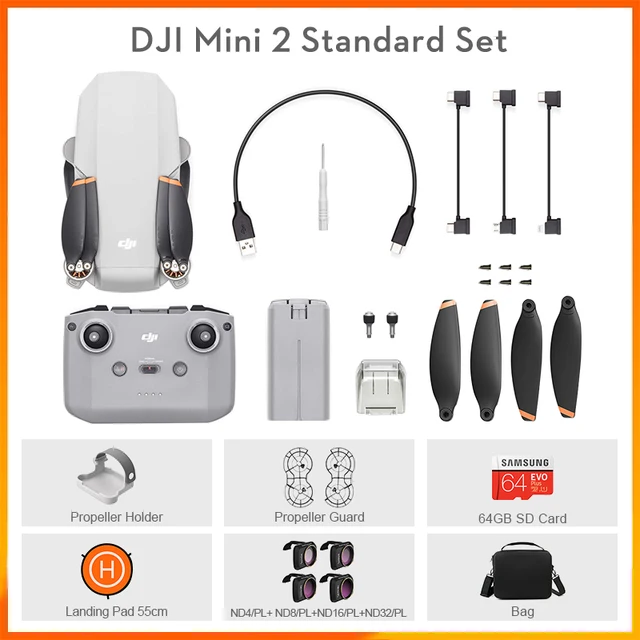

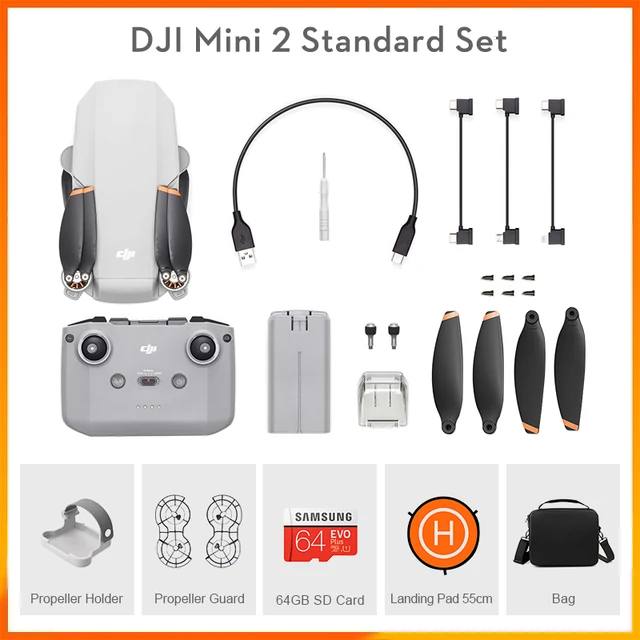

Mini 2:
1 x Aircraft
1 x Remote Controller
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
1 x Type-C Cable
1 x Gimbal Protector
3 x RC Cable (USB/USB-C/Lighting/)
1 x Pair of Spare Control Sticks
6 x Spare Screw
1 x Screwdriver

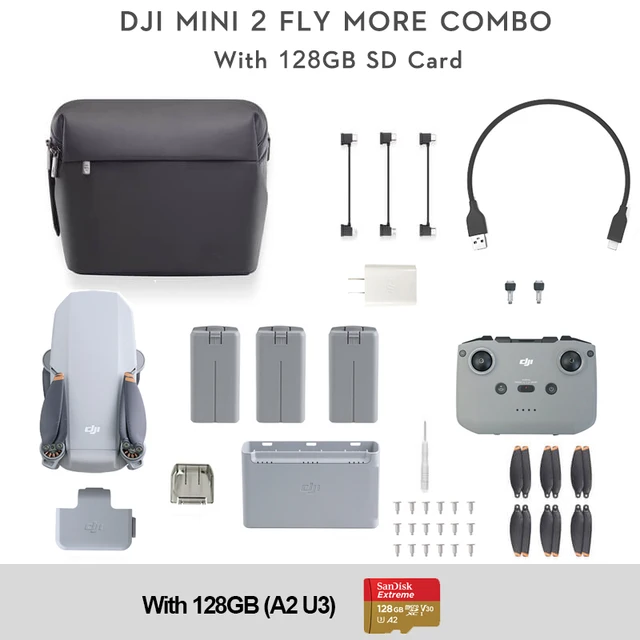

Mini 2 Fly More Combo:
1 x Aircraft
1 x Remote Controller
3 x Intelligent Flight Battery
3 x Pair of Spare Propellers
1 x Type-C Cable
1 x Gimbal Protector
3 x RC Cable (USB/USB-C/Lighting)
1 x Pair of Spare Control Sticks
18 x Spare Screw
1 x Screwdriver
1 x Propeller Holder
1 x Two-Way Charging Hub
1 x DJI 18W USB Charger
1 x Shoulder Bag
