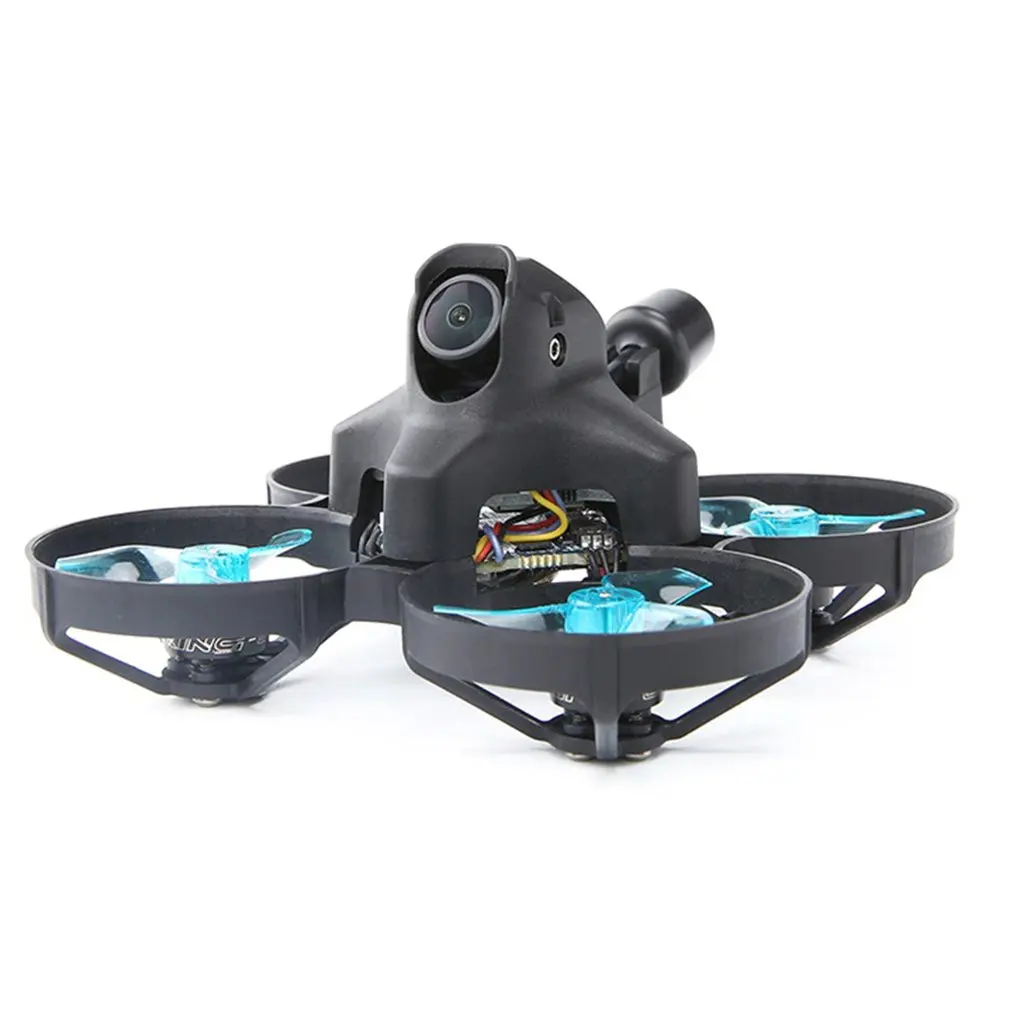

iFlight Alpha A75 RunCam Nano2 PNP
Коптеры → Тинивупы → Вупы BNF/ARF/RTF → iFlight Alpha A75 RunCam Nano2 PNP-1000x1000.jpg "iFlight Alpha A75 RunCam Nano2 PNP")
Let's welcome the iFlight Alpha series, a new way to fly FPV on the smallest possible whoop size quad? We did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.
Features：
- 66.9 grams (without battery)
- Butter smooth XING 1103 8000KV，more torque and efficiency
- Ducts to protect the sensitive environment or yourself
- Pre-tuned with smooth cinematic settings
- iFlight Albatross 5.8G light antenna upgrade (included)
Alpha A75 HD BNF Specs:
- SucceX-D 20A Whoop F4 AIO Board
- XING 1103 8000KV FPV Micro Motor
- Wheelbase: 78mm
- Body size: 102.9*102.9mm
- Ducted propeller size: HQ 40mm 1.6 inch
- FC pattern: 25.5*25.5mm
- FPV cam spacing: 14mm
- Weight: 52.1g (without battery)
- Battery: 3S 450mAh (not included)
PRE-TUNED & PRE-SETUP:
- Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
Alpha A75 Analog BNF Included Components and Parts
- Prebuilt and tested Quadcopter
- 1x Alpha 78mm Frame
- 1x RunCam Nano2 Camera
- 1x 5.8G SucceX Micro Force VTX 300mW
- 1x iFlight Albatross RHCP 5.8g light antenna
- 1set x HQ 40mm 1.6 inch 4-blades (Set of 2 - Color May Vary)
- 1set x Gemfan 40mm 1.6inch 1635 3-blades (Set of 2 - Color May Vary)
- 2x 10*130mm iFlight Lipo Strap
FC // SucceX-D 20A F4 Whoop AIO
*Size：30.5*30.5mm
*Mounting pattern：25.5*25.5mm/φ3mm
*Connector：Micro-USB
*MCU：STM32F411
*Gyro：MPU6000
*Blackbox：8MB
*BEC output：5V 2A/10V 2A
*INA pad：UART2 (nR2)
*Barometer：no
*Constant current：20A，25A（Burst）
*Input：2-4S
*Current sensor：yes
*BLHeli：BLHeli-S
*ESC Telemetry：no
*Target：IFLIGHT_F411_PRO
*ESC Firmware：G-H-30 BLS
5.8GHz SucceX Micro 300mW VTX
-Power: PIT/25/100/200mW/300mW
-Antenna interface: IPEX (UFL)
-VTX protocol : IRC Tramp
-Size: 13.5x14.5mm
-Weight: 1.4g
- Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
Additional Suggested Parts
- Battery 3S 450mAh (LINK)
Поделиться
Цены на iFlight Alpha A75 RunCam Nano2 PNP в магазинах
Найдено предложений: 8 ()
См. также
iFlight Alpha A75 RunCam Nano2 BNF iF8 R81
₽19455
$191
iFlight Alpha A75 RunCam Nano2 BNF Frsky XM+ FCC
₽25236
$248
iFlight Alpha A75 RunCam Nano2 BNF Frsky XM+ EU LBT
₽15353
$151
iFlight Alpha A75 RunCam Nano2 BNF Frsky R-XSR FCC
₽20179
$198
iFlight Alpha A75 RunCam Nano2 BNF Frsky R-XSR EU LBT
₽16064
$158
iFlight Alpha A75 RunCam Nano2 BNF TBS Crossfire NANO RX
₽18767
$185

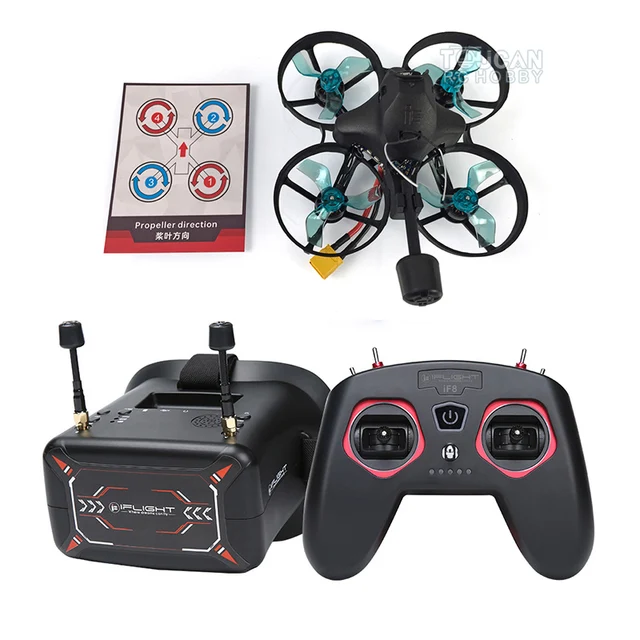

iFlight Alpha A75 RunCam Nano2 RTF + FPV Goggles
