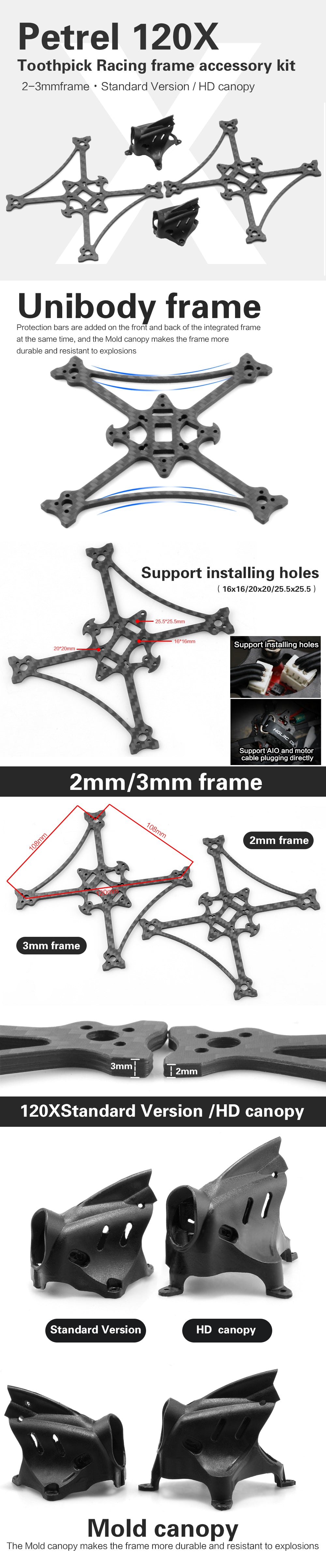

HGLRC Petrel 120X 3" 120mm 3mm Frame Kit

Features:
Supports 16x16 / 20x20 /25.5x25.5 mounting holes
Supports plugging the wire of AIO with the motors directly
Supports fixing the battery by straps / rubber bands at the same time.
An integrated protection brace is added (making the bottom plate more robust)

HGLRC Petrel 120X 3 Inches Toothpick FPV Racing Frame 2mm Bottom plate Frame Kit

Brand Name:HGLRC
Model:Petrel 120X Frame Kit
Material:3K Carbon Fiber
Type:3" frame
Wheelbase:120mm
size:108*108mm
Bottom plate thickness:2mm
Installation holes:16x16mm *20x20mm * 25.5x25.5mm
Support camera:14mm
Weight:11.7g

Package Includes:
1x 2mm bottom plate
1x Petrel X Canopy
4x Hex Socket screws M2*18
2x round head screws M2*4
3x Thread self -tapping round head screw M1.5
3x M2 Self-tightening nut
4x M2*6 shock-absorption columns
4x M2*6.6 shock-absorption balls
2x Black rubber bands
2x Battery Straps
1x Battery Anti-slip pad

Recommended Parts:( Not Included )
Flight Controller:F4/F7/AIO
Motor:11xx/12xx/13xx
ESC:5A-25A/AIO
Camera:14X14mm
Propeller:3 Inches

HGLRC Petrel 120X 3 In ches Toothpick FPV Racing Frame 3mm Bottom plate Frame Kit

Brand Name:HGLRC
Model:Petrel 120X Frame Kit
Material:3K Carbon Fiber
Type:3" frame
Wheelbase:120mm
size:108*108mm
Bottom plate thickness:3mm
Installation holes:16x16mm*20x20mm*25.5x25.5mm
Support camera:14mm
Weight:14.5g

Package Includes:
1x 3mm bottom plate
1x Petrel X Canopy
4x Hex Socket screws M2*18
2x round head screws M2*4
3x Thread self -tapping round head screw M1.5
3x M2 Self-tightening nut
4x M2*6 shock-absorption columns
4x M2*6.6 shock-absorption balls
2x Black rubber bands
2x Battery Straps
1x Battery Anti-slip pad

Recommended Parts:( Not Included )
Flight Controller:F4/F7/AIO
Motor:11xx/12xx/13xx
ESC:5A-25A/AIO
Camera:14X14mm
Propeller:3 Inches
