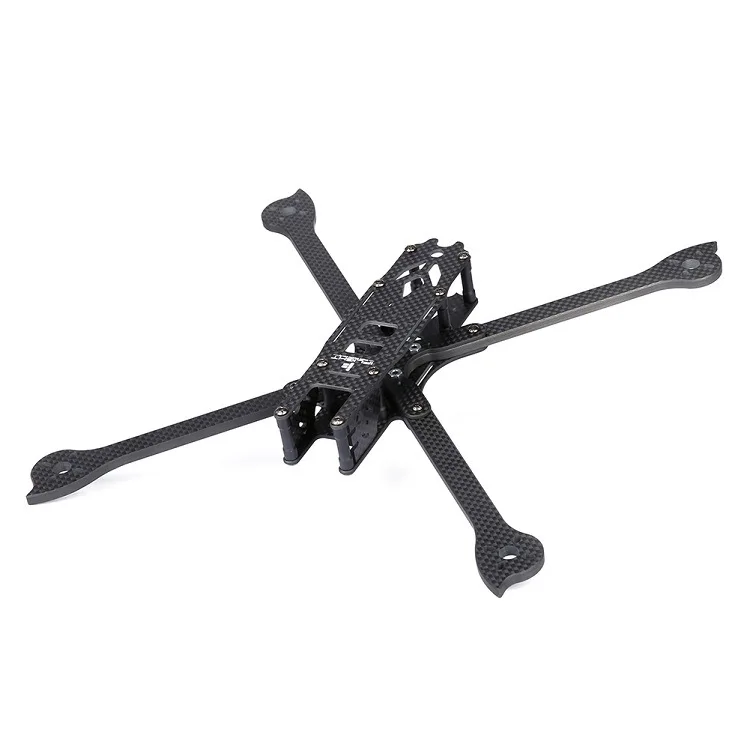

iFlight XL7 V3 Low Ride

iFlight XL7 Lowrider V3 300MM Long Rang FPV Frame with 5mm arm compatible 2306 2207 racing motor for FPV Racing Drone accessory

PRODUCT DESCRIPTION
- Define a new Hyper-Low version frame which mix racing and freestyle together, it’s a hyper lower version based on the previous XL7 V2 frame.
- True X freestyle design with 4pc 5mm thick removable arms locking structure ensures outstanding flying and stronger than XL7 V2.
- This racing & freestyle frame gives you ultimate control over weight distribution and CoG by not only allowing the use of M3x22mm standoff but also offering a reversible build orientation for a true mid-mount set up.
- This frame comes with micro camera adaptors, easy for mounting micro cameras.

Features:
- Designed for the micro camera, adjustable camera placement
- Chamfered Edge High quality Pure 3K carbon plate
- Top mounted battery for optimal CG
- True X frame design

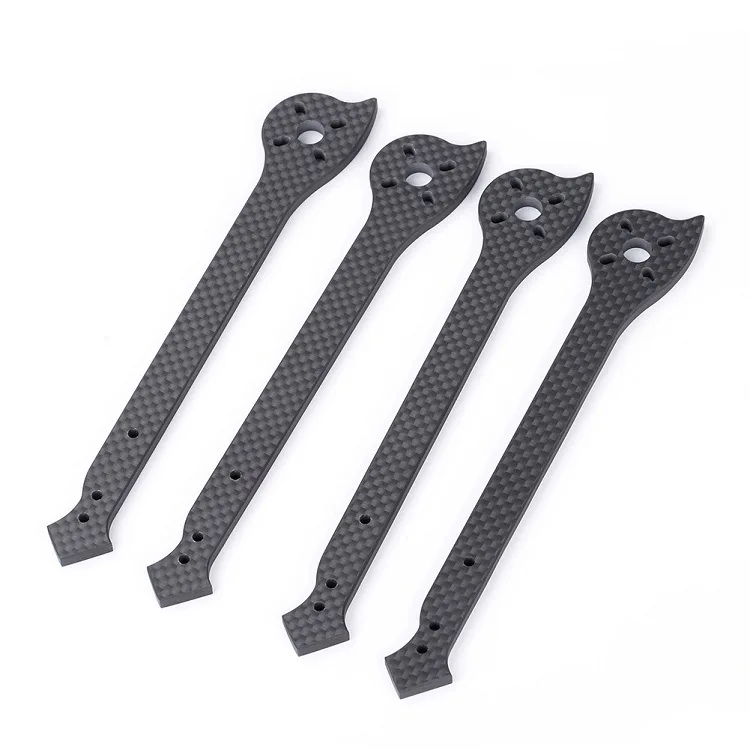

- Replaceable 5mm arms and plates
- Grade 12.9 Black Nickel Plating high-quality screw hardware
- Compact & camera easy repairing design
- 22mm Standoffs
- Slim version XL7, narrowest position 12mm on the arm

Specifications:
- Type: 7" Freestyle frame
- Frame wheelbase: 300mm
- Dimensions :211mm x 211mm(body dimension)

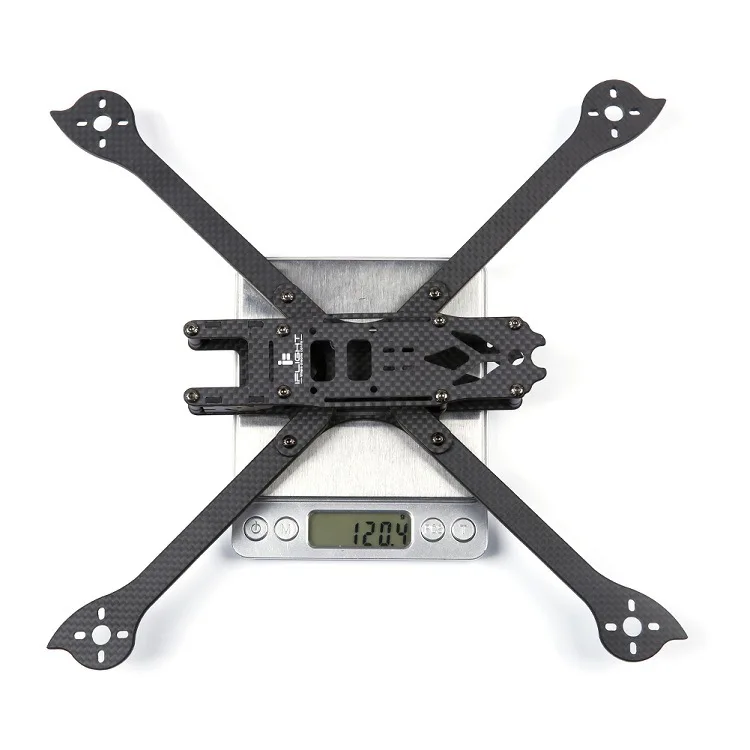

- Frame weight:125g approx
- Motor c-clip hole: 8mm
- Standoff Height: 22mm
- 5mm arms,1.5mm vertical side plates
- 2mm top plate & upper plate
- Mounting Holes: 30.5*30.5mm
- Carries: 1300-1500mAh lipo + GoPro Session

Recommended parts(not included):
- Flight controller: RevoBee  F4/F7 Compatible controller
- Motor: iPower the Ion/Tachyon/Force 2204 - 2306 Motor
- Propeller: 7-inch propeller
- Camera: Micro Cameras
- Battery: 4s 1500 mAh Lipo battery

Package Included:

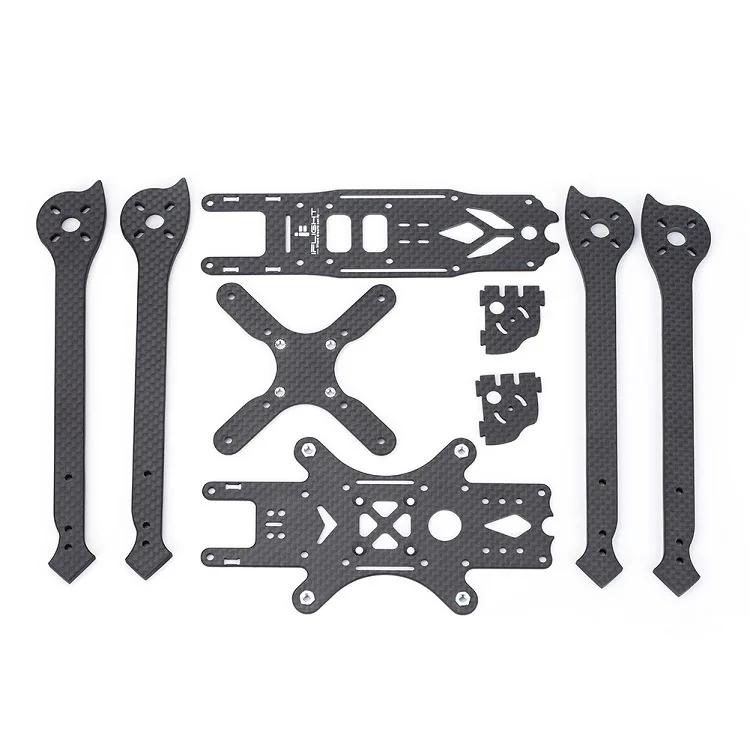

- 1pc *  XL7 Lowrider V3 Long Range FPV Frame
- 1set * 3D print micro camera adator
