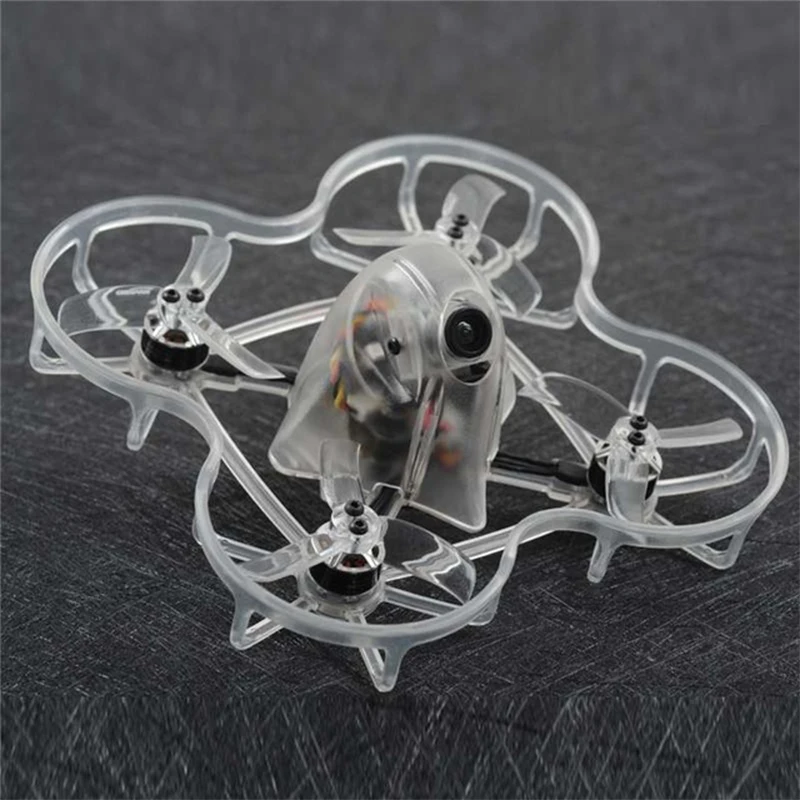

Skystars Ghostrider X95 PNP

SKYSTARS 2019 Ghostrider X95 95mm FPV Racing RC Drone DIY PNP BNF w/ F4 OSD 200mW VTX 20A BLHeli_S ESC 700TVL Camera

Item	Specification
Ghostrider X95 Frame Kit	Wheelbase: 95mm Color: translucence Material: elastic plastic Screws: 10.9 class screw Weight: 25g
SKYSTARS ST1104 7500KV Brushless Motor	KV: 7500KV Lipo cell: 2S
20A 2-4S BLHeli_S 4 in 1 ESC	Input voltage: 2-3S lipo battery Constant current: 20A Peak current: 25A BEC ouput: NO Firmware: BLHeli_S Size: 27x27mm (main board) 27x31mm ( including pad) Installing holes distance: 20x20mm, φM2 Weight: 4g MOS tube: TOP QUALITY MOSFET Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600, forward and reverse.
F4 Flight Controller (DShot Version)	MPU: MPU6000-SPI CPU: STM32F405RGT6, dual 8K. Built-in betaflight OSD to adjust PID BEC output: 5V@2A Board size: 25x25mm  Installing holes distance: 20x20mm Mounting holes: φM2 Weight: 2.3g Support SUBS/PPM/DSMX receiver
40CH 25mW/100mW/200mW switchable FPV VTX	Output power: 25mW/100mW/200mW switchable Control mode: button OR channel changes   Battery: 7-26V, BEC 5V-1A 190mA----200mW Video system: NTSC/PAL Frequency: 5.8GHz 5 bands 40channels, with Raceband: 5645-5945 MHZ Size: 24*24mm(L*W), installing holes distance: 20*20mm Weight: 2.5g
700TVL CMOS camera	Image sensor: 1/3" CMOS sensor Horizontal resolution: 700TVL Lens: 2.3mm Lens FOV: 115 degree(2.3mm) Signal system: PAL/NTSC S/N ratio: >50dB(AGC OFF) Min.illumination: 0.1Lux/1.2F Day/Night: Auto Power: DC 5V Net weight: 3g Dimensions: 19mm*14mm*13mm
Lipo battery	Not included Recommend 2-3S 350-500mAh
Optional versions	BNF with Flysky IBUS receiver BNF with Frsky XM+ receiver PNP without receiver DIY without receiver (comes unassembled) Product weight: 79g Product size: 13x13x5mm Package weight: 280g Package size: 170x170x70mm



Package included:

1 x Ghostrider X95 racing frame kit

4 x ST1104 7500KV brushless motor

1 x 4 IN 1 20A BLHeli_S ESC

1 x F4 flight controller (Dshot version)

1 x 700TVL CMOS camera

1 x 5.8G 40CH 0mw/25mw/100mw/200mw switchable VTX

1 x LED PDB board with BB buzzer alarm

4 x Gemfan 2040 3-blade propeller CW

4 x Gemfan 2040 3-blade propeller CCW
