Diatone Mamba EASY F405 MK1 + F50_BLS 50A 6S 4in1 ESC

FC Specifications ：

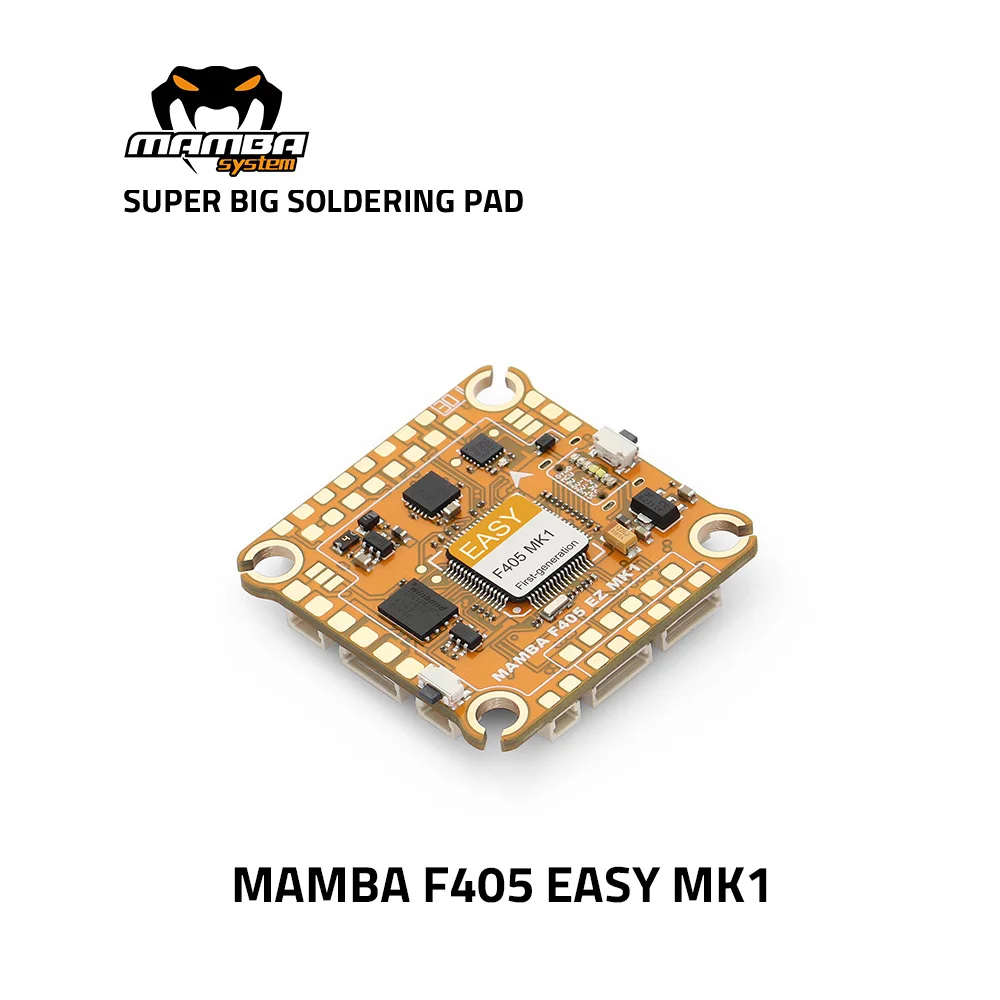

MAMBA EASY F405MK1

MCU: 168MHzSTM32F45RGT6

GYRO: MPU6000

Barometer: Yes

OSD: Yes

Blacbox: 16M Flash Memory

Uarts: 6Set

ESC Soft:Dshot300/600/1200

ESC Telemetry: Yes

Power Led: Yes

LED Controller:BF LED/MB LED（4 Set 2812 LED）

I2C:Yes

F.Port: Yes

RSSI: Yes

Buzz: Yes

Input: 3~6S Lipo (12.6~25.2V)

TVS Protection: Yes

BEC:3.3V 0.5A& 5V 2A ( System Power)&

5V 3A(LED)& 9V 2A

MOUNTING: 30.5mm,M3

ESC Specifications：

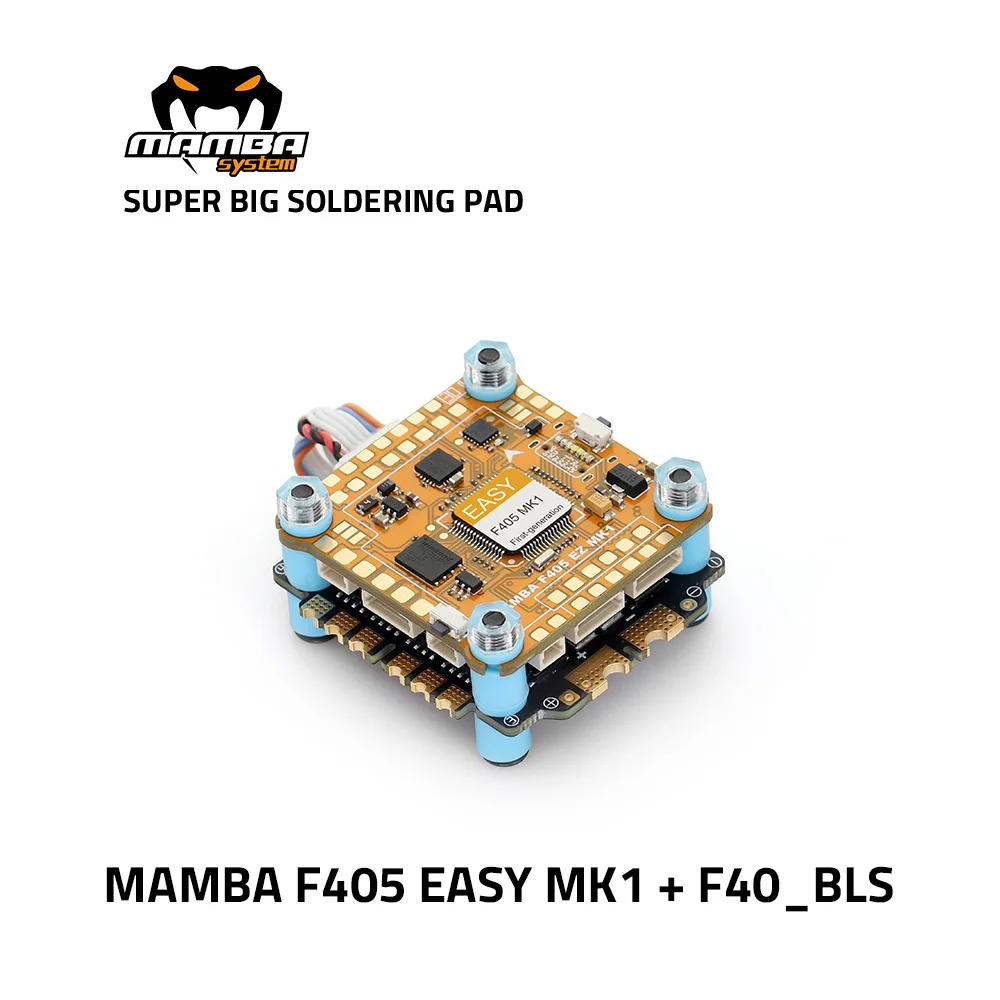

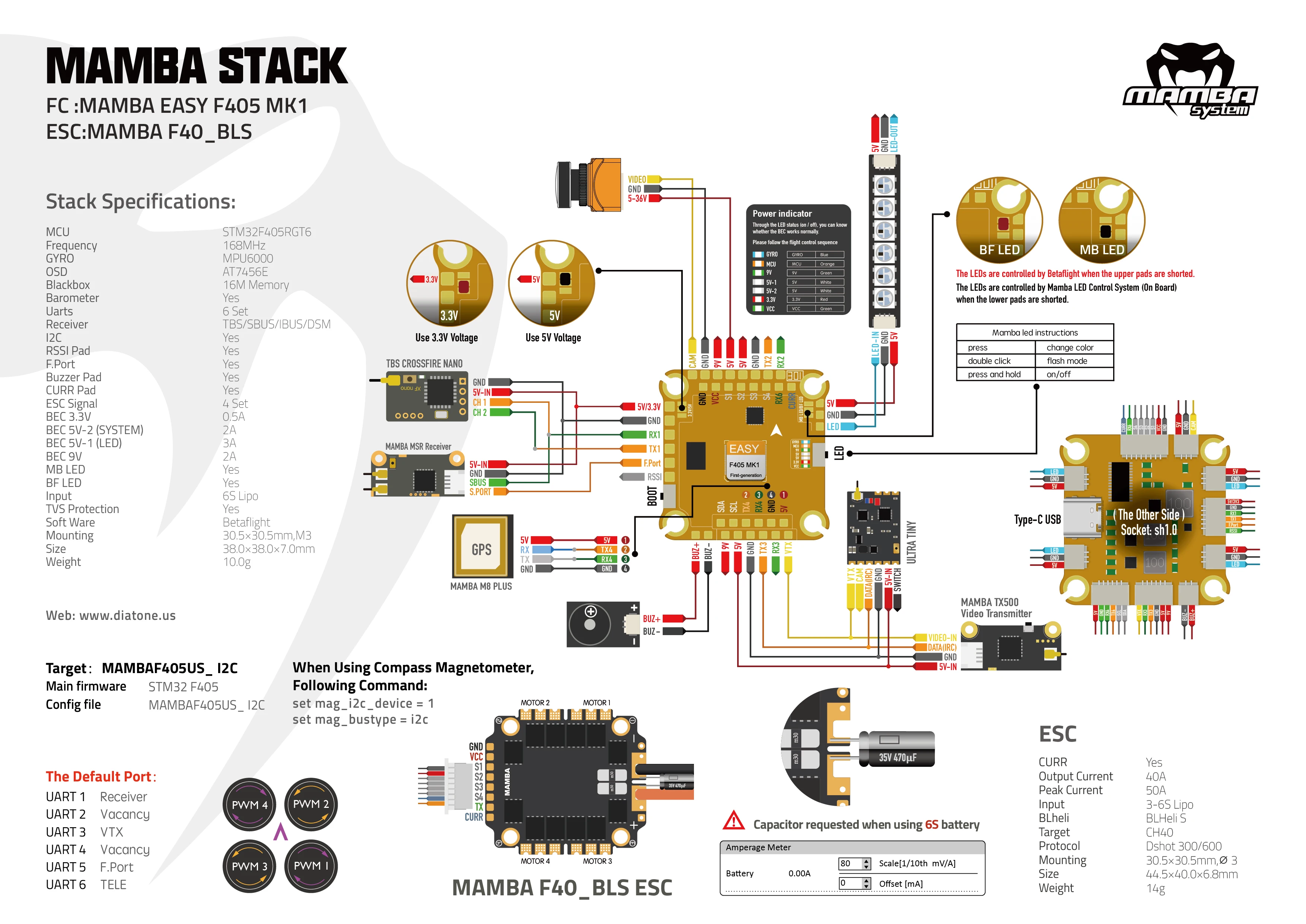

MAMBA F40 BLS

INPUT VOLTAGE:3~6S Lipo (12.6V~25.2V)

CONTINUE CURRENT:40A×4

BURST CURRENT:50A (10S)

BEC: No

Target：BLHeli_S CH40

SOFT: Dshot300/600

TVS Protection: Yes

MOUNTING:30.5mm/M3

MAMBA F50 BLS

Input voltage: 3 ~ 6S lipo (12.6V ~ 25.2v)

Rated current: 50A × four

Peak current: 60A (10s)

BEC：No

Firmware: blheli_ 32 MAMBA F50_ BL32

Procedure: dshot300 / 600 / 1200

TVs power protection: Yes

Installation hole position: 30.5mm/m3

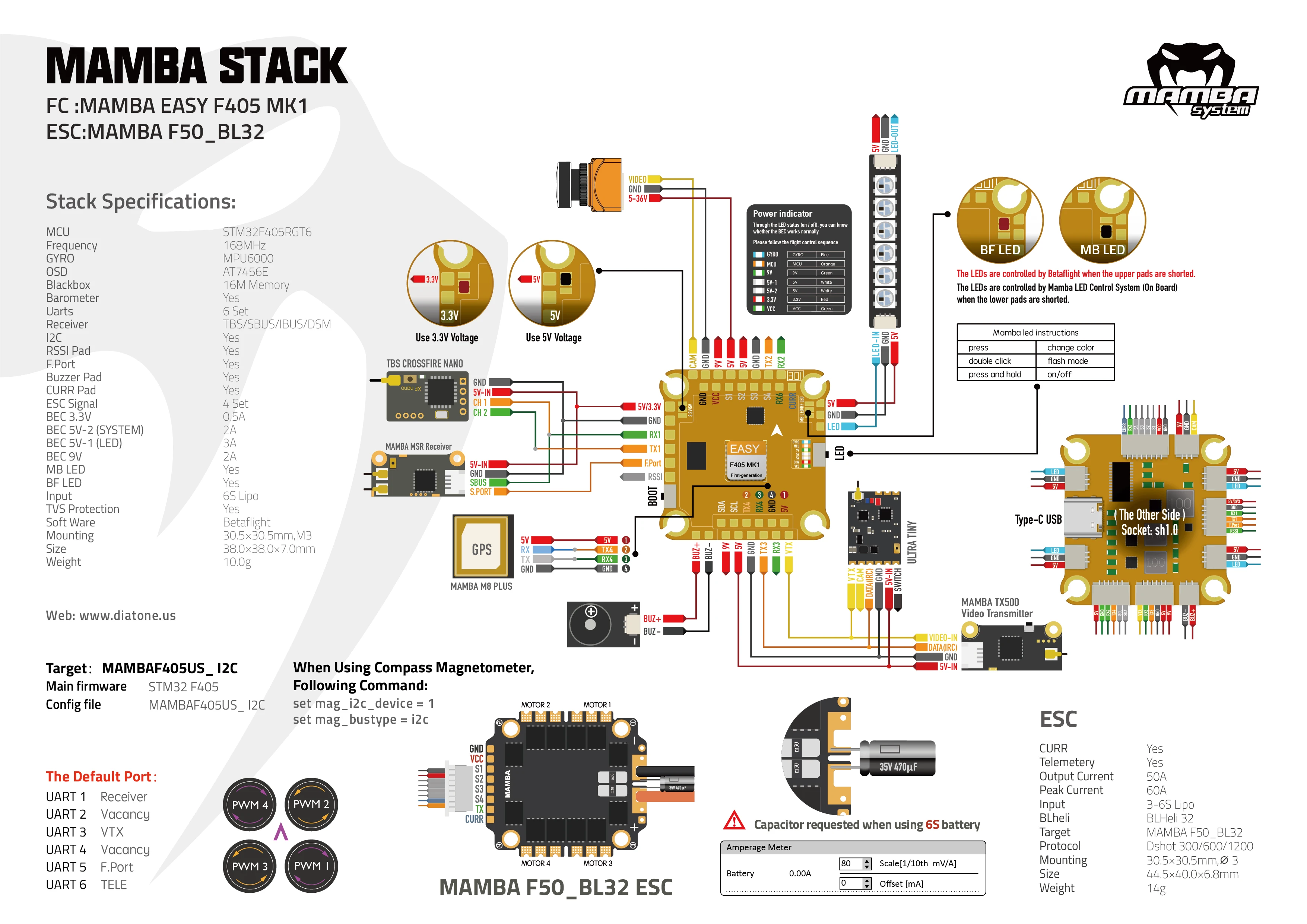

MAMBA F50_ BL32 electric control

Input voltage: 3 ~ 6S lipo (12.6V ~ 25.2v)

Rated current: 50A × four

Peak current: 60A (10s)

BEC: no program: dshot300 / 600 / 1200

Firmware: blheli_ 32 MAMBA F50_ BL32

TVs power protection: Yes

Installation hole position: 30.5mm/m3

Supply :

High-Frequency 470uF/35V ×1

8pin sh1.0 ×2

12AWG 100mm ×2

AMASS Original XT60
