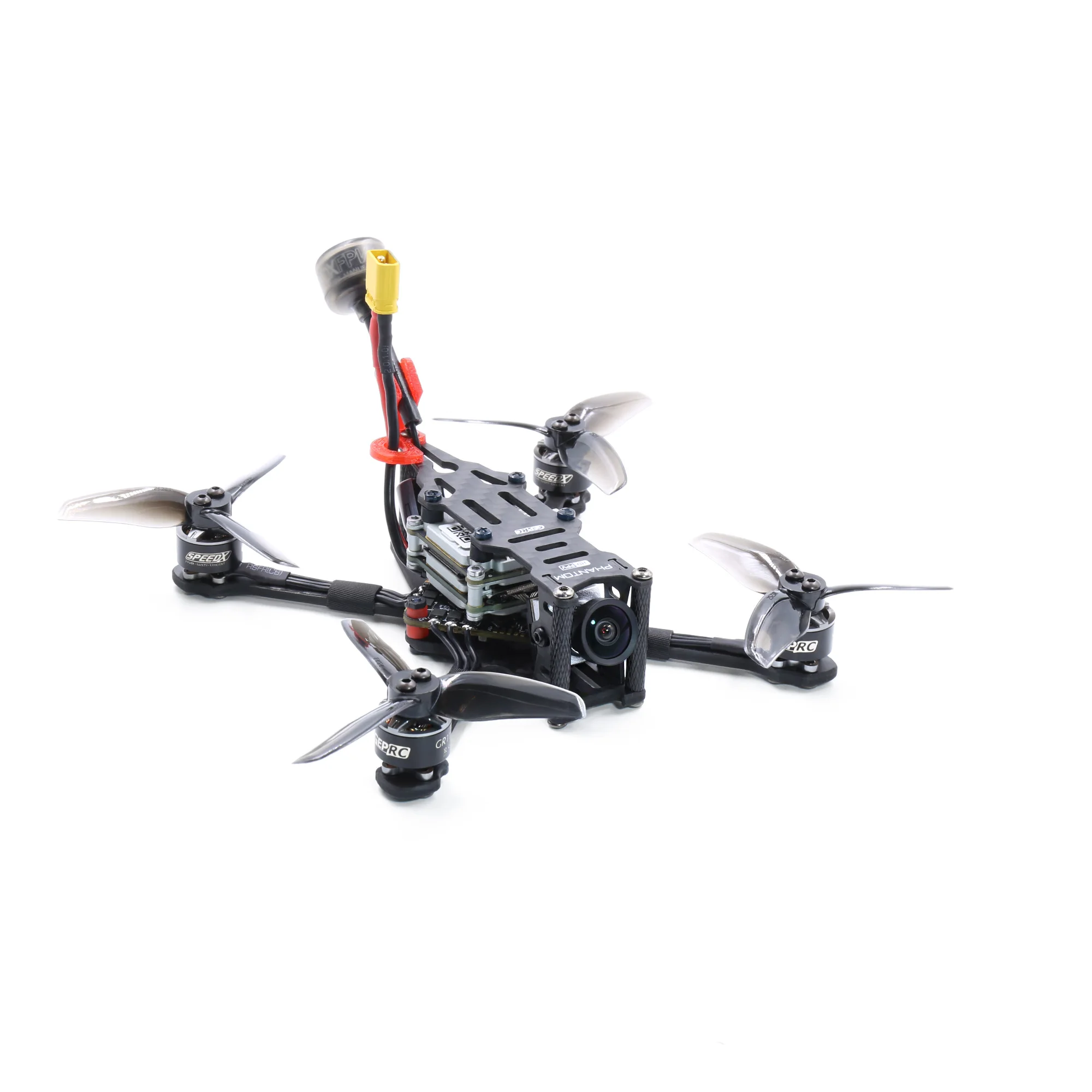

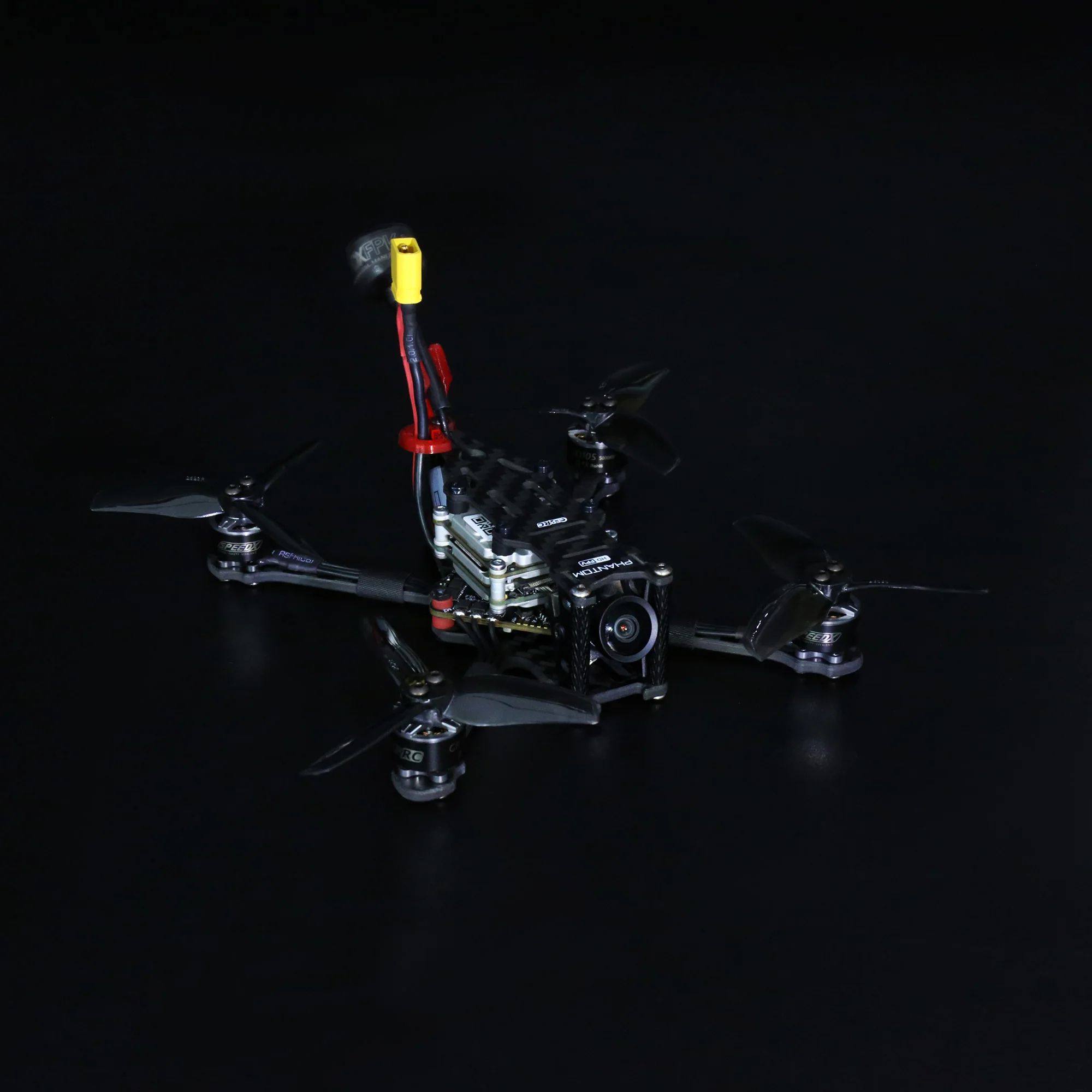

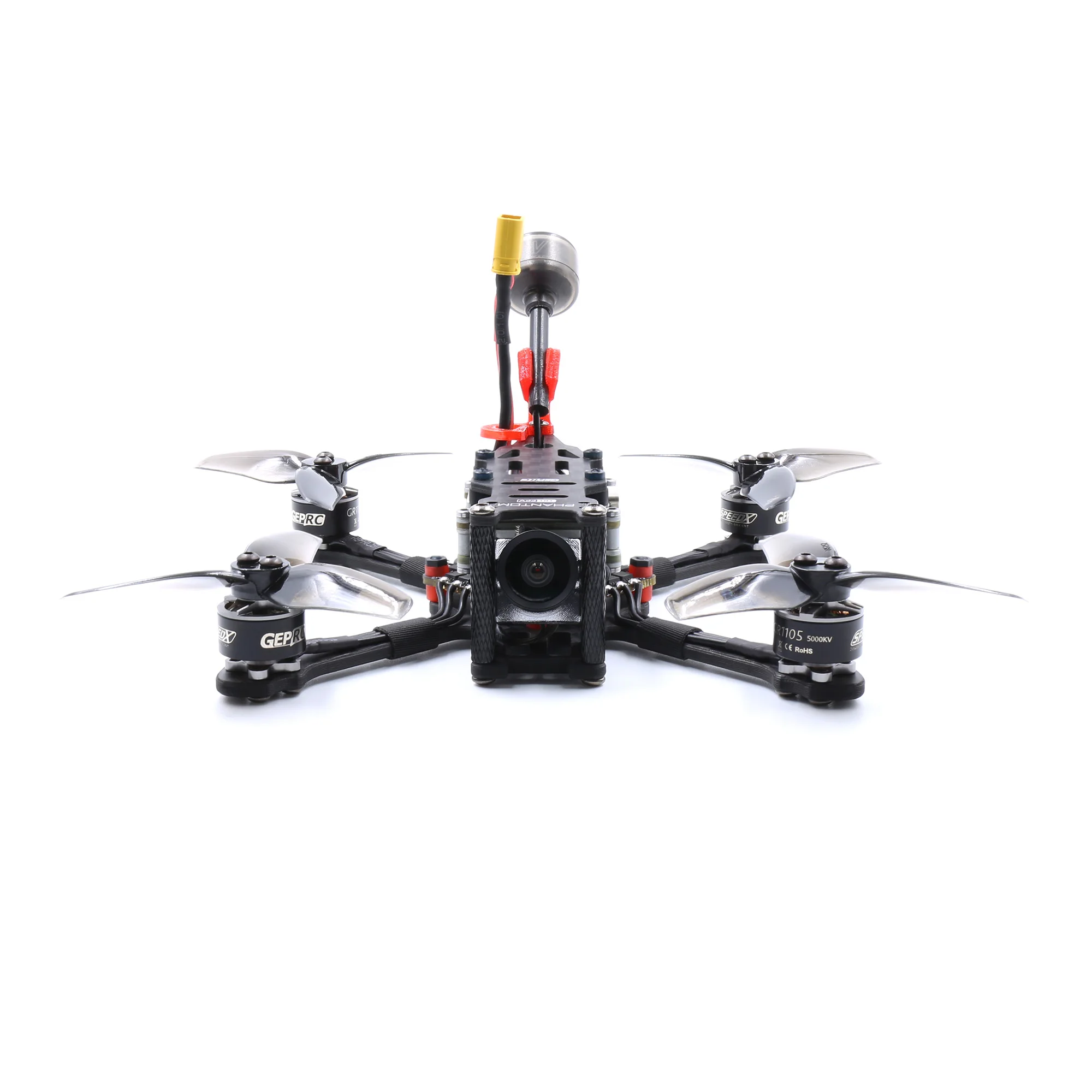

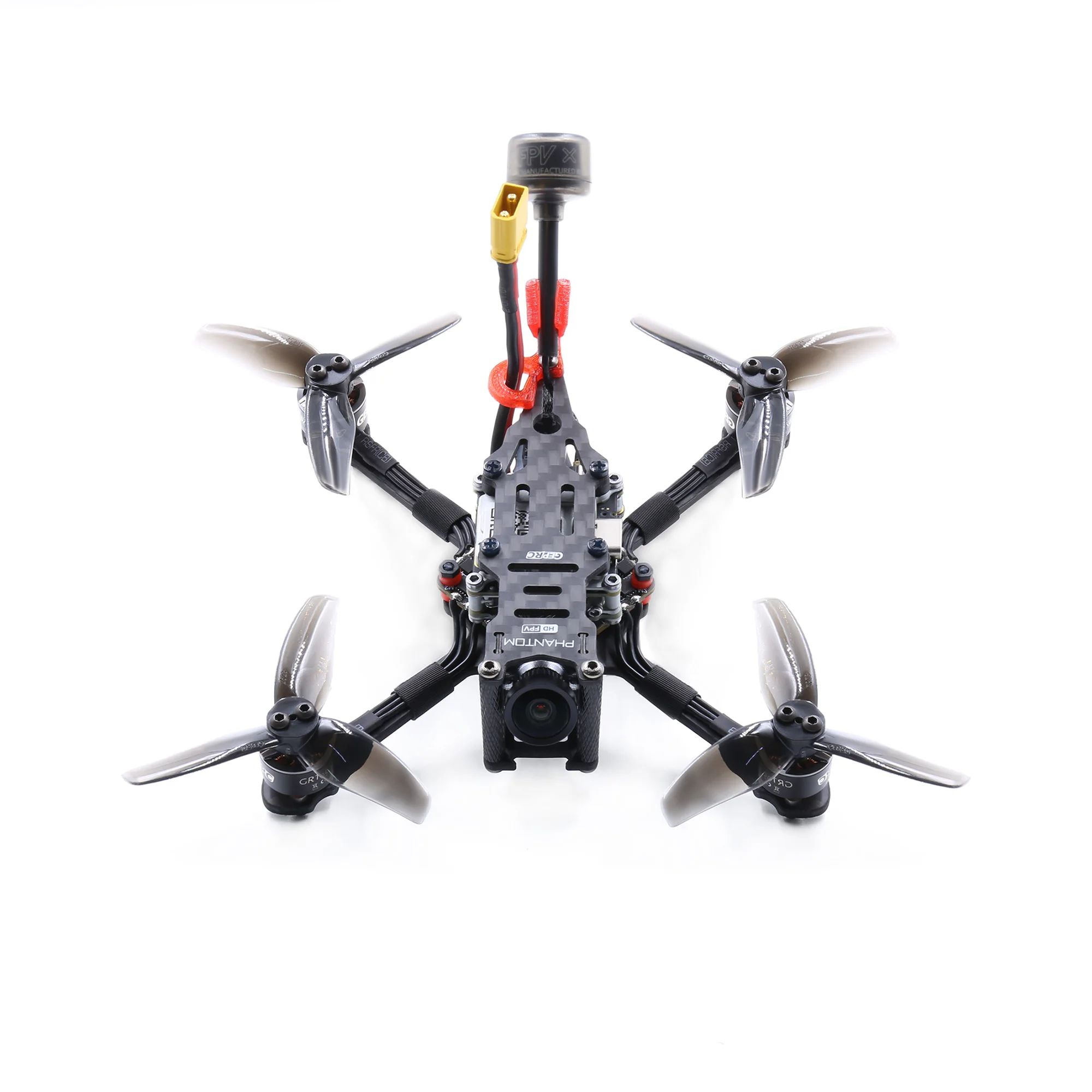

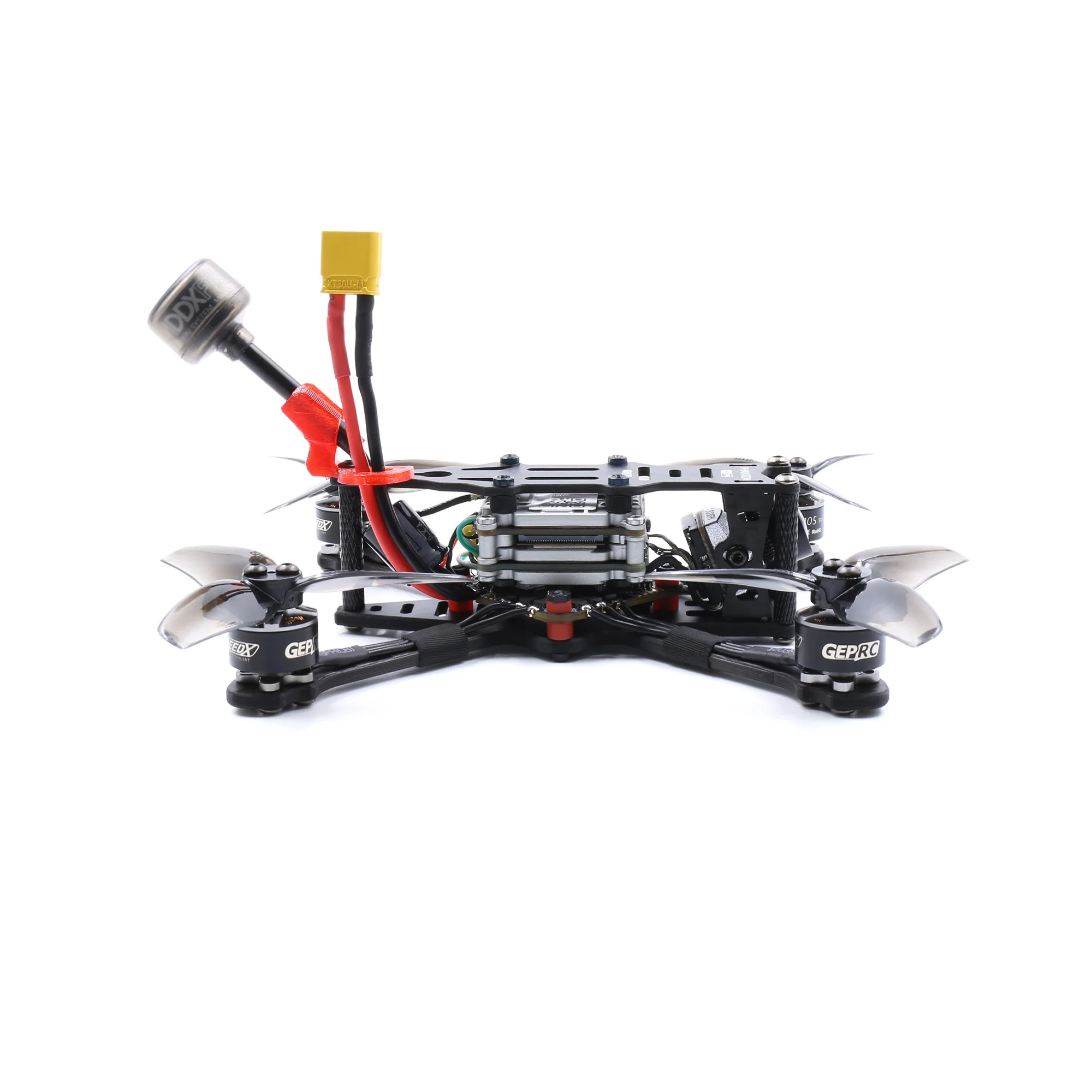

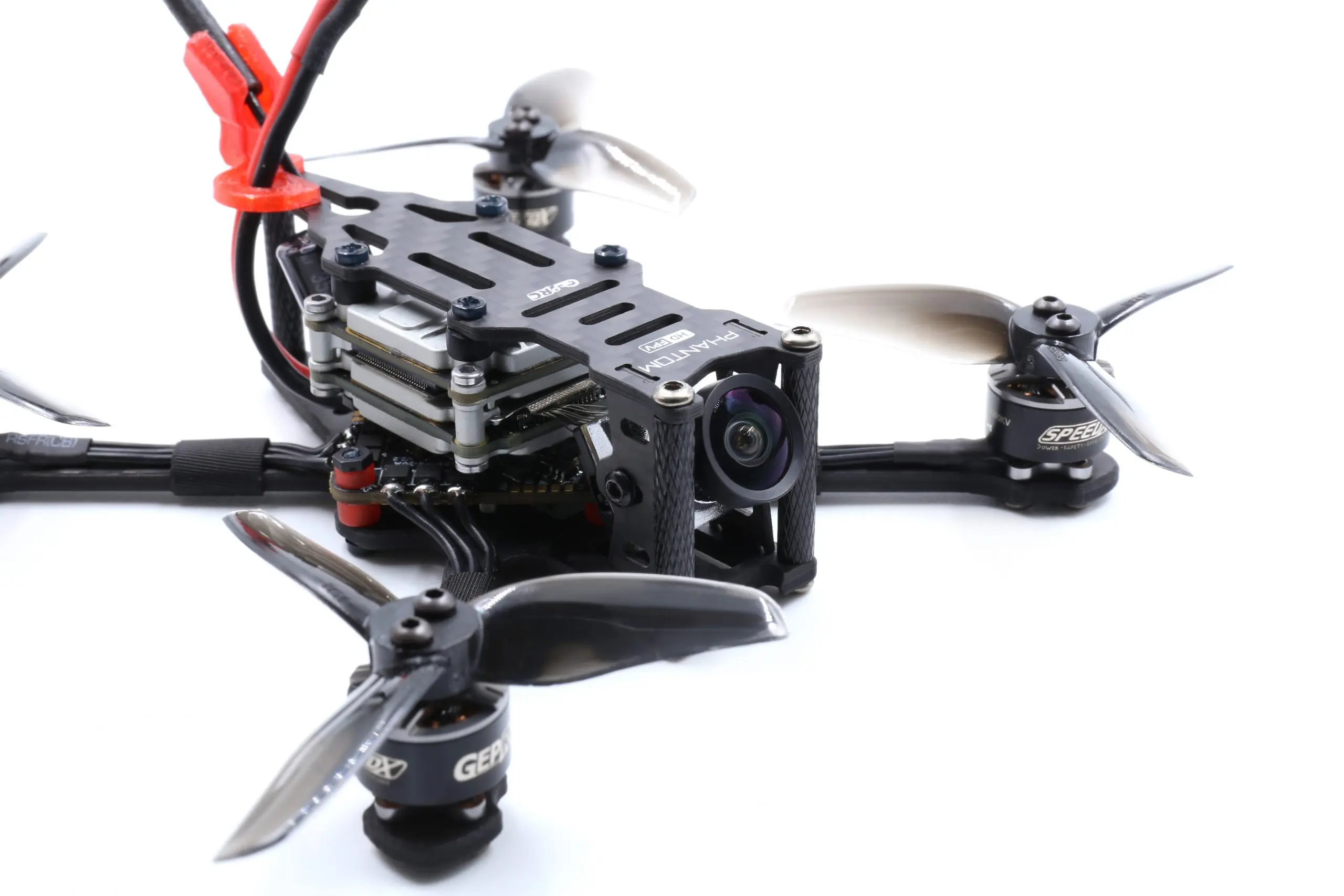

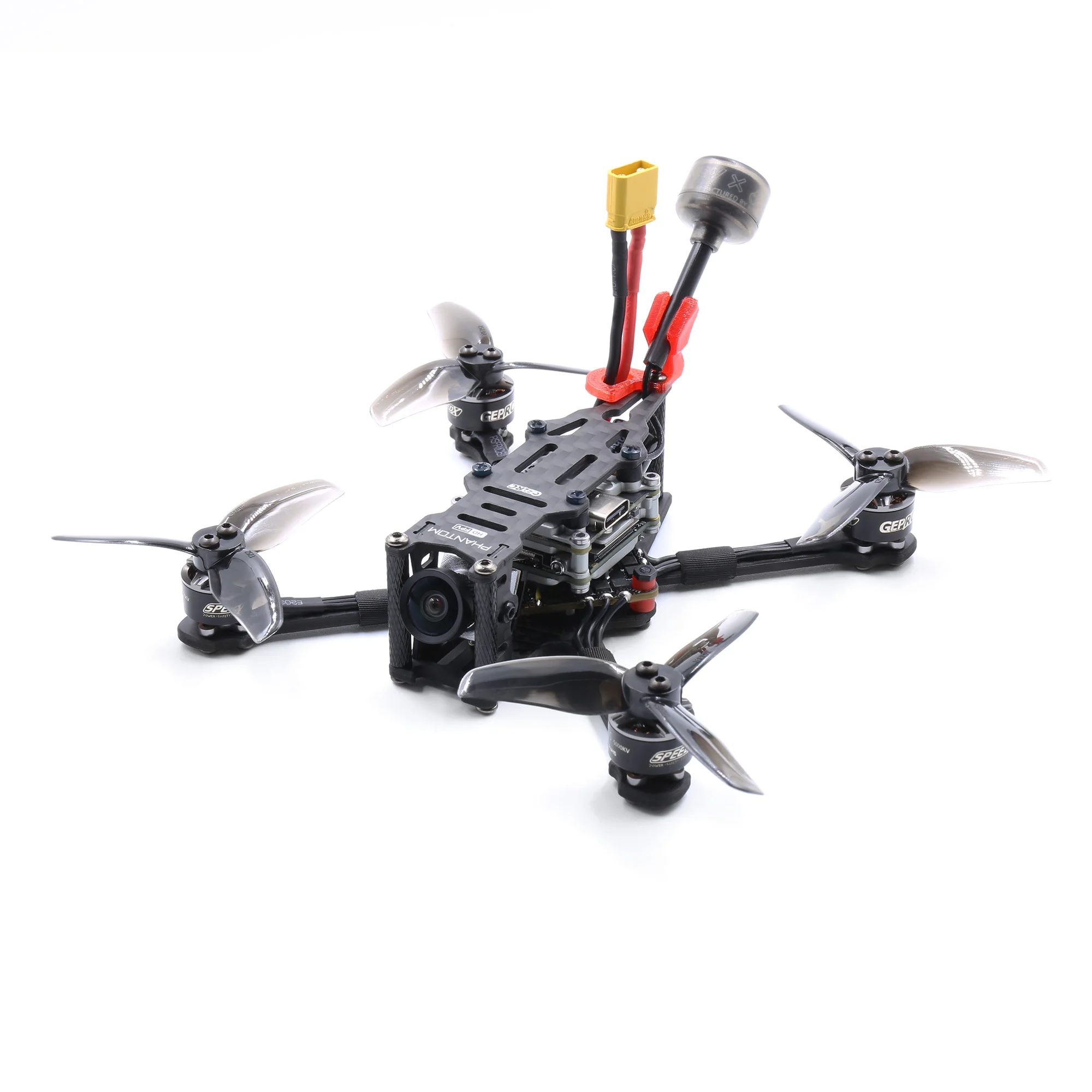

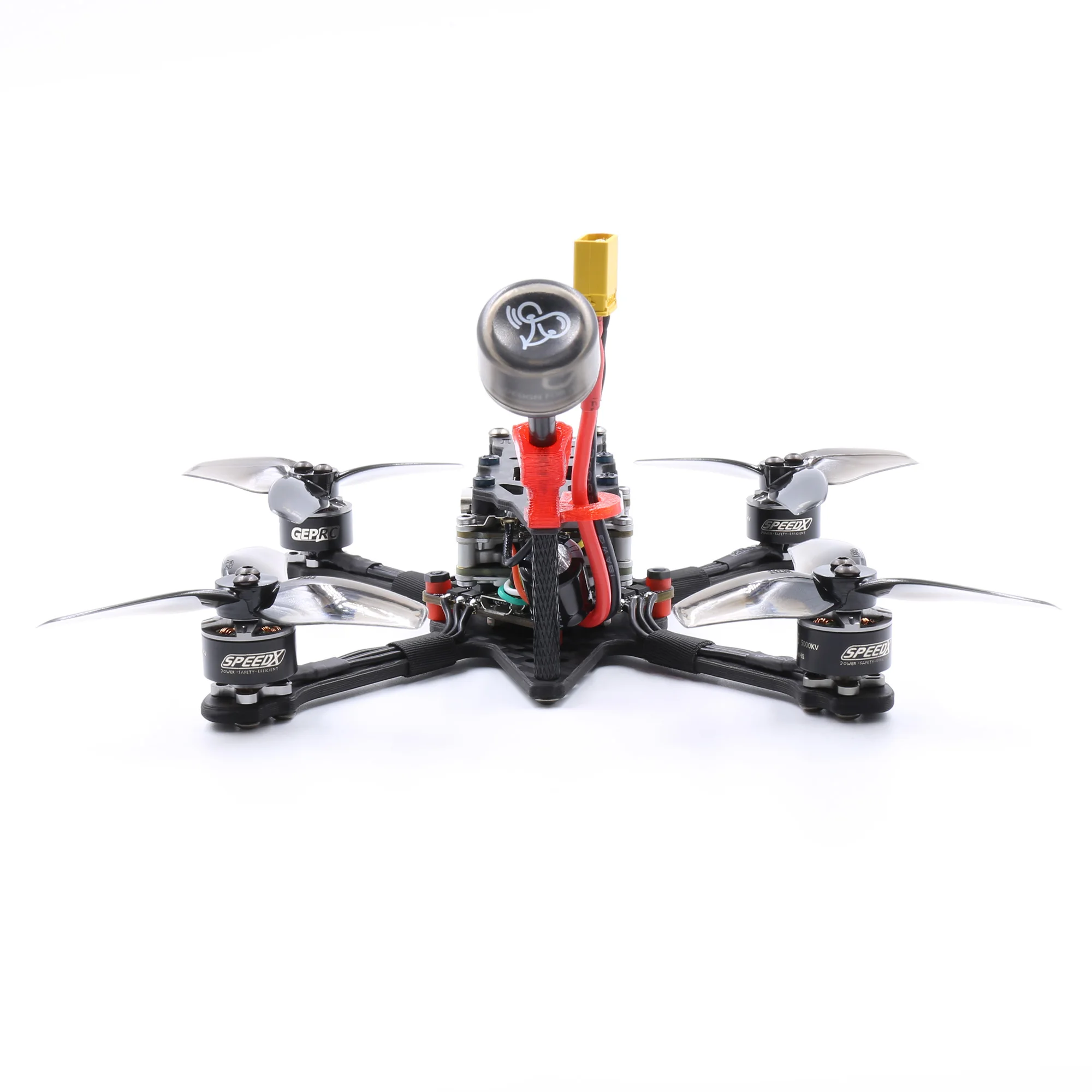

GEPRC Smart HD 2.5" Caddx Vista Nebula PNP

Summary:

Phantom toothpick FPV has been great loved of pilots since its release. It is pretty light, compact and flexible, and can be used for flexible cross flight in a narrow environment. Therefore, we have developed The Phantom HD.

Now, I’m very exciting to introduce phantom HD . Phantom HD keeps the extreme light weight, The total weight of about 92g. Phantom HD supports 4S battery, which is basically one of the lightest HD toothpick supporting 4S battery. Phantom HD has great agility and maneuverability. Because of its very small wheelbase,it can achieve a flying experience similar with 5-inch FPV. Combined with the HD glasses of DJI, it can get the fantastic flying experience of HD FPV, The feeling is wonderful. Using the latest GEP-20A-F4 AIO FC, it is stable incredibly.

The GR1105 5000kv motor and 4S 450mah battery, it has high efficiency, powerful and stable flight. Equipped with the latest GEPRC G2523 2.5-inch Props, G2523 is quite suitable for the perfect balance between Racing and Freestyle, It can maximize the comprehensive performance.

Phantom HD is carefully assembled and tested by GEPRC team, with excellent flight performance.

Features:

• Full 3K Carbon, High-strength frame

• Caddx Vista Neluba HD FPV System

• Build-in New GEP-20A-F4 AIO Flight Controller System

• Support 3S 450mAh-4S 450mAh battery(Don’t more than 4S 450mAh)

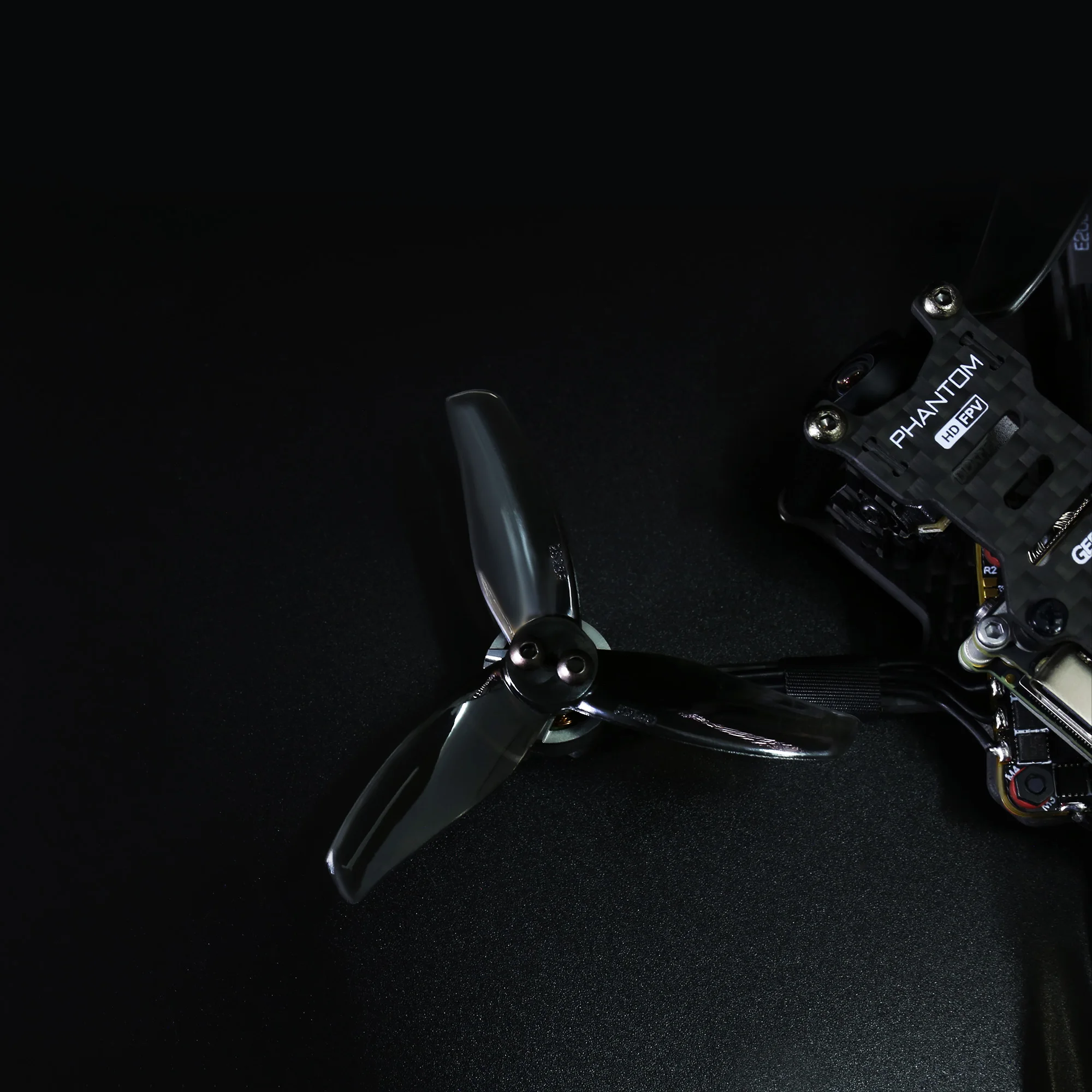

• Equipped With the new GEPRC G2523 2.5” high efficiency propeller

• Toothpick Frame kits, reasonable layout

• Weight is only 92g

Specifications：

• Brand Name：GEPRC

• Model: PHANTOM HD

• Frame: GEPRC GEP-PTHD

• Wheelbase: 125mm

• Flight Controller System：GEP-20A-F4 AIO

• MCU: STM32F411

• IMU: MPU6000 gyro/accelerometer (SPI)

• Camera HD：Caddx Vista Nebula

• Props: GEPRC G2523 2.5” props

• Antenna：5.8G

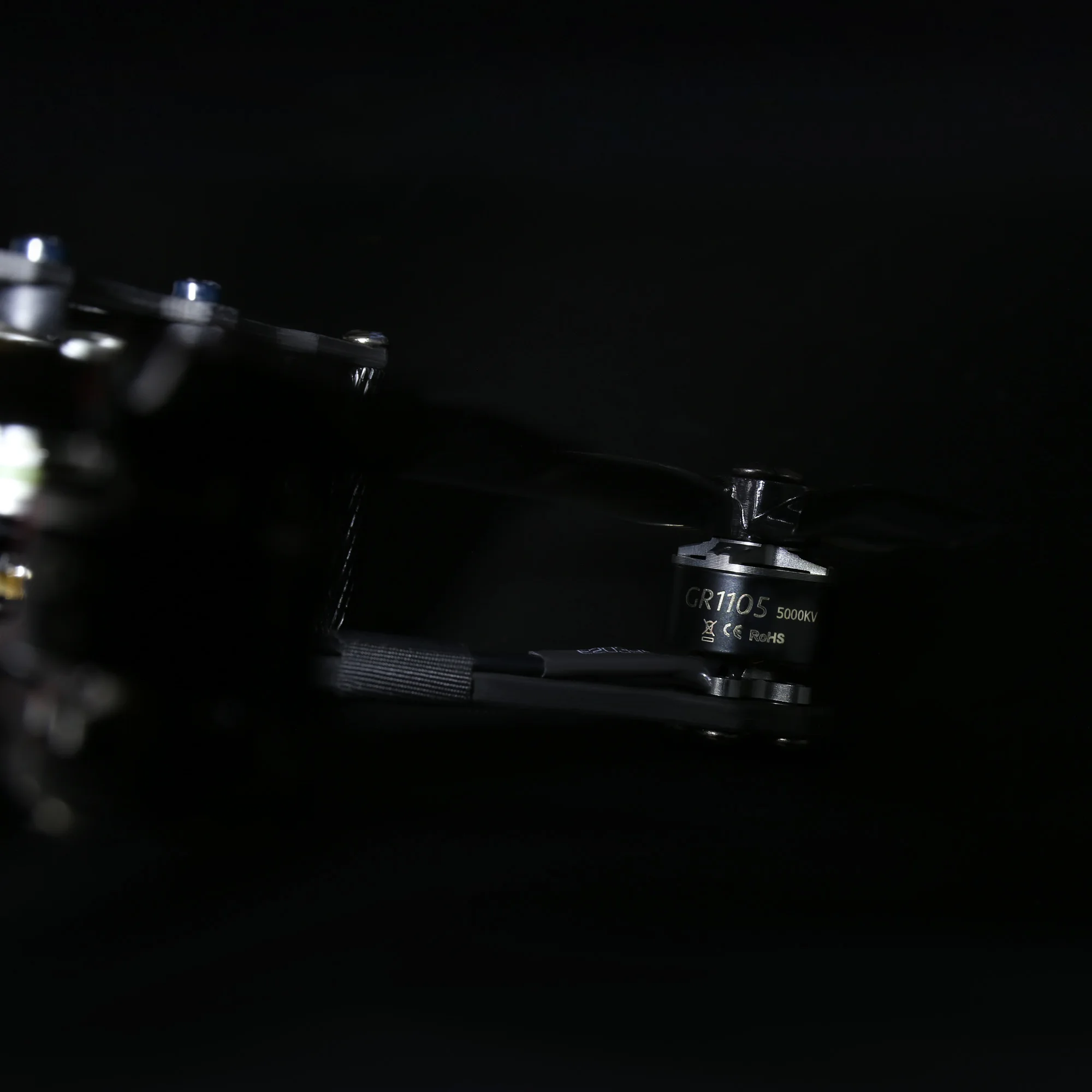

• Motors：GR1105 5000KV

• Weight: 92g

• Receiver options：PNP(With DJI receiver)，Frsky XM+， Frsky RXSR，FlySky A8S，TBS Nano RX

Including:

• 1x PHANTOM HD Quads

• 4x G2523 propeller (pair)

• 2x battery Strap

• 2x TPU print

• 1x antenna tube

• 2x EVA shock absorber

• 1x battery non-slip glue

• 1x screwdriver
