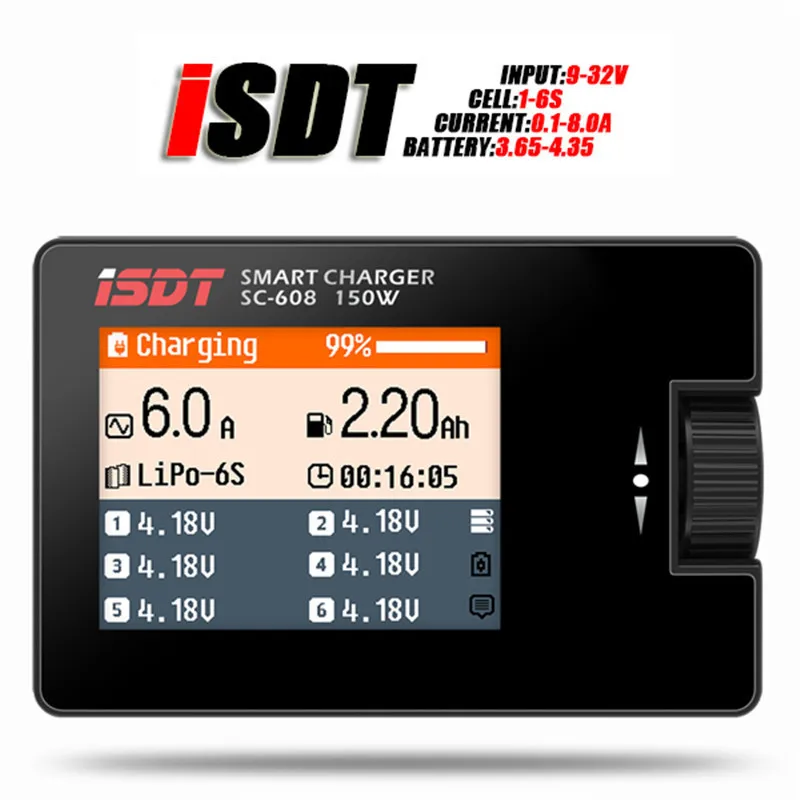

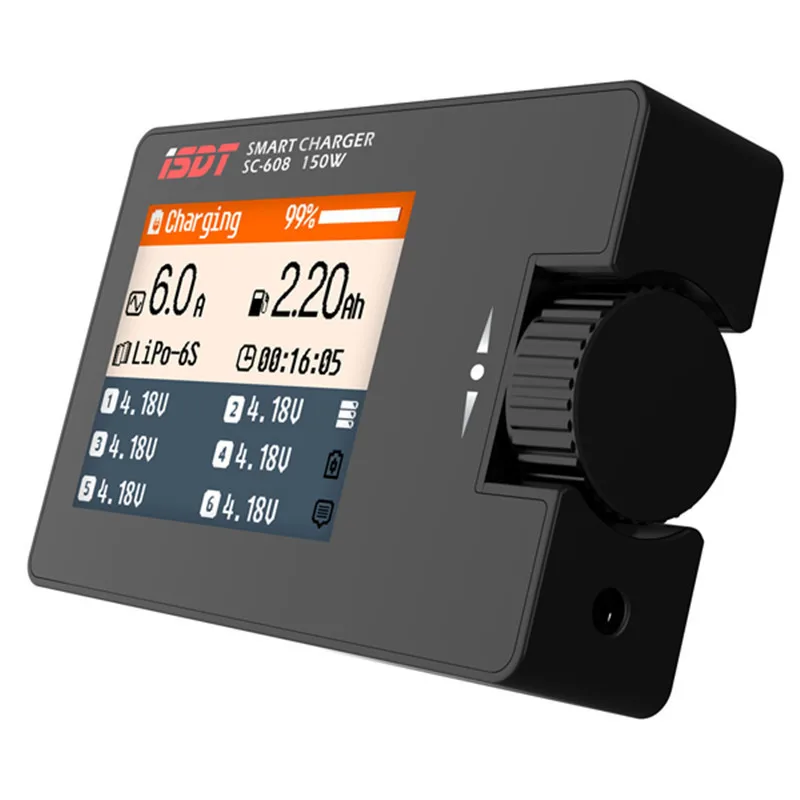

iSDT SC-608 160W

Компактное цифровое зарядное устройство iSDT SC-608 предназначенное для заряда всех типов современных аккумуляторов током до 8.0A (максимальная мощность 150W).





Зарядное устройство работает от источника постоянного тока 9В ~ 30В. Может быть использован любой аккумулятор большей емкости или напряжения заряжаемого.



Технические характеристики:



• Тип заряжаемых аккумуляторов -



• LiHV (3.8V) 1 ~ 6 элементов
• Li-Fe (3.3V) 1 ~ 6 элементов

• Li-Po (3.7V)  1 ~ 6 элементов

• Li-Ion (3.6V) 1 ~ 6 элементов

• NiCd/NiMH 1 ~ 18 элементов

• Pb 2V ~ 24V



• Источник питания постоянного тока 9 ~ 30V
• Ток заряда 0.1 ~ 20.0A (мощность 500W)
• Ток на балансере 500mA (на элемент)
• Ток разряда 0.1 ~ 5.0A (15W)



Особенности:



• Разъемы XT60 смонтированы в корпусе

• Цветной дисплей 2.4" IPS (320 x 240)

• Функциональная шайба управления
• Компактный размер 88 x 58 x 21 мм



При необходимости требуется блок питания (приобретается дополнительно).





CHANGE STARTS HERE
Innovative scOs User interface, simplest operating, hi-efficiency energy-converting, extremely impact, and it's just the beginning...

Specifications:
Input Voltage:    DC 9~32V
Output Voltage:    0~30V
Charge Current:    0.1~8.0A
Discharge Current:    0.1~3.0A
Max Charge Capacity:    150W
Max Discharge Capacity:    5W
Balancing Current:    500mA/cell
Balance Cells:    2-6S
Supported Batt. Type: :    LiFe/Lilon/LiPo/LiHv (1~6S)
NiMH/Cd(1~18S)
Pb(1~12S)
Display:    2.4''320x240 IPS LCD
Operating Temperature:    0~40°C
Storage Temperature:    -20~60°C
Dimensions:    88x58x21 mm
Weight:    110g

2.4" IPS Display
262K colors Hi-brightness monitor, up to 178°visible angle, brings outstanding display overcomes other chargers

scOs developed just for smart charging
Colorful and bright UI design, optimized display information, makes setup & working status clearer to read
Quick & simple function menu design, reduces operating steps up to 80%
Supports online update with PC, optimizes operating system, and improves user experience constantly

Hi converting efficiency, extreme power-volume ratio
Hi speed & efficiency synchronous power supply,
good heat-conduction with pure cooper, active heat-sinking with hi-speed fan,
make it possible to improve power by 300%

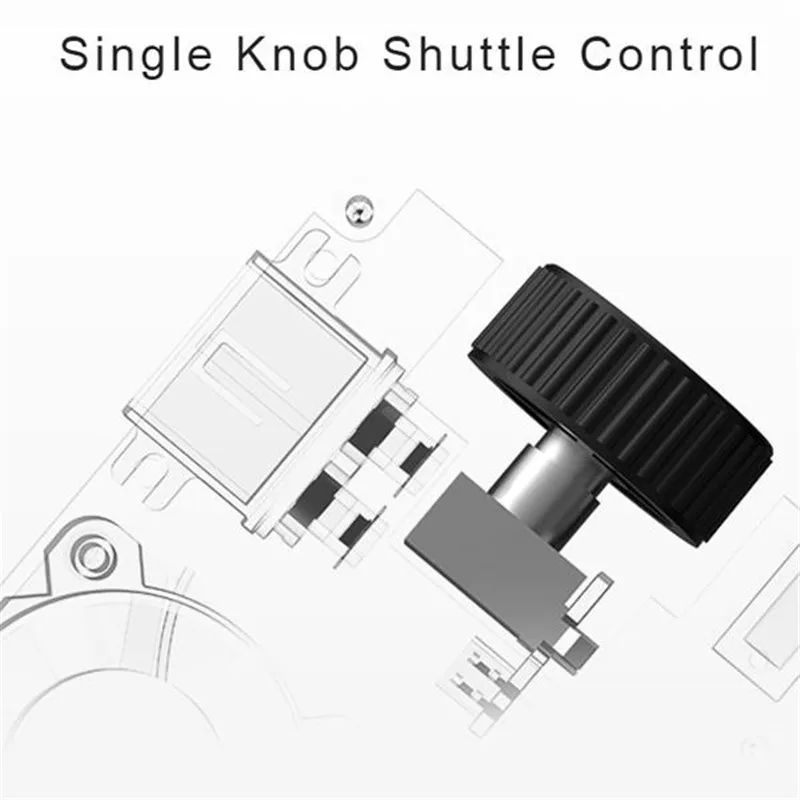

Single Knob Shuttle Control
Tired to fumble and push with finger tips? Difficult press now is replaced with smooth and natural single shuttle control,
one touch to set, makes charging with SC-608 a joyful experience.

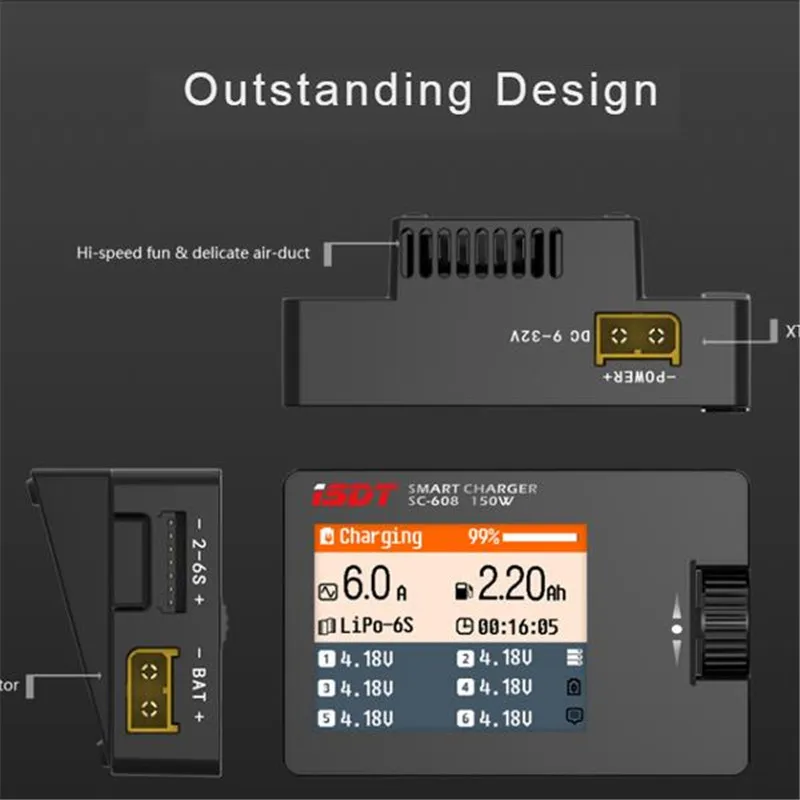

Outstanding Design
With unique design, possible to reduce the charger size as small as a cigarette pack, while improves the output capacity up to 150w att. Use XT-60 connector for input & output, connect battery more safely. Hi-speed fun & delicate air-duct, make it possible to reduce volume remarkably while guarantee adequate heat-sinking

ARM 32bit Hi-speed CPU,ARM Cortex-M4,32bit ultra fast calculations,Data processing capacity enhanced by 20 times

Operation Instruction:
Connect power supply, wait for initiation self-check to finish
Set parameters suitable for your battery through display and shuttle knob
Enjoy smart and quick charging with SC608.

Package Includes:
1 x iSDT SC-608 150W 8A MINI Smart LCD Balance Charger












  </
