Radiomaster Zorro ELRS 2.4GHz

RadioMaster Zorro Radio Control CC2500/4in1/ELRS Version

Features:
The ZORRO support both OpenTX and EdgeTX operating systems and will be available in four RF configurations – CC2500, SX1280 (ELRS), 4-in-1 and CCS2500+TBS (Masterfire Combo).The radio is ergonomically designed for comfort.

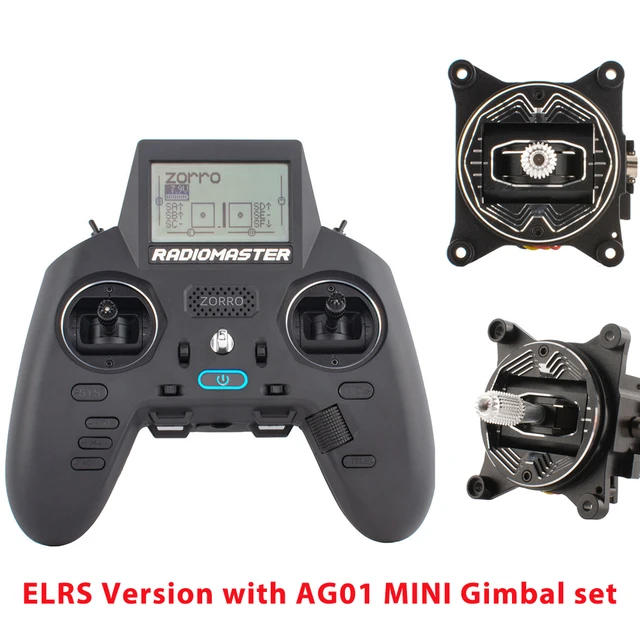

Physically, the controller has a 128×64 monochrome LCD display with adjustable brightness, a metal roller, adjustable HALL gimbals, replaceable and/or upgradable rubber “non-slip” grips, and the ability to change between Mode 2 and Mode 1 without disassembling. It also features audio output, an SD-card slot, a DSC port and a USB-C port.

Specification:
Physical dimensions:170*159*108mm
Weight:350 grams
Operating frequency:2.400GHz-2.480GHz
Internal RF Options:CC2500 multi-protocol/4-in-1 multi-protocol / ELRS 2.4GHz
Supported protocols:Module dependent
RF power:CC2500 and 4-in-1:20dBm max./ELRS: 22dBm max.
Antenna gain:Folding 2db
Operational current:160mA@8.4V
Operational voltage:6.6-8.4v DC
Control distance:>2km@20dbm
Operating system:OpenTX/EdgeTX Compatible
Control channels:Maximum 16 (Rx dependent)
Display:128*64 Monochrome LCD
Battery:2 x 18350 (Not included)
Charging:Built in USB-C Charging
Gimbal:Hall-effect
Module bay:Nano size (Compatible with TBS Nano Crossfire/Nano Tracer/IRC Ghost)
Firmware Upgrade method:Via USB or SD card (SD Not included)

Radio Firmware:
https://www.open-tx.org/
http://edgetx.org/

RF Firmware
CC2500 & 4-in-1 Multi-module https://www.multi-module.org/basics/supported-protocols
ELRS : –https://github.com/ExpressLRS/ExpressLRS

Package Included:
1*Radiomaster Zorro Radio Control
