DarwinFPV AIO F4 Bluejay ExpressLRS ELRS 2.4G 1-3S 15A 4in1 ESC

ELRS F4 AIO 15A

FC MCU: STM32F411CEU6(100MHz)

IMU: ICM-20689(SPI)

OSD: Betaflight OSD AT7456E

RF: SX1280(2.4GHz)

BEC output: 5V/2A & 3.3V/0.2A

Firmware target: betaflight_4.3.0_BETAFPVF4SX1280

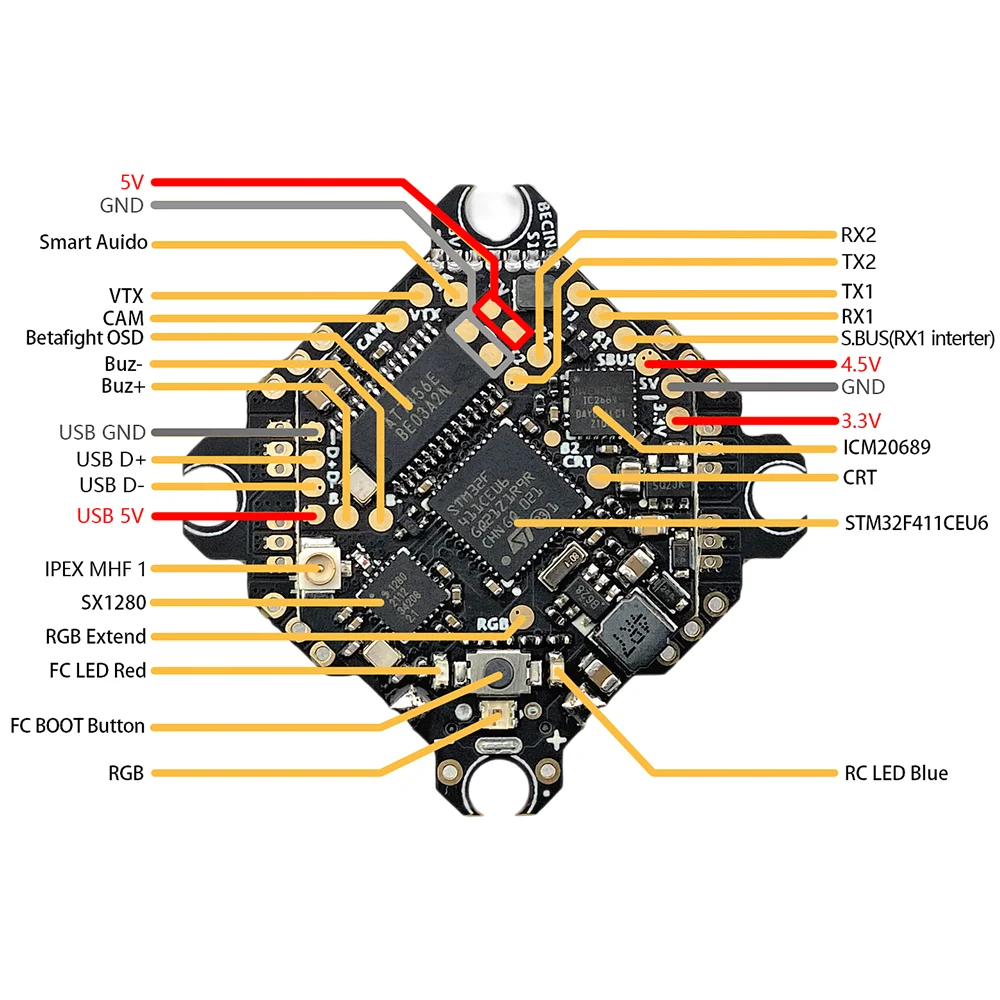

2x Uarts(1,2)

1x SBUS(RX1 inverter)

1x Softserial_TX option

1x External USB solder pad

1x CRT(Current)

1x BUZZ

1x RGB

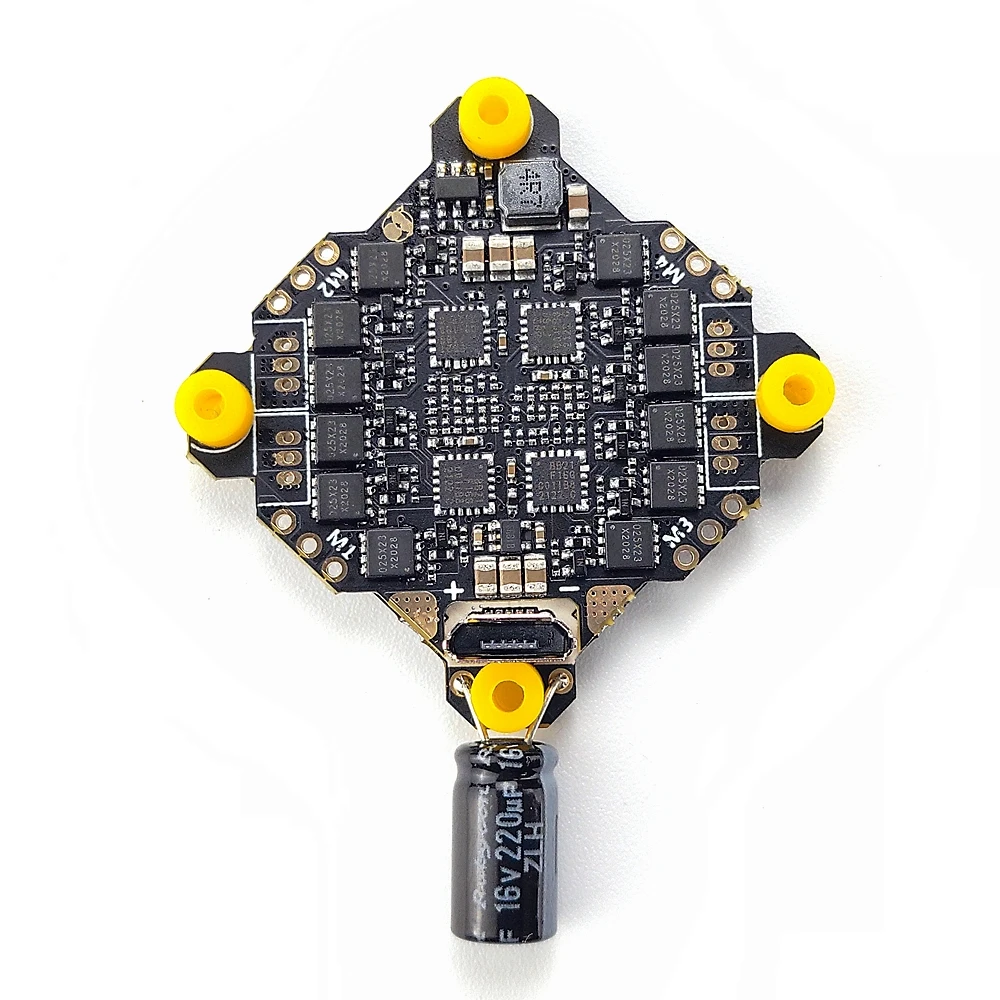

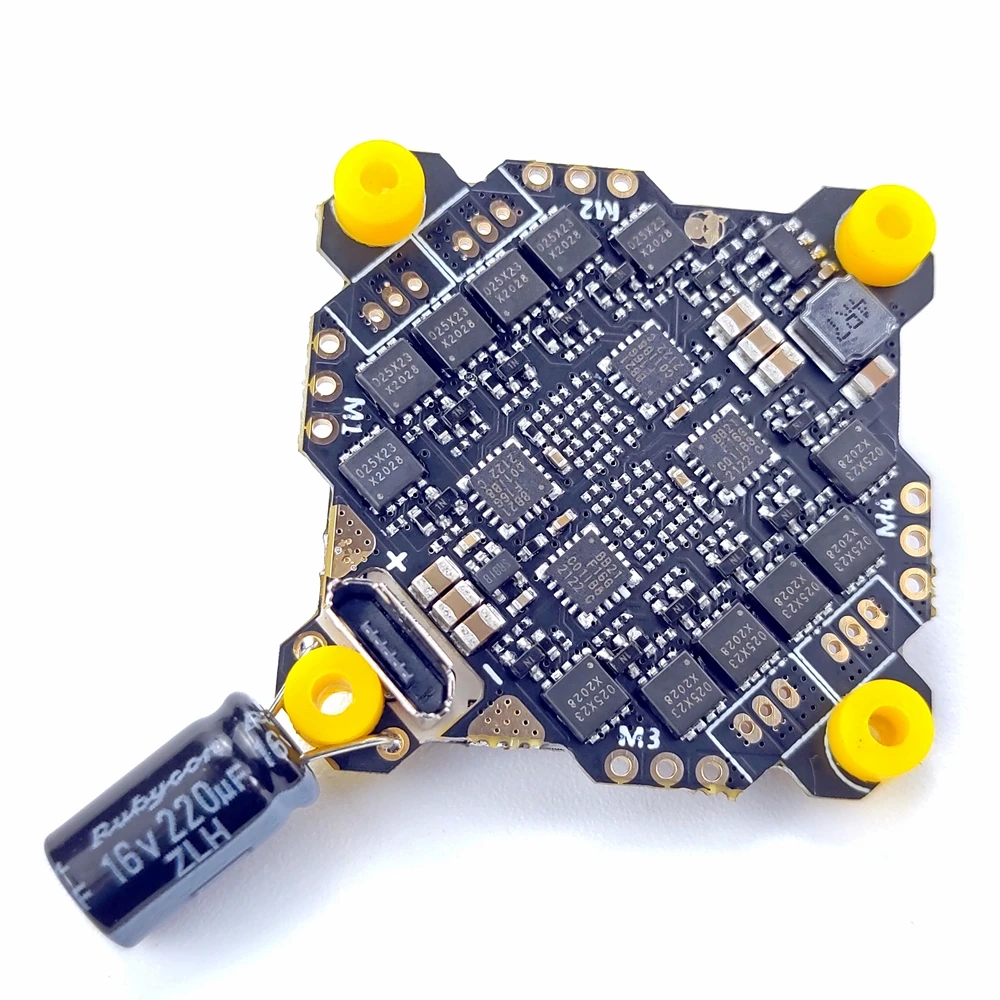

ESC MCU: EFM8BB21F16G

Input Voltage: 1-3S LiPo

Continuous current: 15A

MAX current (5seconds): 17A

ESC Traget: Bluejay_S_H_50_48_v0.14

Size: 37x36x10.8mm

Installing Hole: 25.5x25.5mm(M2)

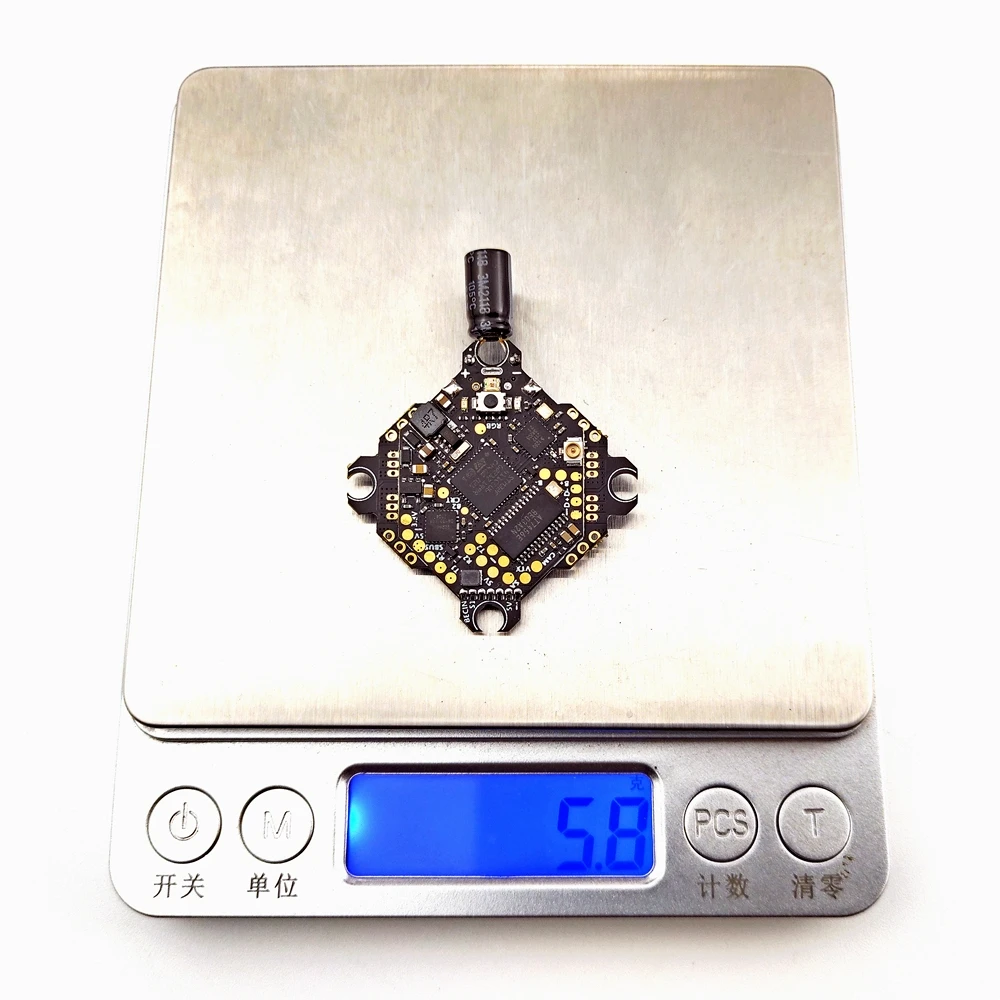

Weight: 5.0g

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.
