Frsky RXSR-FC OMNIBUS F4 Fireworks V2
Коптеры → Гоночные FPV-дроны → Полётные контроллеры → ПК F4 → Комплекты F4 + приёмник → Frsky RXSR-FC OMNIBUS F4 Fireworks V2Рекомендуемые магазины↓ Цены в других магазинах

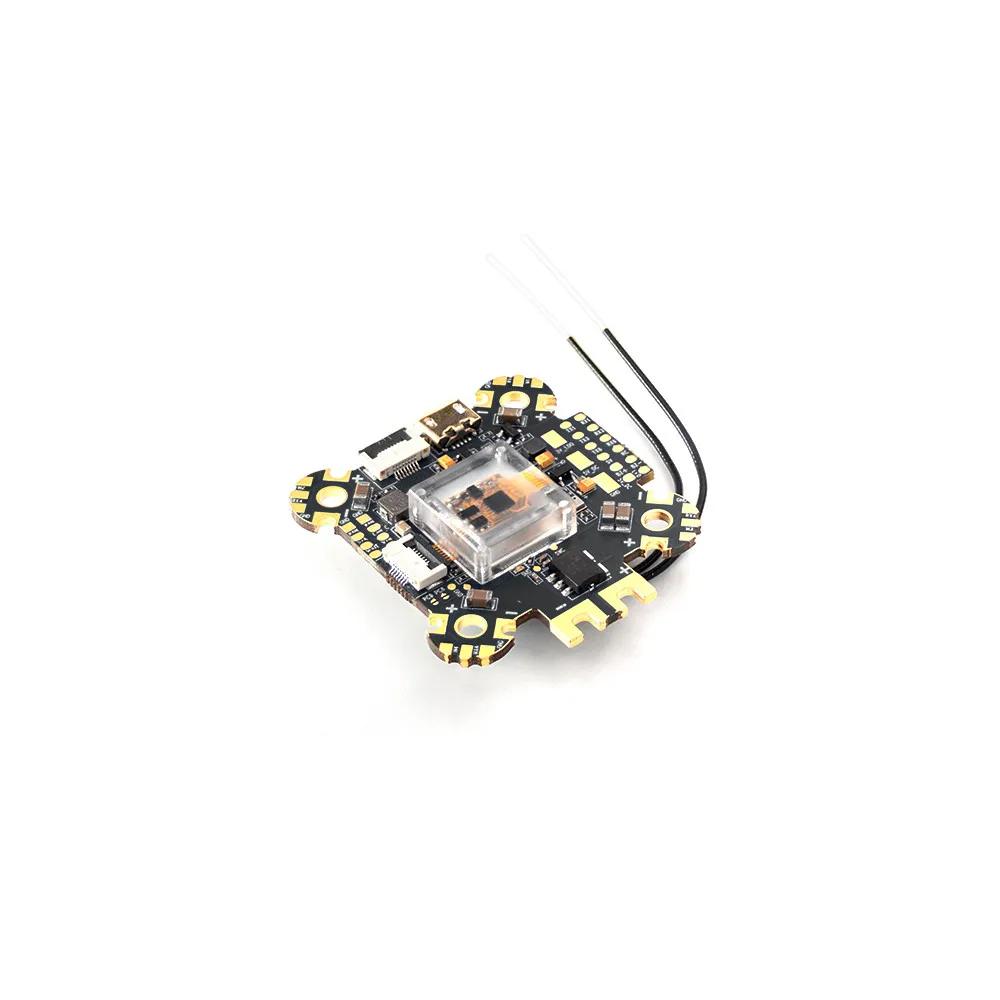

Frsky RXSR-FC OMNIBUS F4 Fireworks V2 Flight Controller with RXSR Receiver ICM20608 OSD for RC Drone
Specification:
Brand name: Frsky
Item name: RXSR-FC OMNIBUS F4 Fireworks V2 Flight Controller
Specification:
Brand name: Frsky
Item name: RXSR-FC OMNIBUS F4 Fireworks V2 Flight Controller
STM32 F405 MCU, Runs Betaflight firmware (supported from v3.2)
FrSky RXSR receiver in dampening box
ICM20608 over SPI Bus in dampening box (optional MPU6000)
30.5x30.5 mm mounting holes
Supports Lipo direct plug-in (3-6S)
Supports 5V 1A BEC output (Buck)
Supports 8V 1A BEC with LC filter output for the camera and VTX (Buck)
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
Built-in hall Current Sensor
Built-in Professional Level PDB
More caps to reduce power noise
Description:
The FrSky RXSR-FC (OMNIBUS F4 Fireworks) uses the ICM20608 over SPI to produce stable flight performance. Integrated with the RXSR receiver mounted on-board in a dampening box and the ICM20608 runs perfectly under 32k Gyro loop. Also onboard are a barometer and AB7456 OSD chip for the Betaflight integrated OSD.
The RXSR-FC (OMNIBUS F4 Fireworks) supports 3-6s Lipo direct input, build-in hall Current Sensor and Power Filter as well. The on Board PDB is tweaked by using 12-Layer PCB design, resulting in only 0.2-0.5 mohm internal resistance from input to each output pad.
Features:
Tantalum Capacitors can be added to the board (not included)
Solder pads added for VTX and Camera Control (next to Video pads)
The orientation of IMU FPC optimized
Gyro ribbon cable redesigned to fit without extending outside the board
Added an 8v BEC and LC Filter for the camera and VTX power
This board now has 5 UART ports
Поделиться
Цены на Frsky RXSR-FC OMNIBUS F4 Fireworks V2 в магазинах
Найдено предложений: 19 (Banggood1, AliExpress1)
| Магазин | Остаток на складе | Цена лота | Цена доставки | Купон / промокод | Количество в лоте | Цена за единицу |
| Banggood | Нет на складе | ₽6173 $58 | 1 | ₽6173 $58 | ||
| AliExpress | На складе много | ₽7983 $67 | + ₽432 $3.63 | 1 | ₽8414 $71 |
