SKYRC PC1080 1080W 20A Dual

SkyRC PC1080 is a dual channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, also the time saving synchronization mode.

Specifications

Input Voltage:100-240V

Output Power:1080W (540W x 2)

Discharge Power:100W (50W x 2)

Charge Current:1.0-20.0A x 2

Balance Current:1.2A

Battery Type:LiPo/LiHV

Battery Cell Count:6S

Working Mode: Balance Charge Mode/Storage Mode/Charge Mode

Net Weight:4.88kg

Size:272x202x118.6mm



- Maximum Charge Power:1080W

- Maximum Charge Current:20A

- Using advanced 32bits high speed CPU from STMicroelectronics, processing capability improves 20 times.

- High Frequency Capacitor

Using high spec large capacitor, ensures the charger can work properly for longer period of time.

- Dual Ball Bearing High Speed Cooling Fans

Dual ball bearing high speed cooling fans with wing type blades design, provides good ventilation and a cool working condition.

- High Density Fin-type Aluminum Heatsink

Fin-type design, large surface, greatly improving heat dissipation, ensures long time stable working performance.

- LiPo & LiHV Supported

It can fast charge, balance charge and storage both LiHV and LiPo batteries. Press “UP” and “DOWN” key together to switch battery type.

- 3 Working Modes

FAST CHARGE

The science of the allocation of fast full time and balance time

BALANCE CHG

High accuracy balance battery voltage, automatic regulation

STORAGE

The maximum discharge power is 50W, automatic discharge

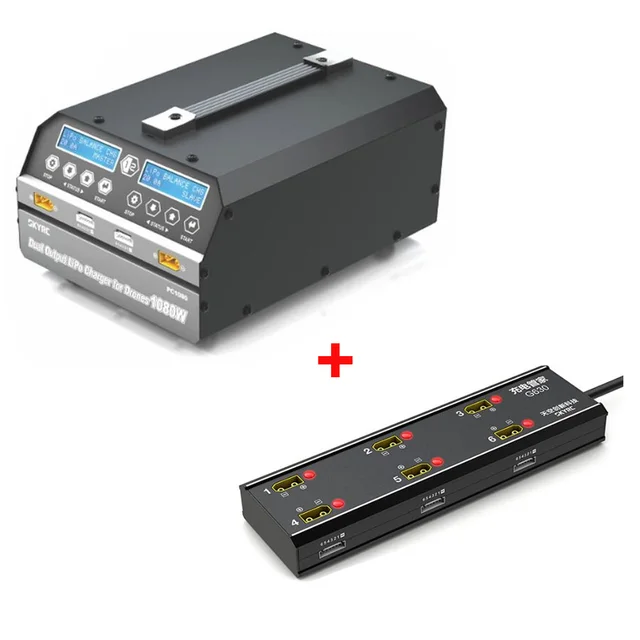

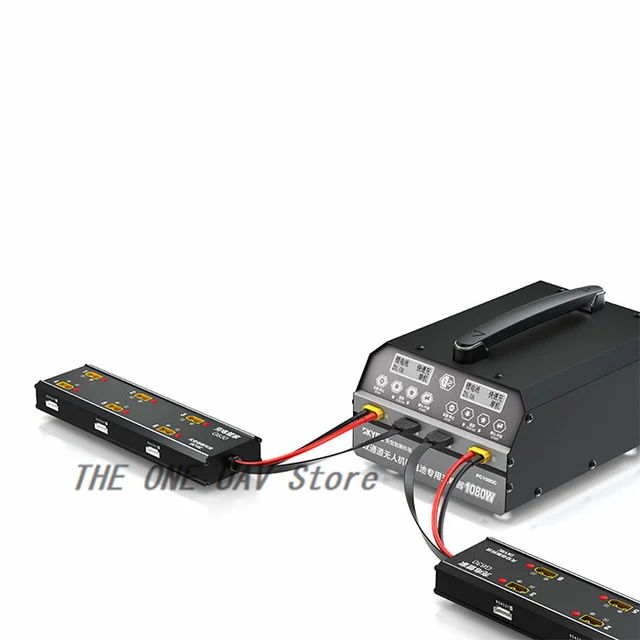

PC1080 pairing with G630 charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to its remaining capacity (percentage), the one with highest capacity will be charged first (both channels applies the same rule).
