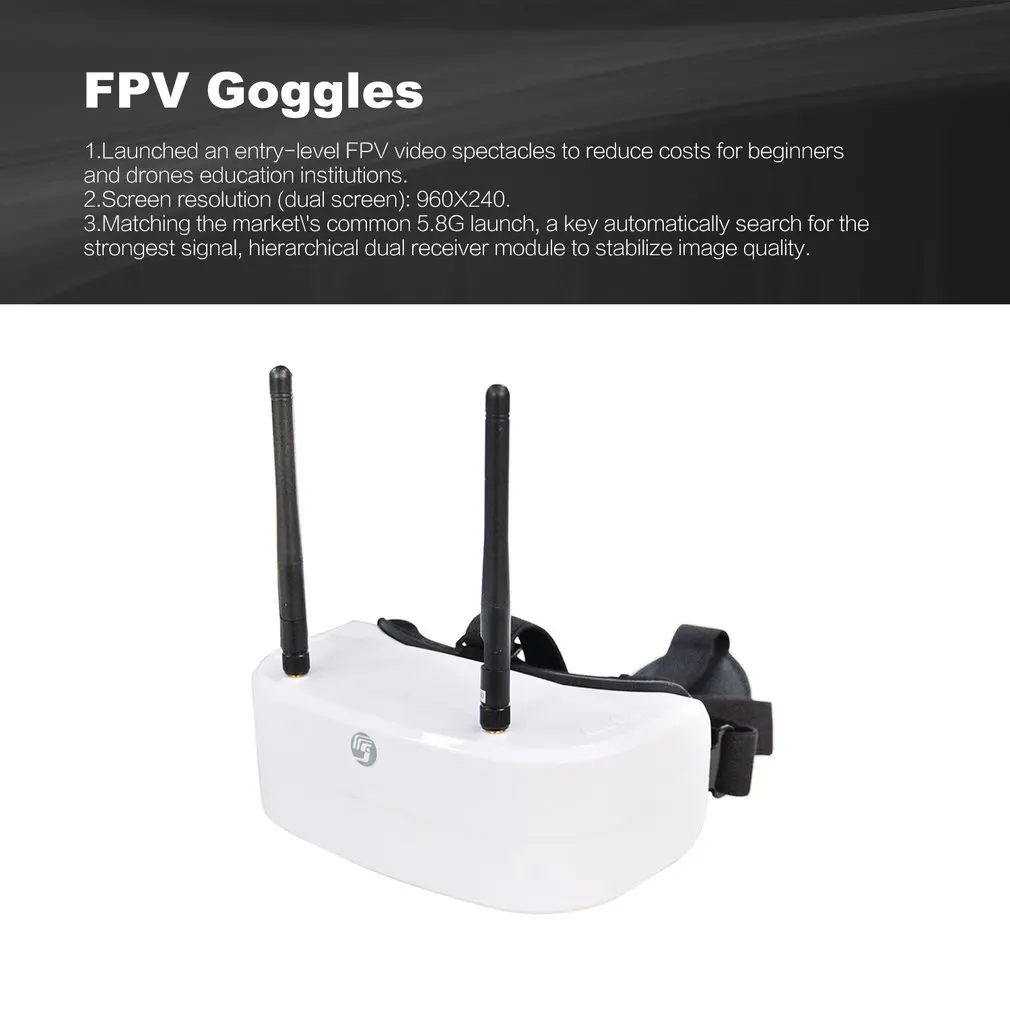

Launched an entry-level FPV video spectacles to reduce costs for beginners and drones education institutions. This section of FPV glasses equipped with a 960 * 240 resolution dual screen display; line of sight free adjustment; matching the market\\\'s common 5.8G launch, a key automatically search for the strongest signal, hierarchical dual receiver module to stabilize image quality; more TF card Live video lets friends share your happiness. Beautiful appearance, light weight, and comfortable to wear according to the structure of the human face.

Preview interface:

1. Video icon The default icon color is blue under normal conditions, the icon is red when recording, and video time is displayed behind the video icon

00:00:00 Hours:Minutes:Seconds.

2. TF card icon The default icon color is blue in normal state, and it is red when there is no TF card or TF card is not recognized. Behind the TF card icon

Display TF card remaining space 00.00 G.

3. RF R or RF L indicates the receiving module that is currently operating.

4. BAND: E indicates that the receiving module currently operates in the E-band, with frequency bands A, B, E, F, R, and L.

5. CH: 1 indicates that the receiving module is currently working on channel 1, channel 1, 2, 3, 4, 5, 6, 7, 8.

6. 5705MHz indicates the current working frequency, frequency of the receiving module, and the corresponding relationship between frequency bands and channels. See the frequency band and channel list.

7. Battery level and status:

2 video playback interface:

1. : Indicates that the current video segment is played back at 4x speed.

2.0011: Indicates that the current video file is in paragraph 11.

3.00:01:18: The current video file segment length is 1 minute 18 seconds.

4.00:01:04 : Indicates that the current video file segment has been played for 1 minute 04 seconds.

Basic parameters:

1. Input power: DC6-28V DC12V/380mA, charging current 300mA max.

2. Screen resolution (dual screen): 960X240

3. AV output terminal ф 3.5mm, video output impedance 75Ω, audio output impedance 10kΩ.

4. input power DC socket diameter D6mm, inner needle diameter D2.1mm.

5. TF card speed CLASS 10, TF card maximum volume 32GB.

6. Micro USB data interface, easy to save files.

7. Optional battery 3.7V/600mAH L*W*H 70*18*09 mm (standard does not need to be purchased separately)

8. Adjustable pitch: Minimum span: 58mm Maximum span 63mm

9. Length, width and height: L 175mm W 102mm H 68mm

10. Overall weight: 278g

Parts List:

1.2PCS antenna

2. Power cord

3.AV line
