Original Arkbird 433MHz 10 Channel FPV LRS UHF Fhss System Transmitter and Receiver TX+RX Set
Arkbird 433MHz 10 Channel FPV LRS UHF Fhss System is compatible with any 6 channels or above radios, Such as: Futaba, JR, Frsky,WFT, Flysky, mc6, walkera, spektrum, graupner, hitec......
For long range FPV flight, Arkbird have produced this module and repeater station radio system compatible with all transmitters. You can either plug this transmitter into the module pins on the back of your PPM transmitter or use it as a repeater station by plugging it into any receiver, making this the most versatile and easy to use unit for long range FPV flying. It has adjustable power output from 100mw-1400mw giving excellent range and operates on FHSS for effective frequency hopping.
Fully compatible with the Arkbird autopilot and OSD system, it can be connected via the 3 wire plug and gives full 10 channel functionality by converting the existing Ch 1-4 into Ch 7-10. This will also allow the Arkbird unit to control a camera gimbal with adjustable stability augmentation (Arkbird OSD firmware needs to be upgraded to v3.1020 or newer). This unit really is the easiest, most reliable and simple solution for long range FPV flight and because its made by Arkbird, you know it will work very well.
*Full and easy to follow installation instructions are available for download from the files tab.
Features:
• Advanced FHSS frequency hopping system
• Adjustable power output (100mw-1400mw)
• Tuner and repeater modes
• No soldering required, just plugs into your model and transmitter
• 10 channel servo output
• Rapid 20ms radio link
• Compatible with Arkbird autopilot and OSD
• Compatible with ALL transmitters (via tuner or repeater modes)
• No programming knowledge needed, unit is plug and play
• Failsafe protection
• Included all hardware and antennas needed for operation
Specs:
Dimensions (Transmitter): 73 x 70 x 24mm
Antenna Length (Transmitter): 201mm
Weight: (Transmitter with Antenna): 116g
Dimensions (Receiver): 44 x 26 x 10.5mm
Antenna Length (Receiver): 155mm
Weight (Receiver with Antenna): 26g
Frequency: 433MHz
Radio Output: 100mw-1400mw
Power Input (Transmitter): 2-3s (7-12.6v)
Power Input (Receiver): 2-3s (4-12v)
Peak Current (Transmitter): 400mA @ 12v
Peak Current (Receiver): 120mA @ 5v
Range: Full Range

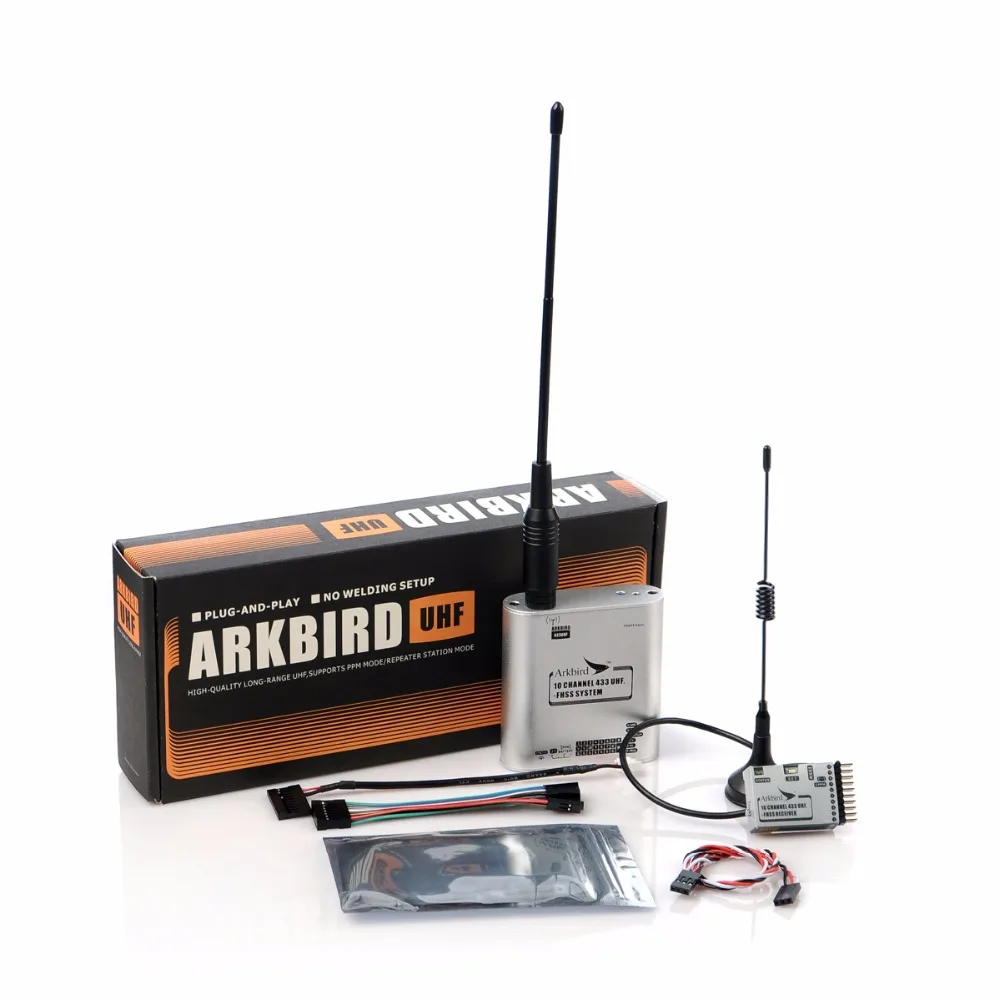

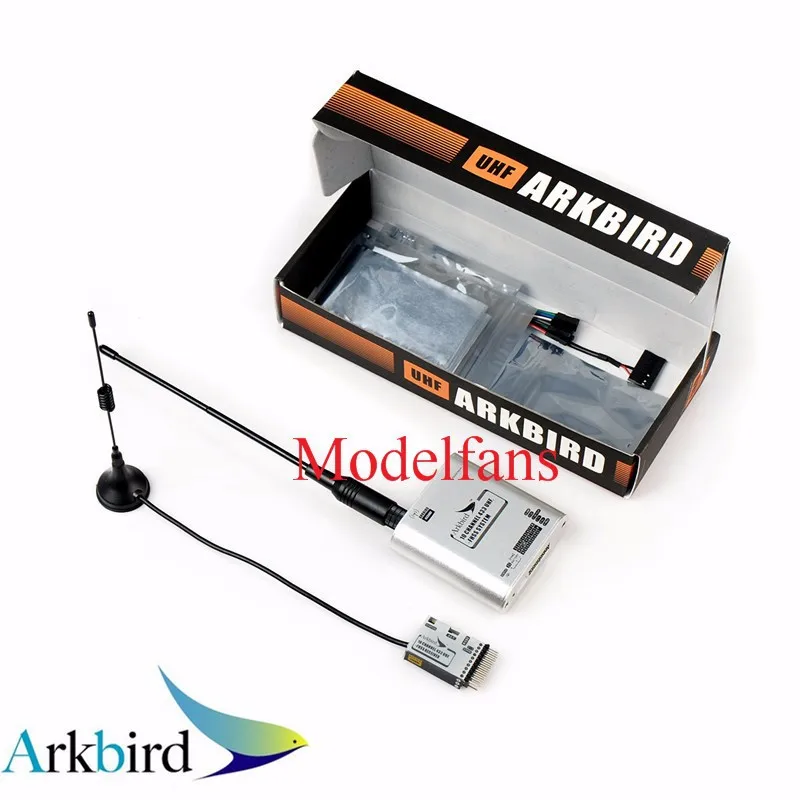

Package Includes:
10 Channel UHF transmitter and antenna
10 Channel UHF receiver and antenna
All necessary hardware
Foil tape for isolation of 2.4GHz interference (For use in repeater station mode)
Поделиться
Цены на Arkbird 433MHz 10 Channel в магазинах
Найдено предложений: 15 (HobbyKing3)
| Магазин | Остаток на складе | Цена лота | Цена доставки | Купон / промокод | Количество в лоте | Цена за единицу |
| HobbyKing | Нет на складе | ₽9231 $116 | 1 | ₽9231 $116 | ||
| HobbyKing | Нет на складе | ₽9231 $116 | 1 | ₽9231 $116 | ||
| HobbyKing | Нет на складе | ₽9231 $116 | + ₽670 $8.45 | 1 | ₽9902 $125 |
