Размер: 158 x 150 x 58mm
Вес: 338гр. без батареи
Частотный диапазон: 2.400GHZ-2.7GHZ
ВЧ модули: CC2500, CYRF6936, A7105, NRF2401
Максимальная мощность: maximum 22dbm (около 150mw, можно изменять мощность на некоторых протоколах)
Усиление антенны: 2db (антенна съемная, можно без проблем заменить на антенну с более высоким усилением или подключить бустер)
Потребление: 88Ma при 8.4V
Напряжение: DC4.5-18V (рекомендуем использовать 2S батарею)
Дистанция:> 2km при 22dbm
Open source firmware: Deviation
Экран: 2.42-inch OLED display, 128 * 64 resolution
Стики: На датчиках Холла
Разъем для сторонних ВЧ модулей: JR/FrSKY, поддерживает Crossfire, и любые модули с подобным типом разъема
Тренерский порт: 3.5mm standard ppm output
USB output

Поддерживает протоколы:

* Walkera full range
* DSM2/X full range
* Flysky and Flysky 2A
* FrSKY
* FUTABA s-fhss full range
* WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)
Uses open source software with continued support and development, adding new protocols regularly.

Инструкция

Jumper T8SG V2.0 Plus Hall Gimbal Multi-protocol Advanced 2.7" OLED Transmitter for Flysky Frsky

The Jumper T8SG And T8SG+ Multi-Protocol radio features a compact size and a host of protocol options all built in to one product. Four individual RF Chip modules are all integrated with the main internal RF Module. Various protocols can be quickly and easily selected from the model menu allowing you to bind the radio to just about any major protocol in today’s market. An external module bay allows for additional proprietary protocol use for Long range flyers.

The T8SG+ Version also features, back lit OLED display, smooth Hall Sensor gimbals for an enhanced user experience.

The T8SG series are a truly portable Hobby grade solution for all your models without compromising on that real radio feel and functionality. Control all your favorite RC items from one radio and have more space for models!

New Carbon Special Edition, click here

Description:
Brand: Jumper

Item No.: T8SG V2.0 Plus

Size: 158 x 150 x 58mm

Weight: 338g (without battery)

Transmission frequency: 2.400GHZ-2.7GHZ

Transmitter Module: Four in One High Frequency Module (CC2500 CYRF6936 A7105 NRF2401)

Transmit power: maximum 22dbm (transmit power adjustable)

Antenna gain: 2db (detachable antenna, easy modification)

Working current: 88Ma@8.4V

Working voltage: DC4.5-DC18V (factory with 4 x AA battery box, lithium battery recommended 2s balanced head line, batteries not included)

Remote control distance:> 2km @ 22dbm

Open source firmware:

Number of channels: up to 12 channels (depending on the receiver)

Display: 2.42-inch OLED display, 128 * 64 resolution

Rocker way: non-contact 3D space vector Hall joystick

JR/FrSKY compatible module bay on rear side

Upgrade method: USB online upgrade

Support Protocols:

* Walkera full range

* DSM2/X full range

* Flysky and Flysky 2A

* FrSKY

* FUTABA s-fhss full range

* WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)

Uses open source software with continued support and development, adding new protocols regularly.

Simulator mode: 3.5mm standard ppm output

USB output.

Features:

* Built in four-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401).

* Open source multi-protocol firmware, compatible with most mainstream remote controls

* Non-contact 3D space vector Hall remote sensing Gimbals (T8SG Plus Only).

* T8SG Plus 2.42 inch OLED display, Bright display works even in direct sunlight.

* JR/FrSKY compatible module bay on rear side.

* USB online firmware upgrade.

* Transmission power adjustable to adapt to different location requirements.

* Detachable antenna, easy to change.

* Ultra-low power consumption, longer battery life.

* Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable.

* Wide voltage input (2s lipo recommended).

* Multilingual menu.

* Vibration reminder function.

* Support telemetry (depending on the receiver).

* Carry Case included.

T8SG Plus improvements:

1.) All new tooling design gives a unique appearance and ergonomic feel.

2.) Two addition top switches added.

3.) Improved switch quality on all switches for better reliability and quality feel.

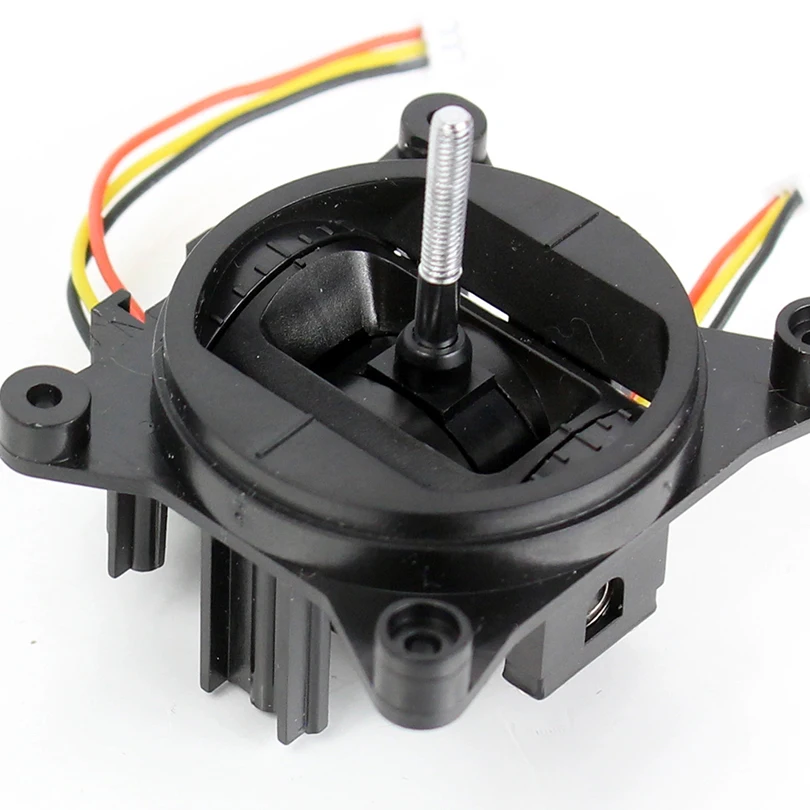

4.) All new HALL SENSOR Gimbal design gives finer accuracy and crisp response.

5.) JR module bay added for third party RF Modules

6.) Front dials changed to Side scroll wheels for improved usability.

7.) External USB port for added convenience.

8.) 2.7” Backlit OLED Display

8.) Added AA Battery box for easy battery installation (2s Lipo optional)

9.) Improved on off switch with dual LED Status indicators.

10.) Improved shipping box, high strength with high end appearance.

11.) Quick start guide included.
12.) Technical Conformity mark.

Jumper T8SG V2.0 Plus Hall Gimbal Multi-protocol Advanced 2.7 OLED Transmitter for Flysky Frsky

RF Chip Data

Package included:
1x Jumper T8SG V2.0 Plus Transmitter

1x Carry case
