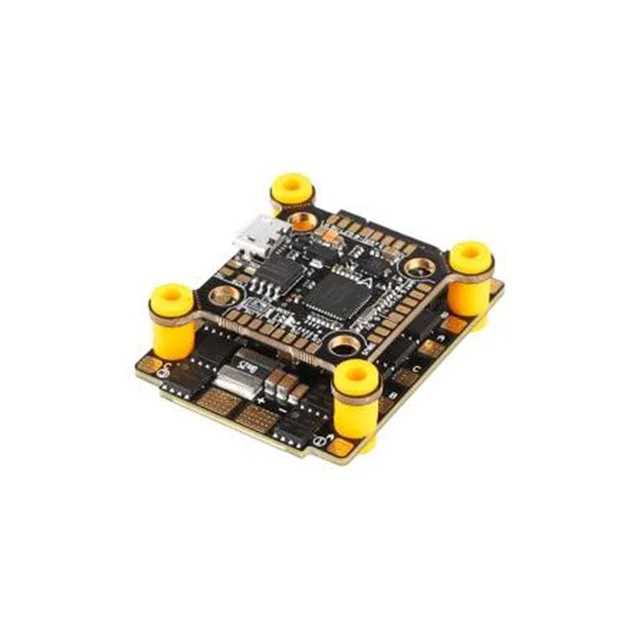

iFlight SucceX-E Mini F4 + 35A 6S ESC

SucceX-E Mini F4 Specifications:

-MCU: 168MHz STM32F405

-Gyro: MPU6000

-Blackbox: 8MB

-Betaflight OSD: YES

-BEC: 5V 2.5A

-Uarts: 5

-ESC Telemetry: yes

-INA Pad: nuart2

-Input voltage: 2-6S,MAX 8S

-Firmware: betaflight_4.0.5_BETAFLIGHTF4.hex

-Size:27*27mm /20*20mm φ3 mounting

- Weight: 4g

Physical

- Mounting hole: 20*20mm, φ3mm

-Size: 27*27mm


SucceX-E mini 35A 4in1 ESC Specification:

- Dimension: 31*30mm

- Mounting Holes: 20*20mm/Φ3mm

- Weight: 6.9g

- Supports 2-6S Lipo input

- 35A per channel, 40A burst

- Current sensor: YES

- BEC: NO

- Telemetry: NO

- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

- Target: G-H-30 BLS 16.7

-BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file

Package included:

-1pc x SucceX-E mini F4 Flight controller

-1pc x SucceX-E mini 35A 4in1 ESC
