Tarot X8-II TL8X000-PRO
Коптеры → Рамы коптеров → Tarot X8-II TL8X000-PRO

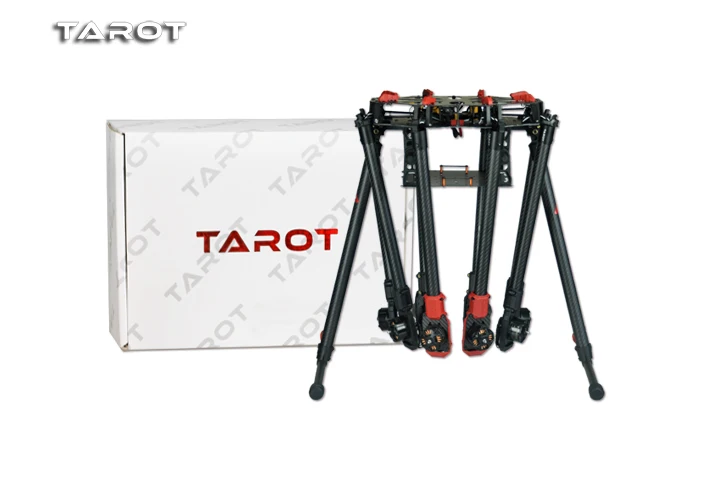

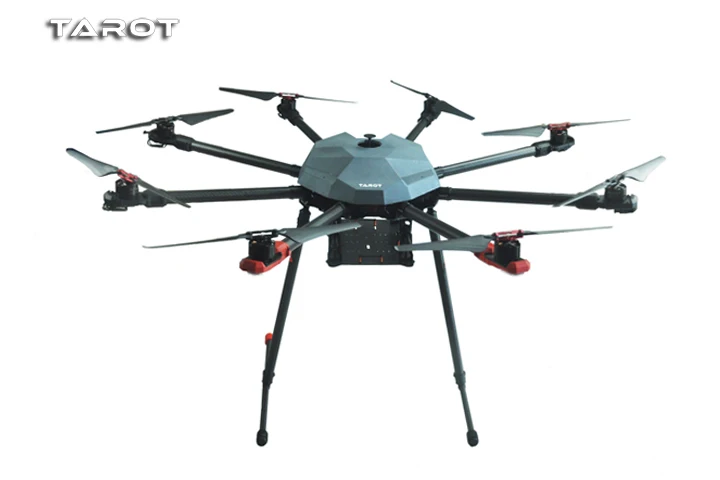

Tarot X8-II aerial photography aircraft TL8X000-PRO mutilcopter carbon fiber Frame kit
Product manual:

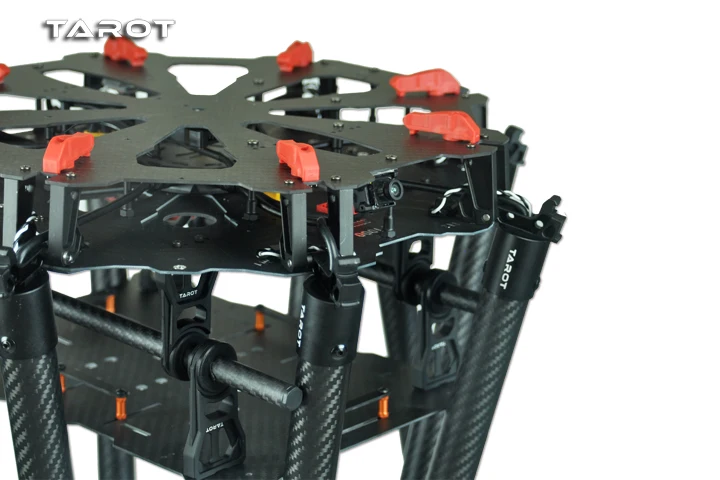

The TAROT X8-II multi-axis aircraft is a new generation version of the fuselage optimization based on the first generation X8. It is also a multi-axis flight carrier designed for professional aerial photography users. Folding tripod, umbrella folding arm, integrated PCB board make power, ESC and other connections faster and safer, providing sufficient installation space for various flight control systems.
The 8 rotors provide sufficient power to ensure that the aircraft is in a steady state even if one of the shafts stops working unexpectedly. The overall weight is light and easy to carry. The idle hover is valid for 31 minutes.
Product parameters:
Symmetrical motor wheelbase: 1125MM
Folding paddle specifications: 16 inches
Arm length (arm to motor center): 395MM
Arm weight (arm and motor base): 122G
Center plate diameter: 335MM
Landing gear clearance height: 490MM
Battery specifications: 25C, 22.2V, 22000MHA
6S brushless ESC: 40A
No-load hover time: 31MIN (21.0V remaining battery power)
Working environment temperature: -10 ° C ~ 40 ° C
Net weight: 3.42KG
Product specifications & Package list:

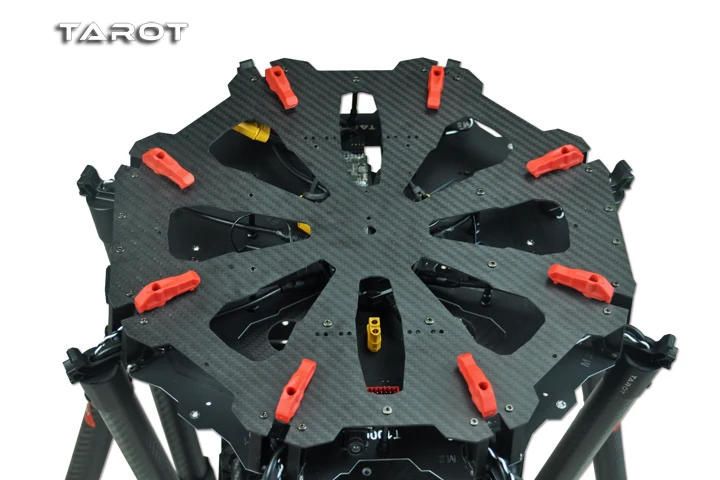

Center integrated disk ×1
Single arm (Φ25×355MM)×8
Motor base TL96027 × 8
Electric retractable tripod (Φ25×425MM)×2
Tripod drive TL8X002-02 ×1
Battery board (275 × 190 × 1.6MM) × 1
Material package ×6
Instruction manual ×1
Related accessories reference number (purchased separately):

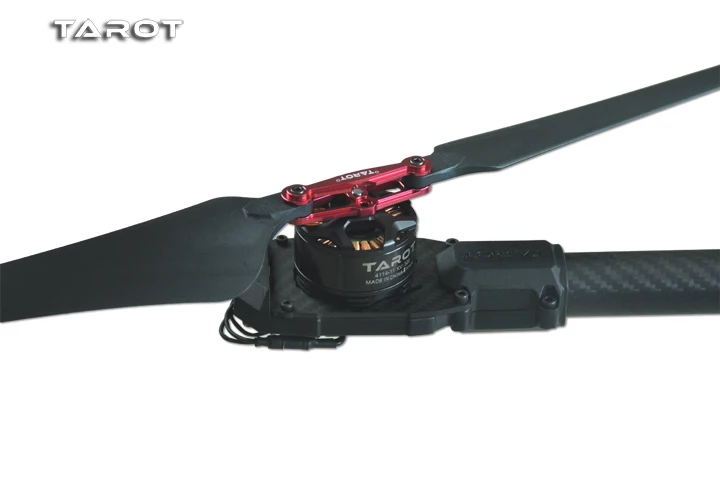

Rotor specifications: 1655 high efficiency folding paddle set TL100D07
Brushless motor: 4114/320KV multi-axis brushless motor TL100B08
Brushless ESC: hobbyWing Haoying 40A TL292
Battery specifications: 25C, 22.2V, 22000MHA
X series carbon fiber hood TL8X008
The TAROT X8-II multi-axis aircraft is a new generation version of the fuselage optimization based on the first generation X8. It is also a multi-axis flight carrier designed for professional aerial photography users. Folding tripod, umbrella folding arm, integrated PCB board make power, ESC and other connections faster and safer, providing sufficient installation space for various flight control systems.
The 8 rotors provide sufficient power to ensure that the aircraft is in a steady state even if one of the shafts stops working unexpectedly. The overall weight is light and easy to carry. The idle hover is valid for 31 minutes.
Product parameters:
Symmetrical motor wheelbase: 1125MM
Folding paddle specifications: 16 inches
Arm length (arm to motor center): 395MM
Arm weight (arm and motor base): 122G
Center plate diameter: 335MM
Landing gear clearance height: 490MM
Battery specifications: 25C, 22.2V, 22000MHA
6S brushless ESC: 40A
No-load hover time: 31MIN (21.0V remaining battery power)
Working environment temperature: -10 ° C ~ 40 ° C
Net weight: 3.42KG
Product specifications & Package list:
Center integrated disk ×1
Single arm (Φ25×355MM)×8
Motor base TL96027 × 8
Electric retractable tripod (Φ25×425MM)×2
Tripod drive TL8X002-02 ×1
Battery board (275 × 190 × 1.6MM) × 1
Material package ×6
Instruction manual ×1
Related accessories reference number (purchased separately):
Rotor specifications: 1655 high efficiency folding paddle set TL100D07
Brushless motor: 4114/320KV multi-axis brushless motor TL100B08
Brushless ESC: hobbyWing Haoying 40A TL292
Battery specifications: 25C, 22.2V, 22000MHA
X series carbon fiber hood TL8X008
