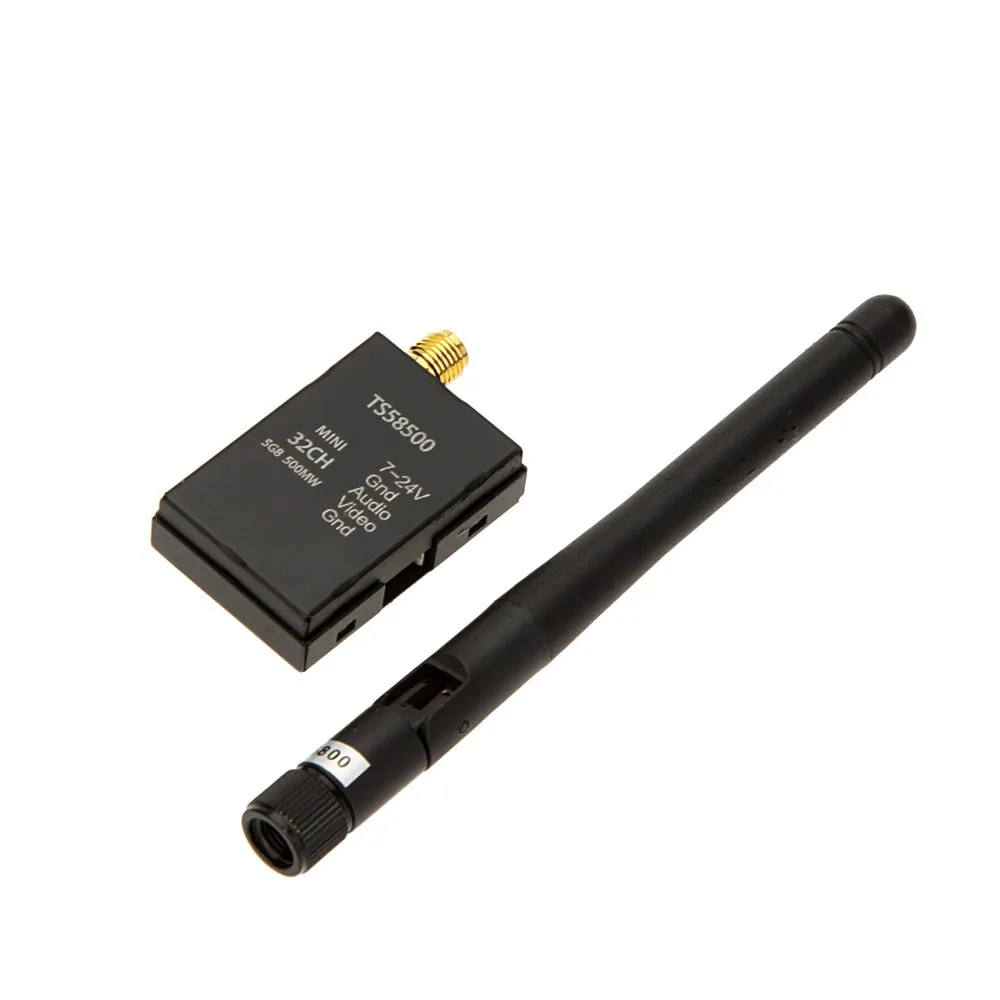

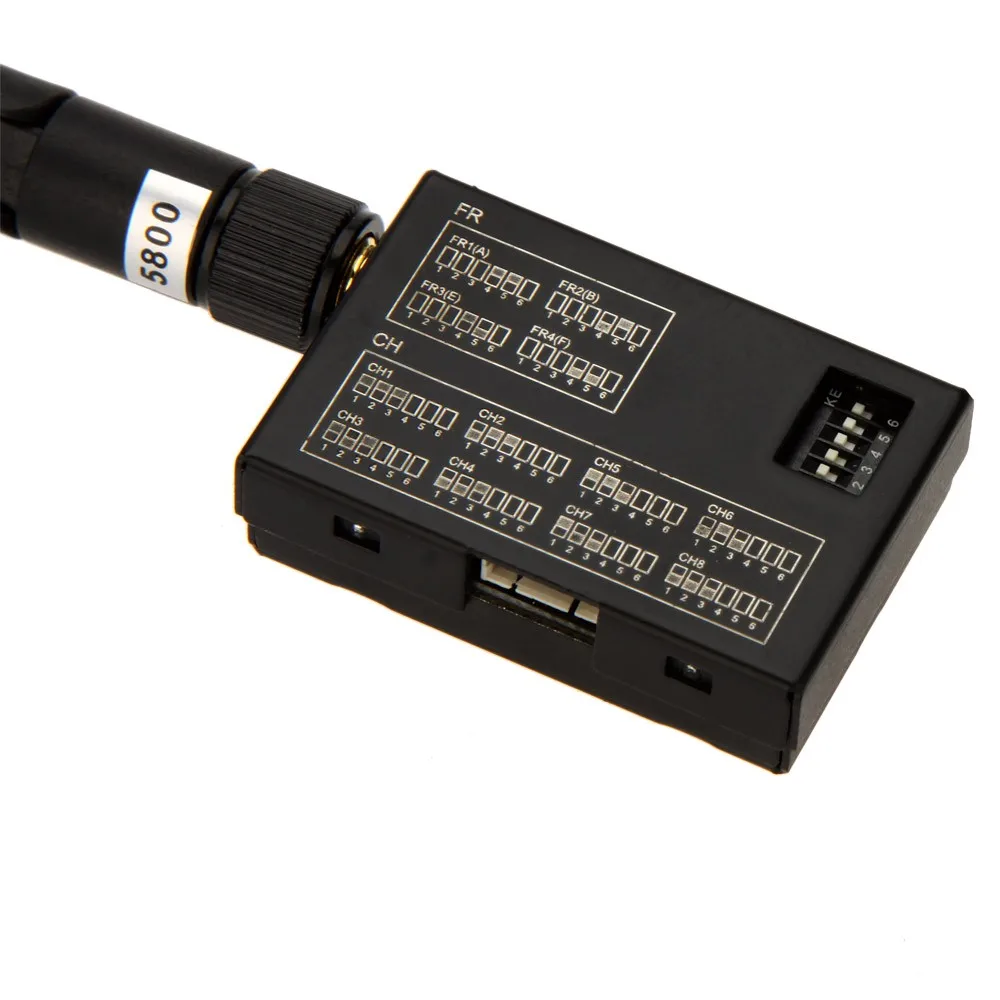

The SkyZone TS58500 transmitter packs 500mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS58500 is transmitting a full range of 32 channels and only weighs 19g. It\'s perfect for a wide range of aircraft, especially smaller models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350, Bix 3 and more! The Tx even comes with a direct GoPro to TX cable for Plug-N-Play connect ability, and of course the standard A/V cable.

Features:

Micro sized and light weight - perfect for use with small models.

32 channels: Cover A, B, E bands and F bands.

Transmitter frequency: 5645-5945MHz with 500mW power output.

Included GoPro plug and play cable.

Specifications:

Brand Name: Skyzone

Item Name: Transmitter Module

Item NO.: TS58500

Modulate: Wideband FM Modulate

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Output Power: 26-27dBm

Channel: 32CH

Operating Voltage: 7V-24V

Supply Current: 220mA

Operating Temperature: -10~85?

Video Band Width: 0~8.0 MHz

Audio Carrier Frequency: 6.5 MHz

Video Input Level: 0.8~1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 0.5~2.0 Vp-p

Audio Input Impedance: 10K Ohm

Antenna Connector: RP-SMA Male(Inner hole)

Dimension: 42mm * 23mm * 8mm

Package size: 9 * 5 * 2cm / 3.5 * 2 * 0.8in

Package weight: 44g / 1.6oz

Package list:

1 * Skyzone Mini TS58500 5.8G 500mW 32CH AV Transmitter Module

1 * Gopro USB to A/V cable (for using GoPRO as A/V input)

1 * Standard wire lead
