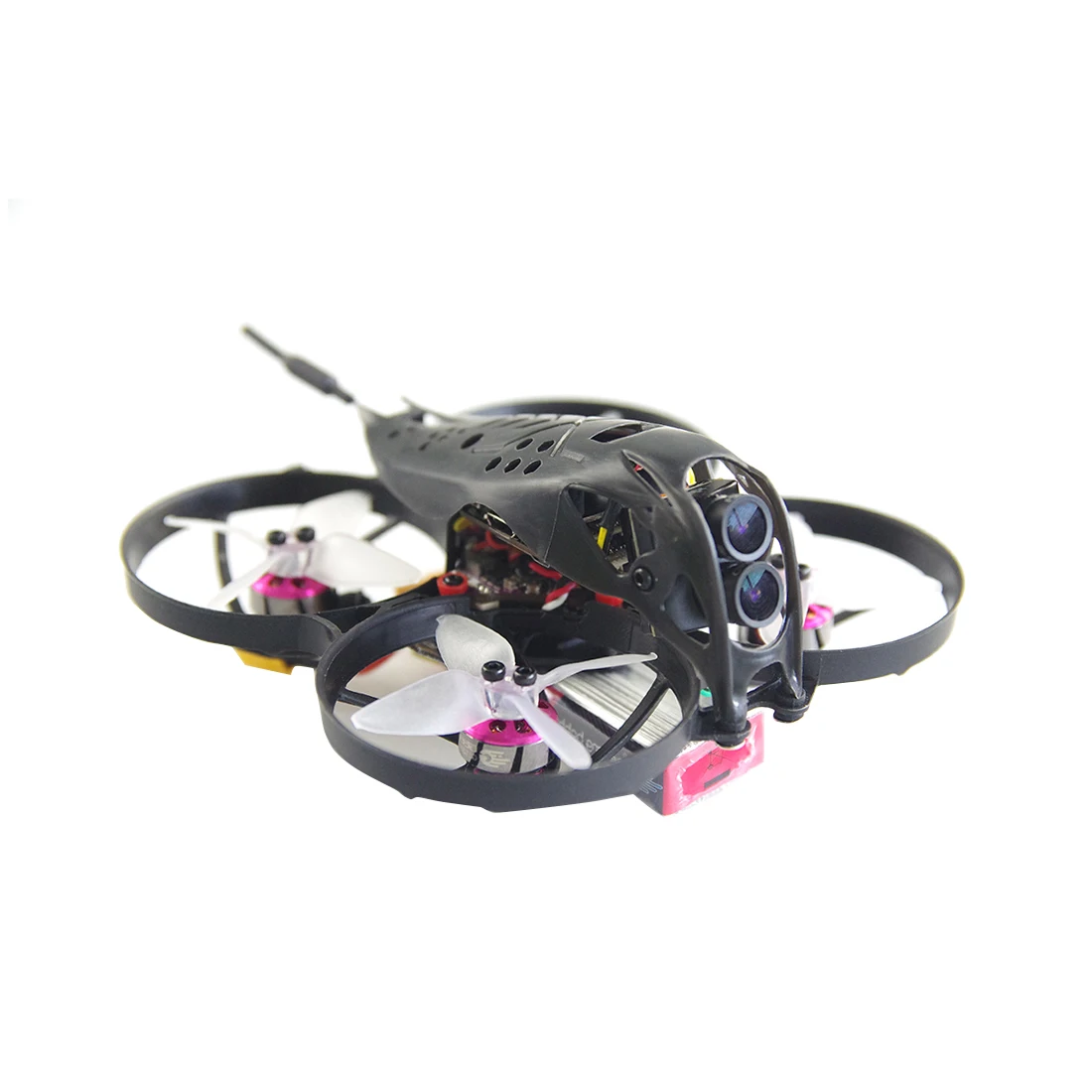

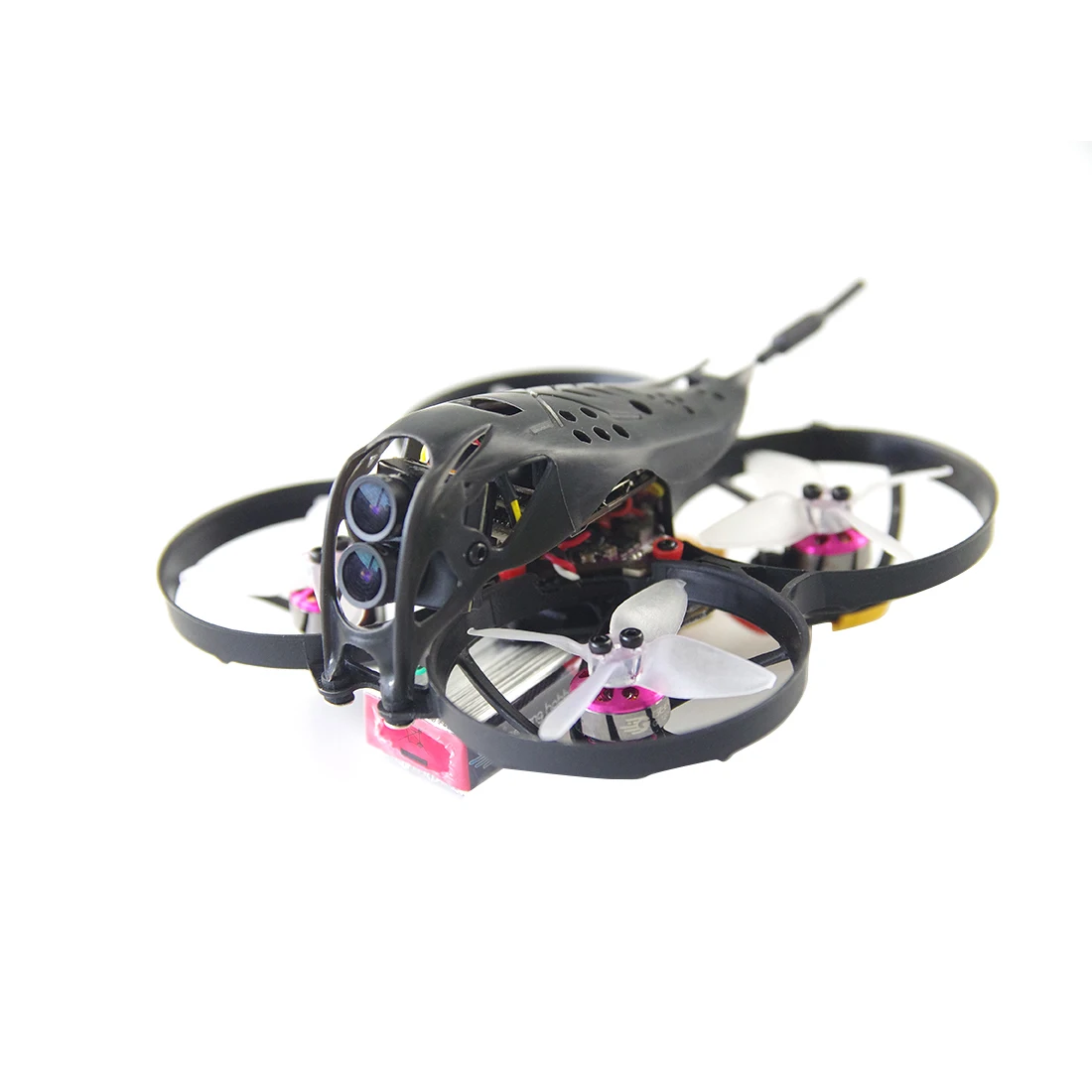

JMT UFO-85X 85mm 4K + T8S

Specifications
Item Name：X UFO-85X 4K Cinewwhoop
Wheelbase：85mm
Size：118mm * 118mm * 56mm
Weight：79.2.g （without battery）
Weight：112.2g（with Original 4s 260mah Lipo battery）
Weight：130.7g（Extended use 4s 450mah lipo battery）

Spare parts specifications：
Motor Mode：GL1204 KV5000
Stator specifications：D12 * H4 0.2mm Kawasaki
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm
Magent specifications: N52H
Shift specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
Winding Specifications: 200℃ Class Multiple oxygen-free copper Weight(g):5.8g
No.of Cells(Lipo)：3S-4S


Flight controller：supra f4
Version:MATEKF411 4.0.2(4.0.3)
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size:28.5 * 28.5MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 12A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 480
Built-in 5V 2A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 12A continuous peak 13A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

External receiver matching:
PNP NO RX：No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

VTX Output power：25~200mw switchable
Frequency：40CH
Input voltage: 3.2V- 5.2V
Current consumption: 320mA(type)
Power switching: third gear(25MW 、 100MW 、200MW)
Antenna: RG178s antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight:2g

CADDX Tarsier Image sensor: Sony sensor 12M, 1/1.8inch, 1/2.9inch
Horizontal: 1200TVL
TV system: NTSC/PAL changeable
Video Resolution: 4K/30FPS 16:9
2.7K / 60FPS 4：3 ，16:9
1440P / 60FPS，30FPS 4：3
1080P / 90FPS，60FPS，30FPS 16：9
720P / 120FPS 16：9
Power Input: DC 5-12V
FOV：4K F2.8,150 °（16：9）165°（4：3）
Weight:18g
Dimension: Camera 19x20mm / DVR 29x29mm
Dimension: Camera F2.8 / 12Mega
Audio: Dual Digital MIC
CPU: DUAL Core dual system

Lipo Battery Capacity:260mAh
Voltage:15.2v
Continuous Discharge Rate：40C
Instantaneous discharge rate：80C
Size：52mm x25mmx11mm
Weight：31g
Connector：XT30

Features:
with Beta85X 4KSame level 4KRacing drone,Sturdy and lighter construction。
Newly adopted 1204motor More efficient, feel better, more delicate。
brand new supra F4 Flight controller 2-4s Lipo compatible，Powerful and smoothly。
Side effects RGB led Dual light bar compatible with flight control adjustable play mode
Caddx Tarsier 4K Camera & DVR ready
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Flight controllers are more flexible with an external receiver combination

NO RX Version supports players to freely match the receiver。
compatible 3s-4s Lipo / LIHV


Package Included：
1 x 85X mm Frame
1 x supra f4
4 x 1204 5000KV Motor
1 x 2 Inch propeller（4cw + 4ccw）
1 x Caddx Tarsier 4K Camera
1 x 5.8G 40ch 25mw~ 200mw VTX
1 x 4S 15.2v 260mah 40C / 80CBattery
1 x Propeller disassemble tool
1 x screwdriver
1 x ND8 Filter on the camera
1 x usb Data line
1 x Battery fixing elastic band

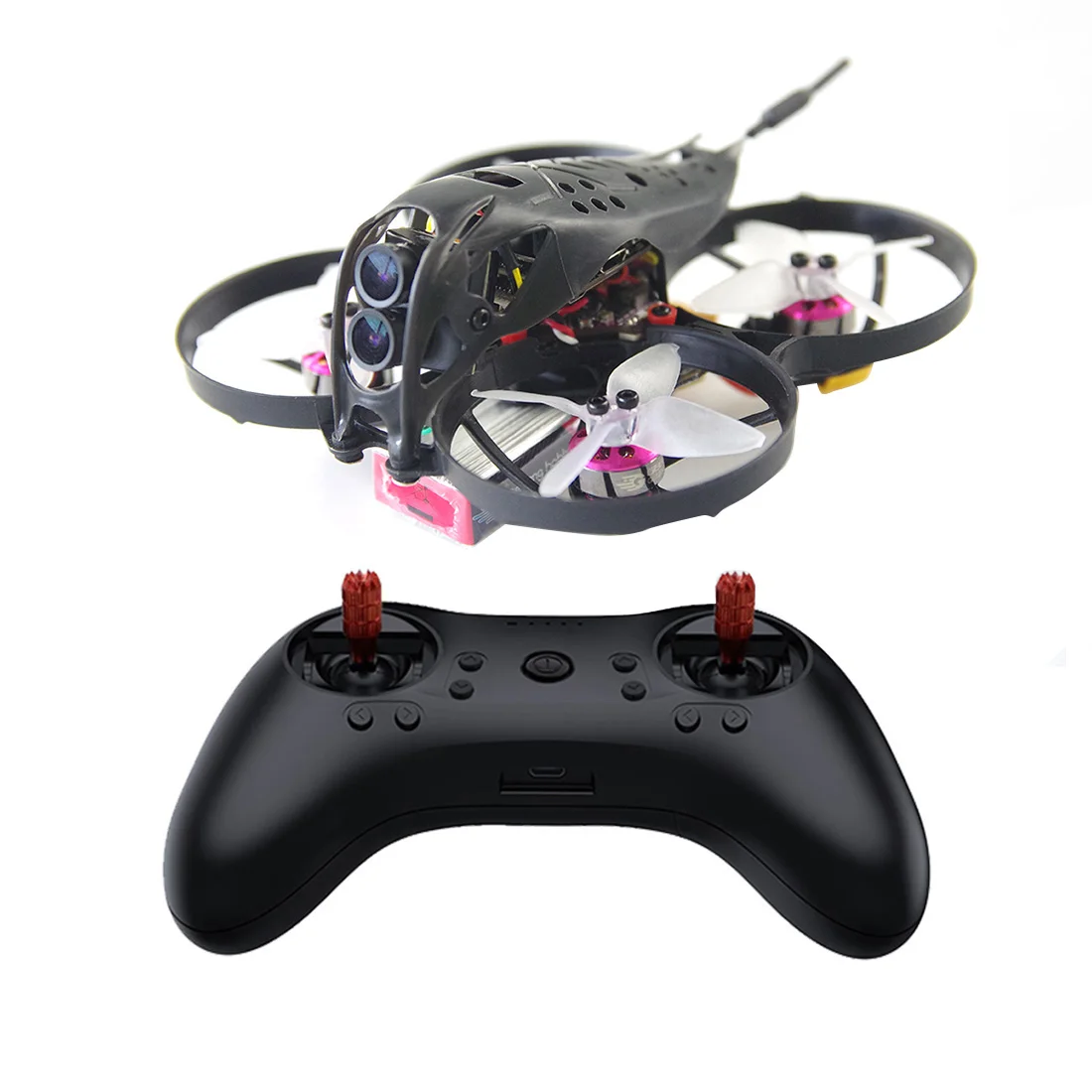

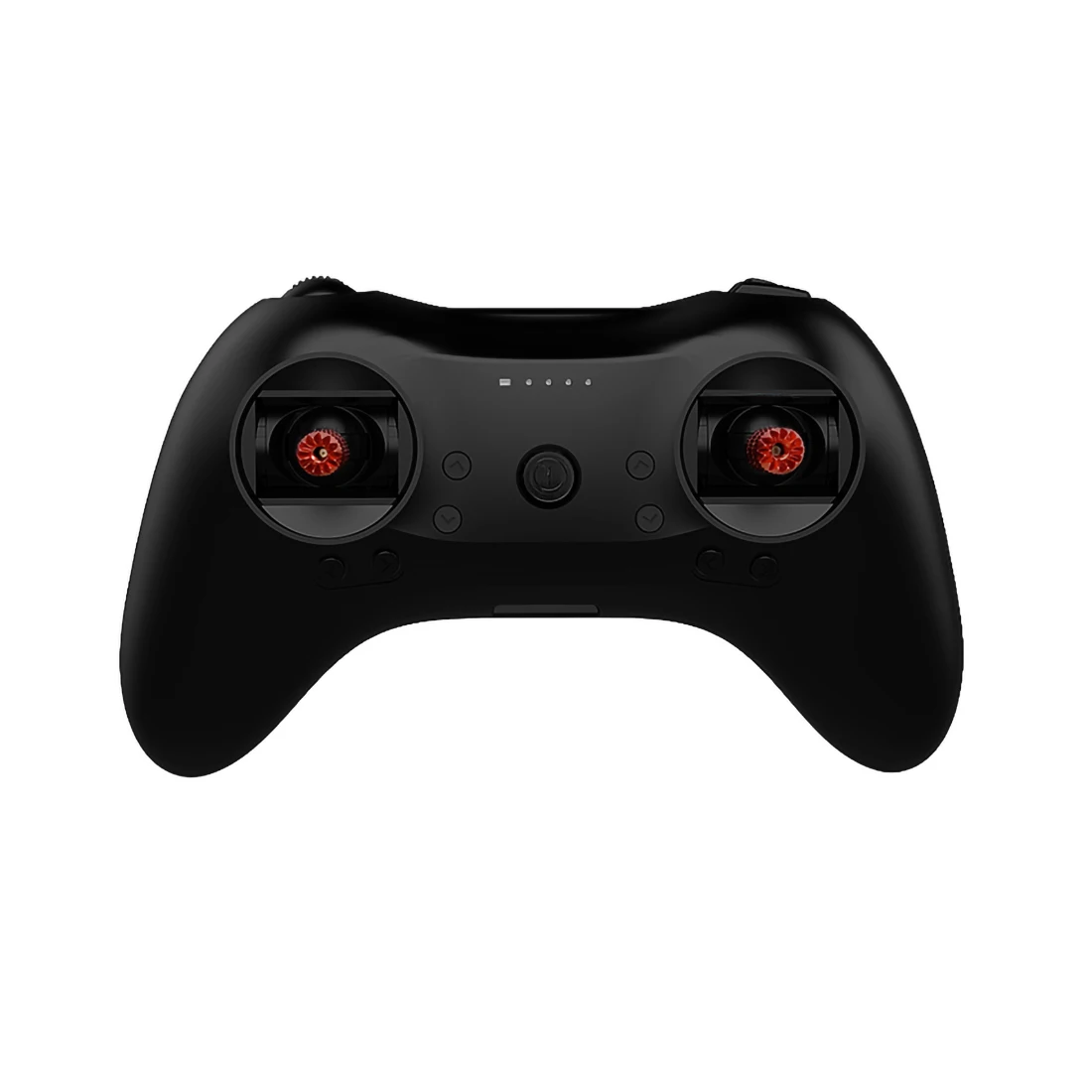

1 x Radiolink T8S Remote Controller
